DDR3
Non-ECC Unbuffered Memory
DDR3 UDIMM VLP
Features
- Very low profile specialized for use in 1U system
- Fully tested and optimized for stability and performance
- Uses original IC to meet strict industrial standards
- JEDEC standard 1.5V (1.425V ~ 1.575V) & 1.35V (1.28V ~ 1.45V)
- Operating Environment: 0°C ~ 85°C
- RoHS Compliance
- CE / FCC Certification
DDR3 UDIMM VLP is a memory module that offers a very low-profile design, and it is fully compatible with 1U server applications and other small-scale devices. The modules comply with all relevant JEDEC standards and are available in 2GB, 4GB, and 8GB capacities and with data transfer rates of 1066MT/s, 1333MT/s, 1600MT/s, and 1866MT/s.
VLP modules are specialized for use in 1U systems, such as blade server data centers, where system height is lower than 1.18 inches. The design of these modules improves airflow inside the system and reduces thermal impact.
PROVEN RELIABILITY THROUGH 3rd PARTY TESTING
Ensuring the durability and reliability of components is essential for meeting the demands of challenging environments. Our solutions undergo rigorous third-party testing, adhering to stringent industry standards. These tests validate the robustness of our products under extreme conditions, ensuring dependable performance across various applications.
| Package Drop Test | Drop Height 76 cm, ISTA-1A |
| Thermal Shock | -40°C ~ 110°C, 500 Cycles |
TAILORED TO YOUR SPECIFIC NEEDS
SIDE FILL
Side Fill reinforces the connection between chips and the board, providing superior protection in environments with high vibration or mechanical stress.
CONFORMAL COATING
Conformal Coating applies a protective acrylic layer over the DRAM PCB, shielding it from harmful elements such as moisture, dust, and corrosive substances.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

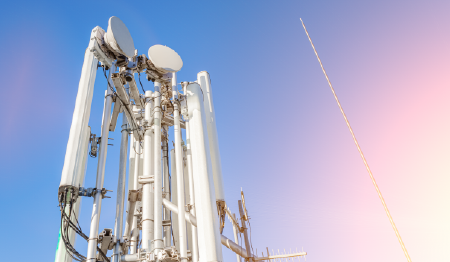

COMMUNICATION
Our solutions ensure reliable and uninterrupted performance, supporting networking and critical telecom infrastructure even under heavy loads.
規格表
| Model Name | DDR3 UDIMM VLP |
|---|---|
| DDR Generation | DDR3 Memory |
| DIMM Type | UDIMM VLP |
| Speed | 1066 MT/s, 1333 MT/s, 1600 MT/s, 1866 MT/s |
| Density | 2GB, 4GB, 8GB |
| Function | Non-ECC Unbuffered Memory |
| Pin Number | 240pin |
| Bus Width | x64 |
| Voltage | 1.35V, 1.5V |
| PCB Height | 0.738 Inches |
| Operating Temperature | 0°C ~ 85°C |
產品料號
P/N | IC Config. | Rank | Temp. | Description |
M3U0-2GMJNCQE | 256M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3 1866 2GB UDIMM VLP |
M3U0-4GMSNCQE | 512M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3 1866 2GB UDIMM VLP |
M3U0-2GMJNLQE | 256M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3L 1600 4GB UDIMM VLP |
M3U0-4GMSNLQE | 512M x 8 | 1R x 8 | 0°C ~ 85°C | DDR3L 1600 4GB UDIMM VLP |
*Please contact Innodisk for products with other speeds.
