USB 2.0
USB 2.0 2MP Fixed Focus Camera Module
EV2U-LOM1-RHCF
Features
- USB 2.0 interface, max resolution 2MP @30fps
- Lens FOV (D / H / V) : 96° / 88° / 57°
- Dynamic Range: 120dB
- Supports HDR, External Trigger, and Integrated Image Signal Processor (ISP)
- Compliant to USB 2.0 and USB Video Class
- Complies with CE / FCC Class A
- OS Support : Windows, Linux, Android, macOS (UVC)
Innodisk’s USB 2.0 2MP Fixed Focus Camera Module features a built-in ISP along with HDR and external trigger support, ensuring stable, sharp image quality. It’s ideal for applications such as ATMs, access control systems, and other scenarios where precise image capture timing is critical.
HDR FOR SUPERIOR IMAGE CLARITY
Innodisk's Camera Module features cutting-edge HDR technology, ensuring exceptional image clarity and sharpness even in challenging lighting conditions. By effectively extending the dynamic range, HDR technology captures intricate shadow details and vivid highlights, delivering images with unparalleled realism and natural balance.
EXTERNAL TRIGGER FOR SYNCHRONIZED IMAGING
Equipped with external trigger support, the USB 2.0 2MP Fixed Focus Camera Module enables the host system to precisely control the timing of image capture. Ideal for equipment monitoring, multi-camera synchronization, and other time-sensitive applications.
TAILORED TO YOUR SPECIFIC NEEDS
PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMAGE QUALITY TUNING
With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.
VERSATILE LENS SUPPORT
A wide range of lenses empowers you to capture stunning images in any situation.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
POS, ATM, KIOSK
Provides high-resolution imaging and low-light performance for secure and efficient customer interactions, supported across multiple operating systems.
SMART PARKING METER
Delivers wide-angle, clear video capture even in low-light conditions, enabling accurate vehicle detection and monitoring.
ESPECIFICACIONES
| Model Name | EV2U-LOM1-RHCF |
|---|---|
| Module Type | USB 2.0 2MP Fixed Focus Camera Module |
| Resolution (Max.) | 2MP |
| Frame Rate (Max. Resolution) | 30fps |
| Output I/F | USB 2.0 |
| Sensor | onsemi AR0246 |
| Shutter | Rolling |
| Video Format | YUV422, MJPEG |
| Power Consumption | Approximate 1W (MJPEG @Max. Resolution ) |
| Operating Temperature | 0°C ~ 70°C |
| Sensor Size | 1/4” |
| Pixel Size | 2.0µm |
| Chroma Type | Color |
| Lens Type | Fixed Focus (M12) |
| Dimensions (W x L x H/mm) | 38 x 38 x 21.88 32 x 32 x 21.88 41.4 x 41.4 x 37.68 (Housing) |
| Lens FOV (D / H / V) | 96° / 88° / 57° |
| OS Support | Windows / Linux / Android / macOS |
| Housing | Board Level, Housing |
| Features | HDR |
| Warranty | 3 Years |
| Note | For detailed resolution and frame rate combined application, please refer to product datasheet. |
INFORMACIÓN DE P/N
| P/N | Description |
| EV2U-LOM1-RHCF-11 | USB 2.0 2MP Fixed Focus Camera Module (USB cable included) Dimension: 38 x 38mm |
| EV2U-LOM1-RHCF-12 | USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included) Dimension : 38 x 38mm |
| EV2U-LOM1-RHCF-A1 | USB 2.0 2MP Fixed Focus Camera Module (USB cable included) Dimension: 32 x 32mm |
| EV2U-LOM1-RHCF-A2 | USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included) Dimension : 32 x 32mm |

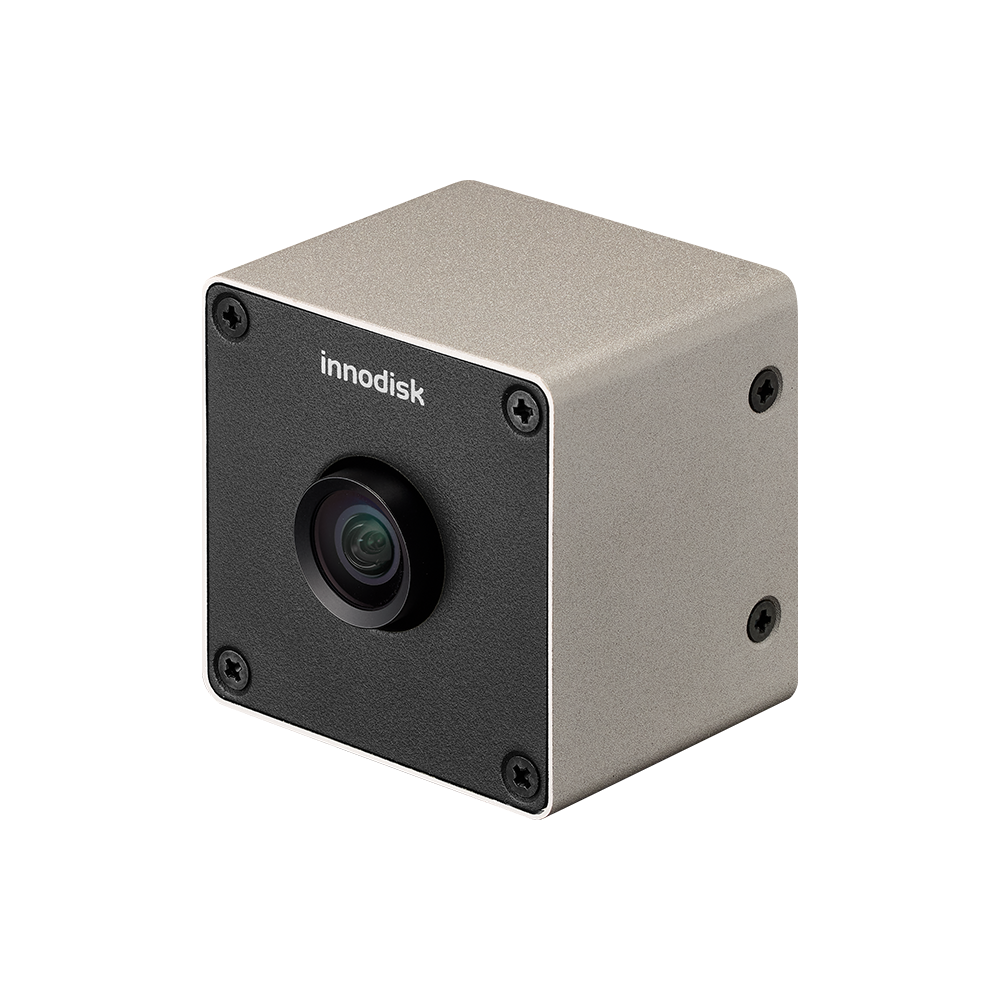

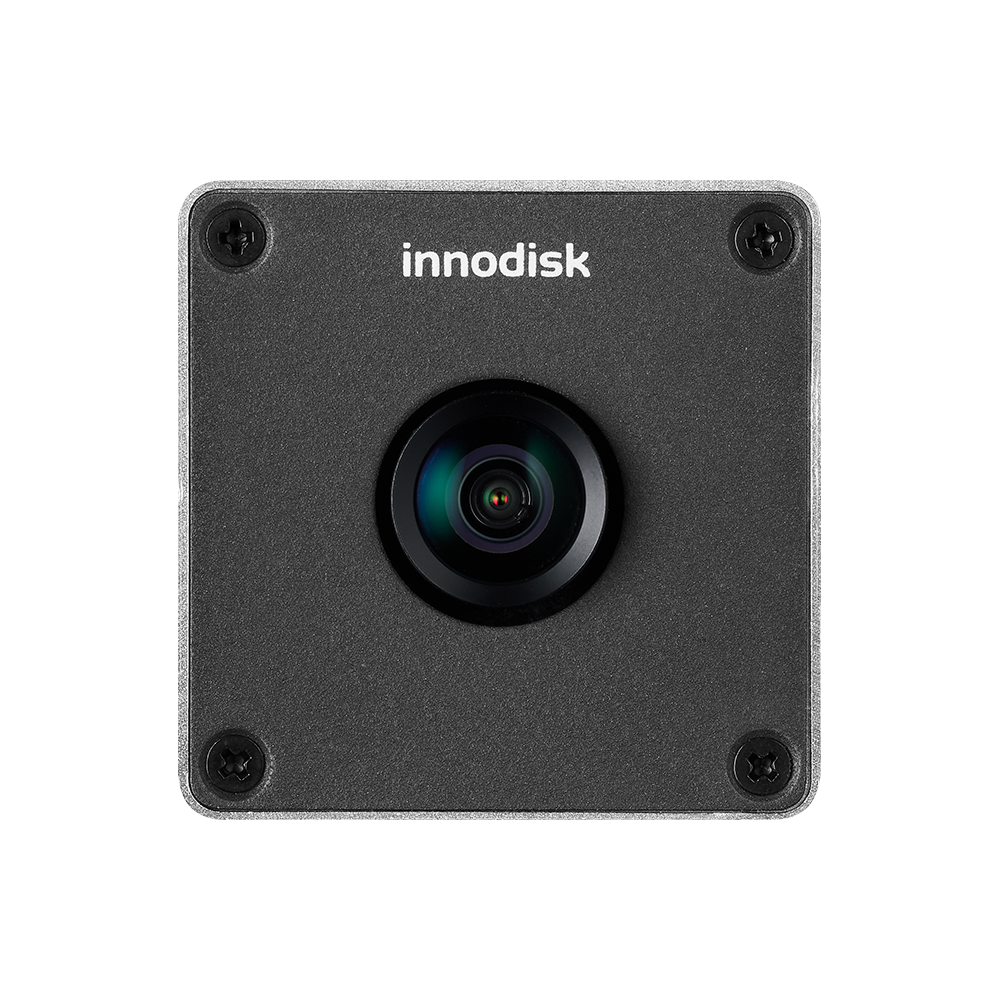

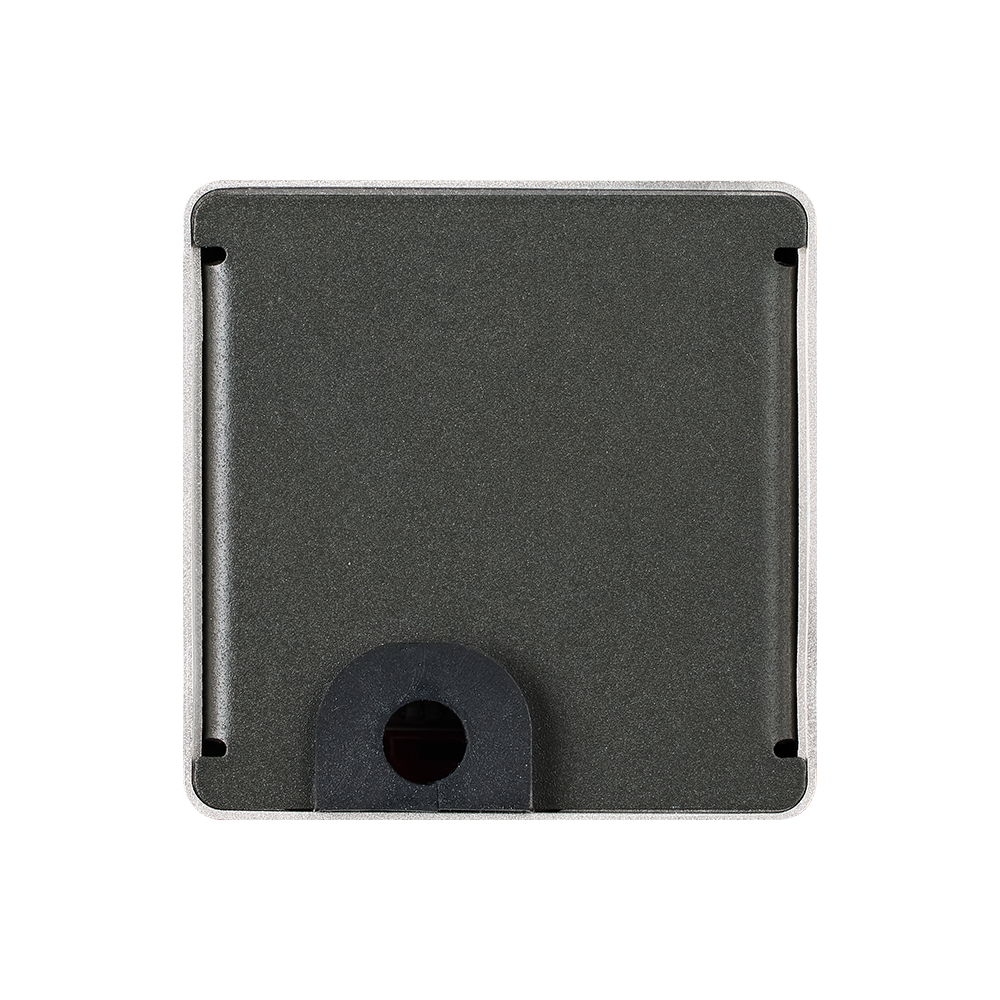

| EV2U-LOM1-RHCF-21 | USB 2.0 2MP Fixed Focus Camera Module, with Housing (USB cable included) Dimension : 41.4 x 41.4mm |
| 7W2000000160 | USB 2.0 cable 1 meter, 5 pins, pitch 1mm |
