USB 2.0

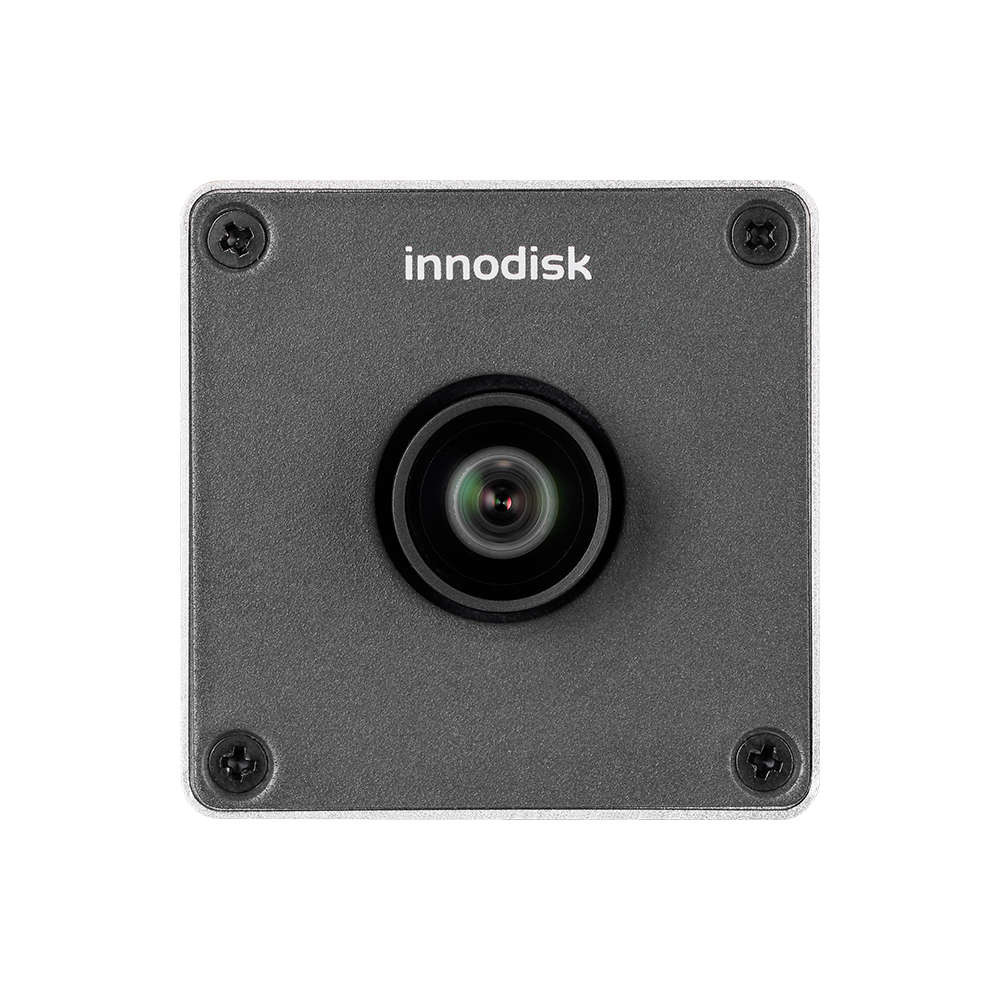

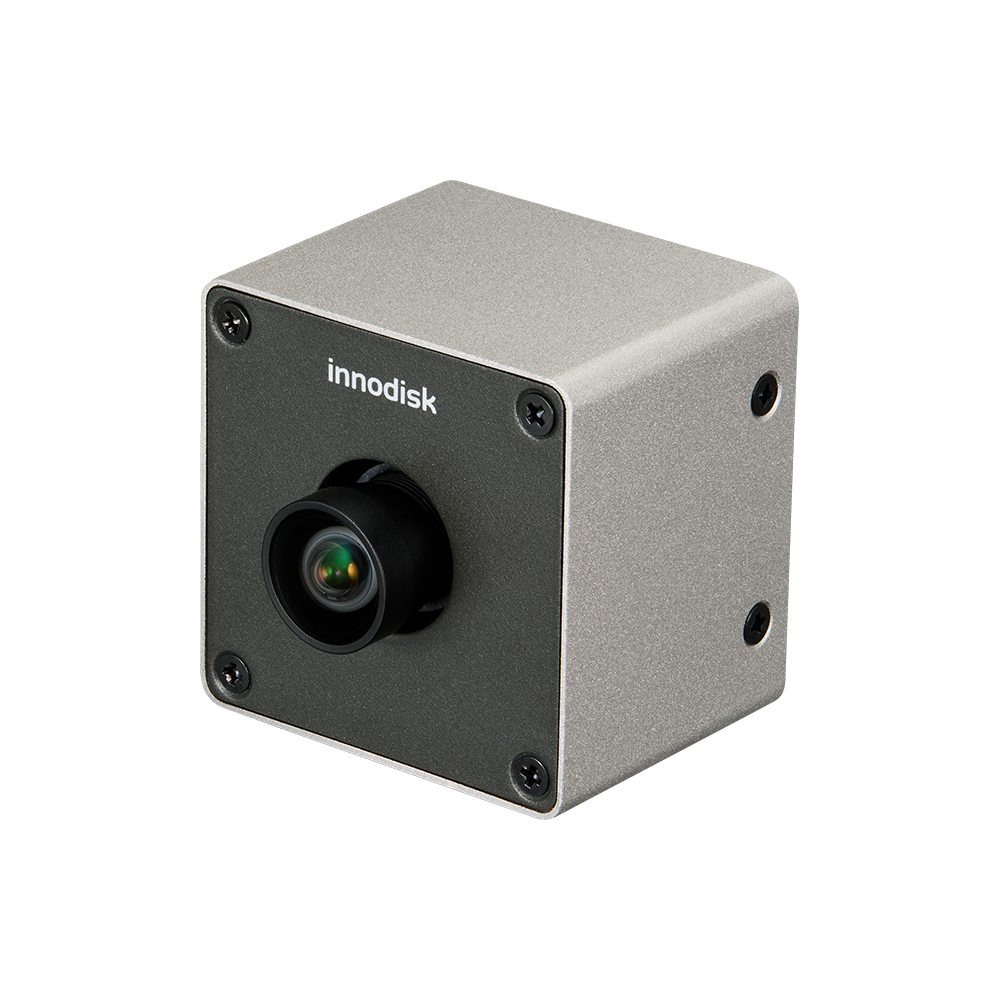

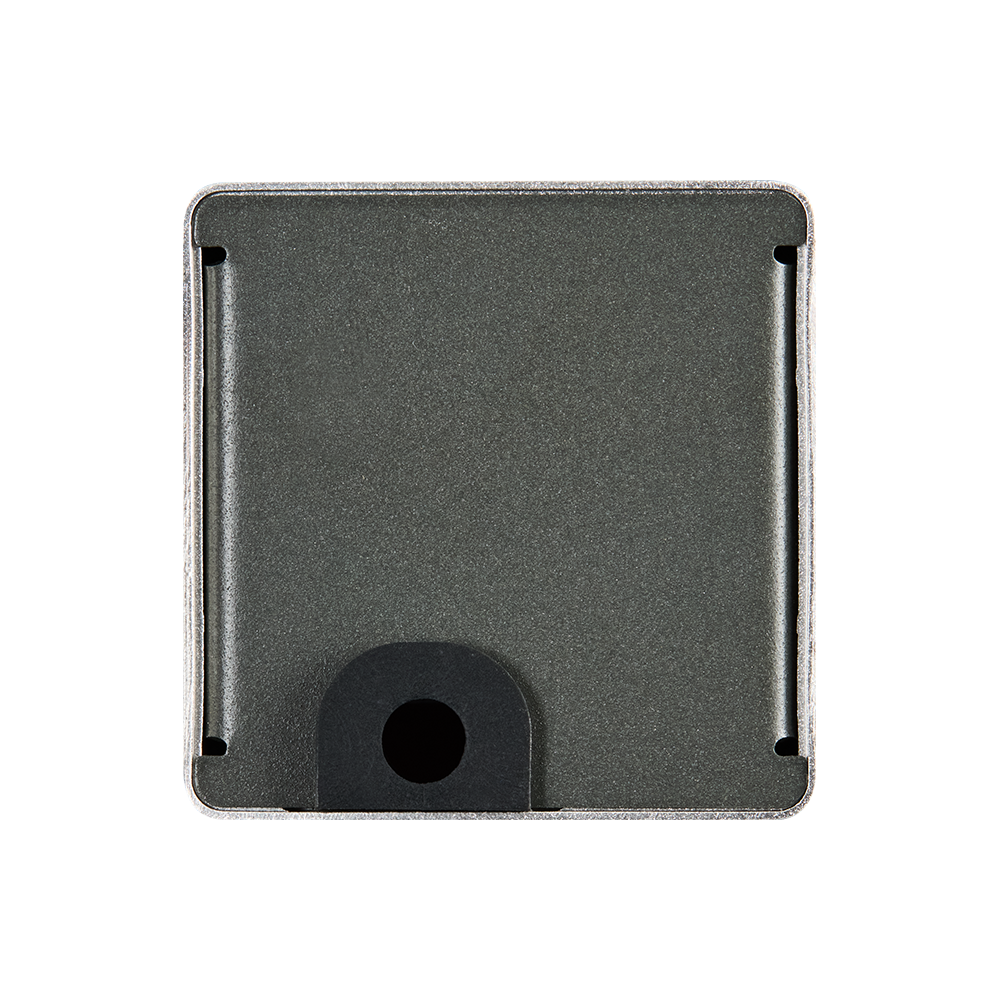

USB 2.0 8MP Fixed Focus Camera Module
EV8U-LSM1-RLCF
Features
- USB 2.0 interface, max resolution 8MP @30fps
- Lens FOV (D / H / V) : 89° / 81° / 51°
- Supports low light condition with Integrated Image Signal Processor (ISP)
- Compliant to USB 2.0 and USB Video Class
- Complies with CE / FCC Class A
- OS Support : Windows, Linux, Android, macOS (UVC)
Innodisk’s 8MP USB 2.0 Camera Module is designed for low-light environments, delivering sharp and detailed images without the need for additional lighting. It’s ideal for smart kiosks operating around the clock, indoor access control with minimal ambient light, and vending machines or interactive displays in dimly lit public areas.
UNMATCHED NIGHT VISION
Innodisk’s camera module captures remarkably clear images even in low-light conditions, ensuring reliable performance in 24/7 surveillance scenarios.
TAILORED TO YOUR SPECIFIC NEEDS
PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMAGE QUALITY TUNING
With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.
VERSATILE LENS SUPPORT
A wide range of lenses empowers you to capture stunning images in any situation.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
POS, ATM, KIOSK
Provides high-resolution imaging and low-light performance for secure and efficient customer interactions, supported across multiple operating systems.
SMART PARKING METER
Delivers wide-angle, clear video capture even in low-light conditions, enabling accurate vehicle detection and monitoring.
ESPECIFICACIONES
| Model Name | EV8U-LSM1-RLCF |
|---|---|
| Module Type | USB 2.0 8MP Fixed Focus Camera Module |
| Resolution (Max.) | 8MP |
| Frame Rate (Max. Resolution) | 30fps |
| Output I/F | USB 2.0 |
| Sensor | Sony IMX415 |
| Shutter | Rolling |
| Video Format | YUV422, MJPEG |
| Power Consumption | Approximate 1W (MJPEG @Max. Resolution ) |
| Operating Temperature | 0°C ~ 70°C |
| Sensor Size | 1/2.8” |
| Pixel Size | 1.45µm |
| Chroma Type | Color |
| Lens Type | Fixed Focus (M12) |
| Dimensions (W x L x H/mm) | 38 x 38 x 28 41.4 x 41.4 x 44.8 (Housing) |
| Lens FOV (D / H / V) | 89° / 81° / 51° |
| OS Support | Windows / Linux / Android / macOS |
| Housing | Board Level, Housing |
| Features | Low light, DMIC |
| Warranty | 3 Years |
| Note | For detailed resolution and frame rate combined application, please refer to product datasheet. |
INFORMACIÓN DE P/N
| P/N | Description |
| EV8U-LSM1-RLCF-11 | USB 2.0 8MP Fixed Focus Camera Module (USB cable included) Dimension : 38 x 38mm |
| EV8U-LSM1-RLCF-12 | USB 2.0 8MP Fixed Focus Camera Module, with DMIC (USB cable included) Dimension : 38 x 38mm |
| EV8U-LSM1-RLCF-21 | USB 2.0 8MP Fixed Focus Camera Module, Housing (USB cable included) Dimension : 41.4 x 41.4mm |
| 7W2000000160 | USB 2.0 cable 1 meter, 5 pins, pitch 1mm |
