LAN
M.2 to Dual GbE SFP Network Module
EGPL-G2F1
Powered by
- Intel i210-IS Ethernet Controller
Features
- Flexible daughter board with cable to fit into different system
- Supports common GbE SFP Optical and direct attached Copper modules
- Supports multi-mode fiber (SX) and single-mode fiber (LX) modules
- With high speed shielding cable and standard PCIe bracket
- Flexible daughter board with cable to fit into different system
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Support wide temperature -40 ~ 85°C

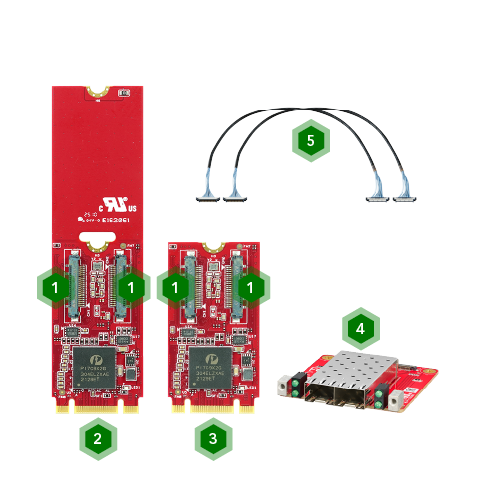

PRODUCT DETAILS AT A GLANCE
- 1LAN Connector
- 2M.2 2280 Form Factor (W1)

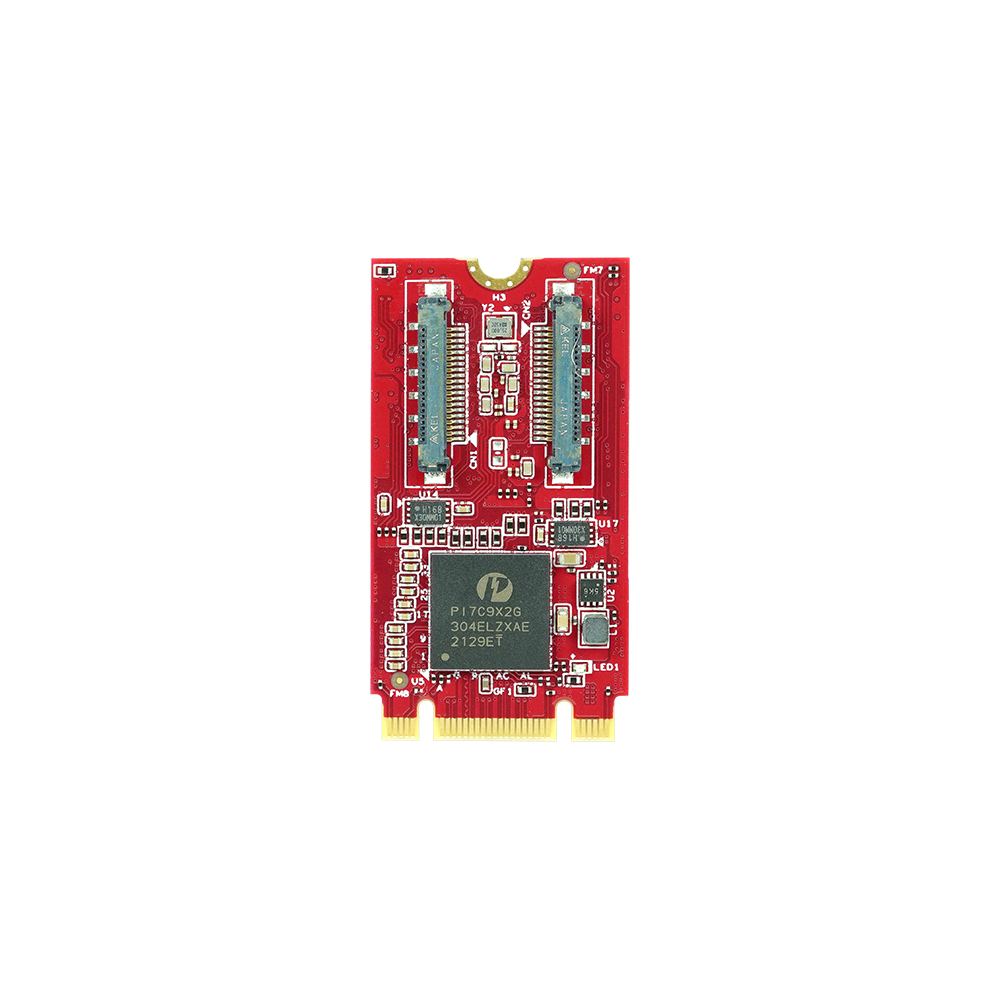

- 3M.2 2242 Form Factor (W2)

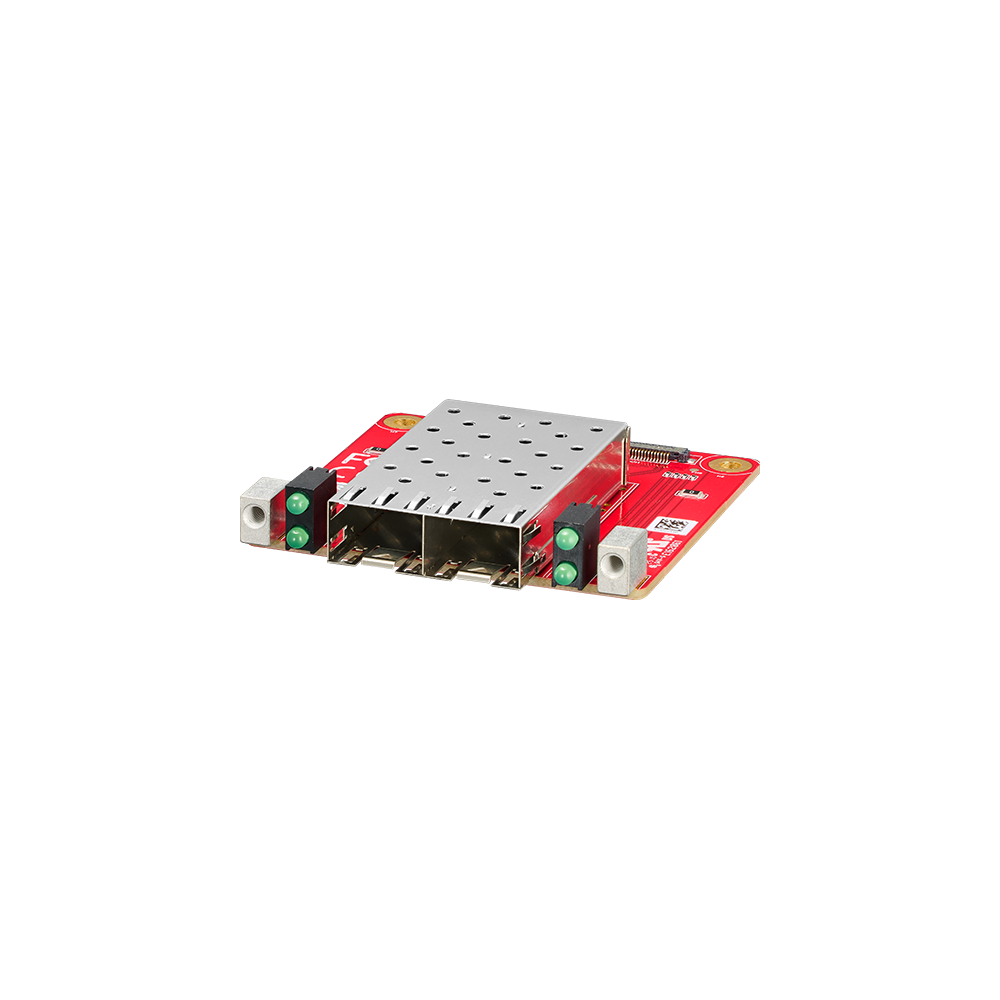

- 4SFP Daughter Board
- 5Coaxial Cable
The EGPL-G2F1 is a M.2 expansion card that provides fast and reliable Gigabit Ethernet (GbE) LAN ports at longer distances than copper-based networks. The module can also support GbE Fiber Optical network by using te SFP transceiver of your choice. It is powered by the Intel Ethernet controller and complies with EN61000-4-2 (ESD) air discharge 15kV and contact discharge 8kV standards.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
規格表
| Model Name | EGPL-G2F1 |
|---|---|
| Module Type | M.2 to Dual GbE SFP Network Module |
| Form Factor | M.2 2242 B+M Key, M.2 2280 B+M Key |
| Function | Fiber Optical SFP |
| Input I/F | PCI Express |
| Output I/F | GbE Fiber Optical |
| Output Port | 2 |
| Output Connector | SFP |
| Max. Power Consumption | 2.03W (3.3V, 614.1mA) |
| Dimension (W x L x H/mm) | Main Board : -W1 : 22 x 80 x 3.75 ; -W2 : 22 x 42 x 3.75 Daughter Board : 60 x 67 x 14.95 |
| Temperature | Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10 (64bit), and above version Linux(igc) : Kernel 2.4 series, 2.6.x, 3.x, and later versions |
| Warranty | 3 Years |
| Notes | ● Please download driver from Intel official website. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro. ● SFP transceivers are available as an optional selection from our AVL: UDE series. |
產品料號
P/N | Description |
ELPL-G2F1-W1 | M.2 to Dual GbE SFP Network Module, 2280 / Wide Temperature |
ELPL-G2F1-W2 | M.2 to Dual GbE SFP Network Module, 2242 / Wide Temperature |
| EZNN-00F8-W1 | 1.25GbE SFP 850nm Multi-mode Transceiver, Duplex LC Connector, UDE 23W21 Series / Wide Temperature |
| EZNN-00F3-W1 | 1.25GbE SFP 1310nm Single-mode Transceiver, Duplex LC Connector, UDE 23W21 Series / Wide Temperature |
