LAN

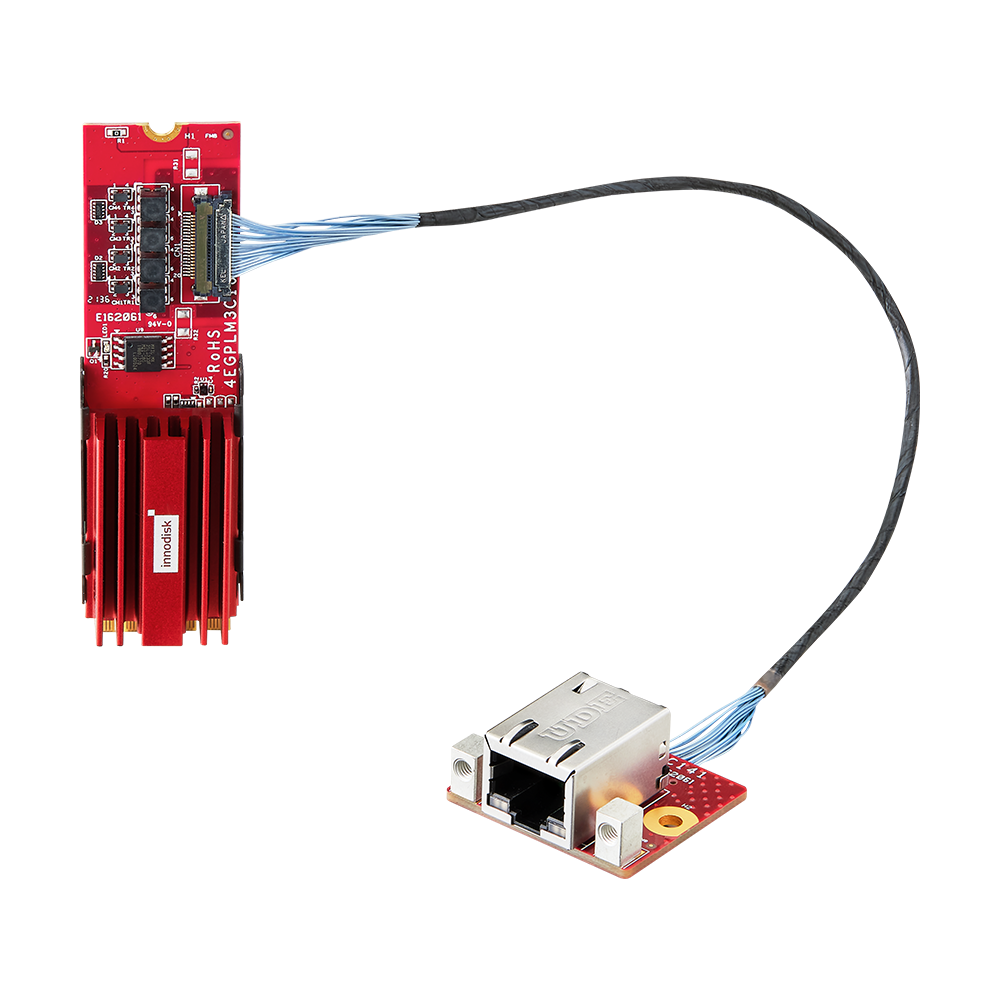

M.2 2280 to Single 10GbE LAN Module
EGPL-T102
Powered by
- Marvell AQtion Ethernet Controller
Provides
- 10M /100M / 1000M / 2.5G / 5G / 10G LAN speed
Supports
- x2 / x1 PCI Express with Gen3 / Gen2
- Precision Time Protocol (PTP-1588v2) / AVB
Features
- Tiny daughter board with a high-speed shielding cable
- Lowest power and smallest 10GbE expansion solution
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Operating temperature from -20°C to 60°C

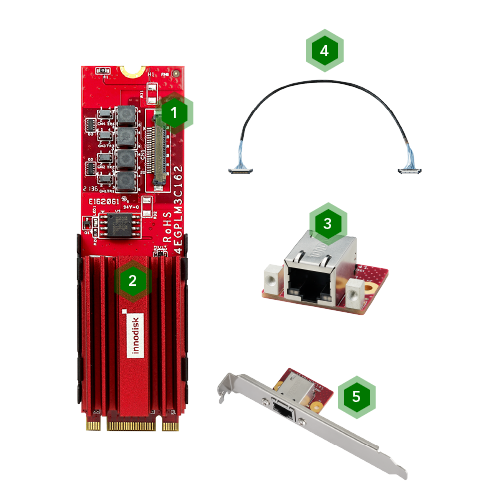

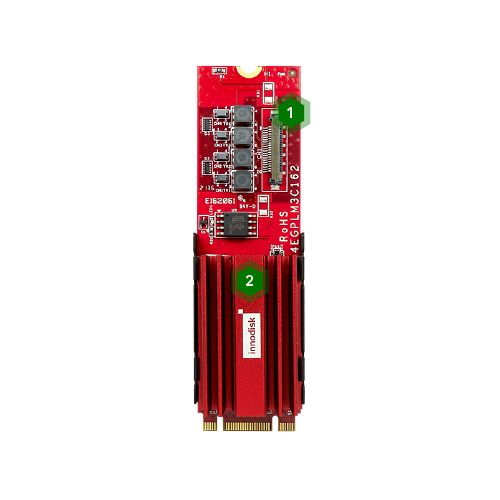

PRODUCT DETAILS AT A GLANCE
- 1LAN Connector

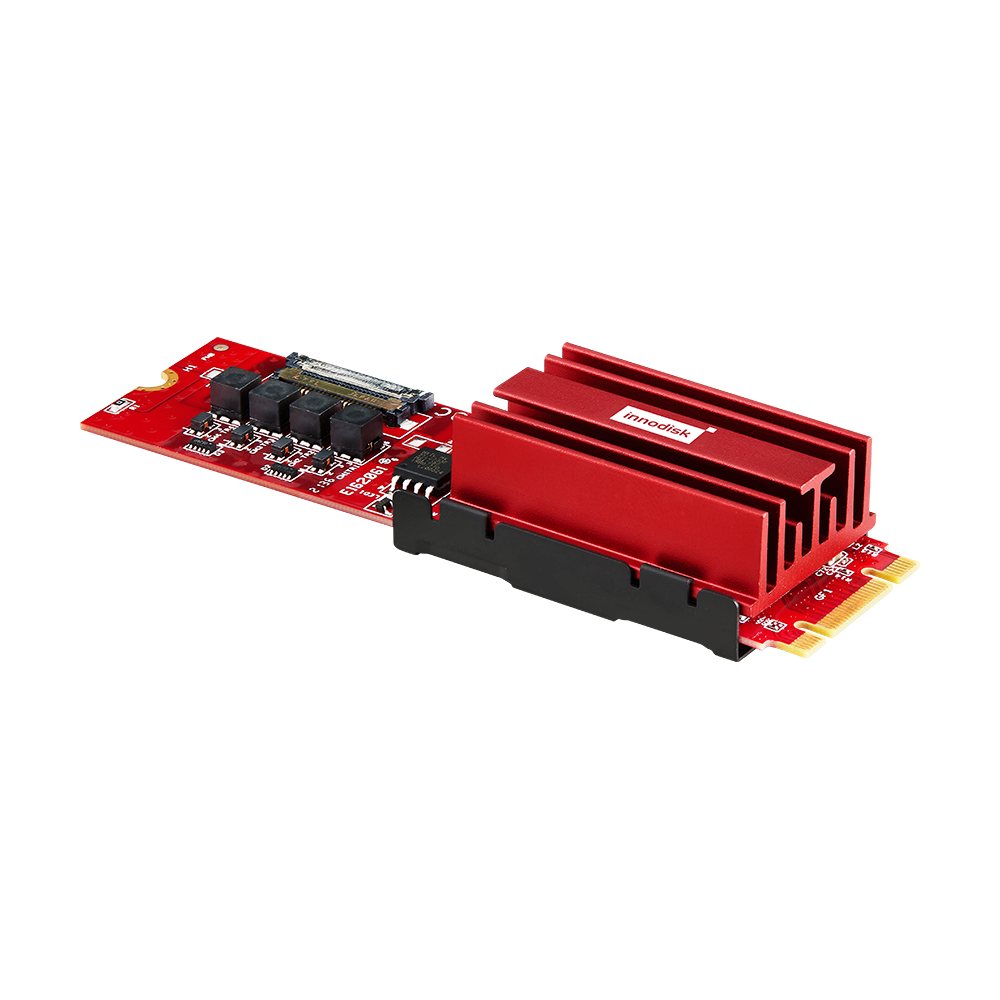

- 2Heatsink

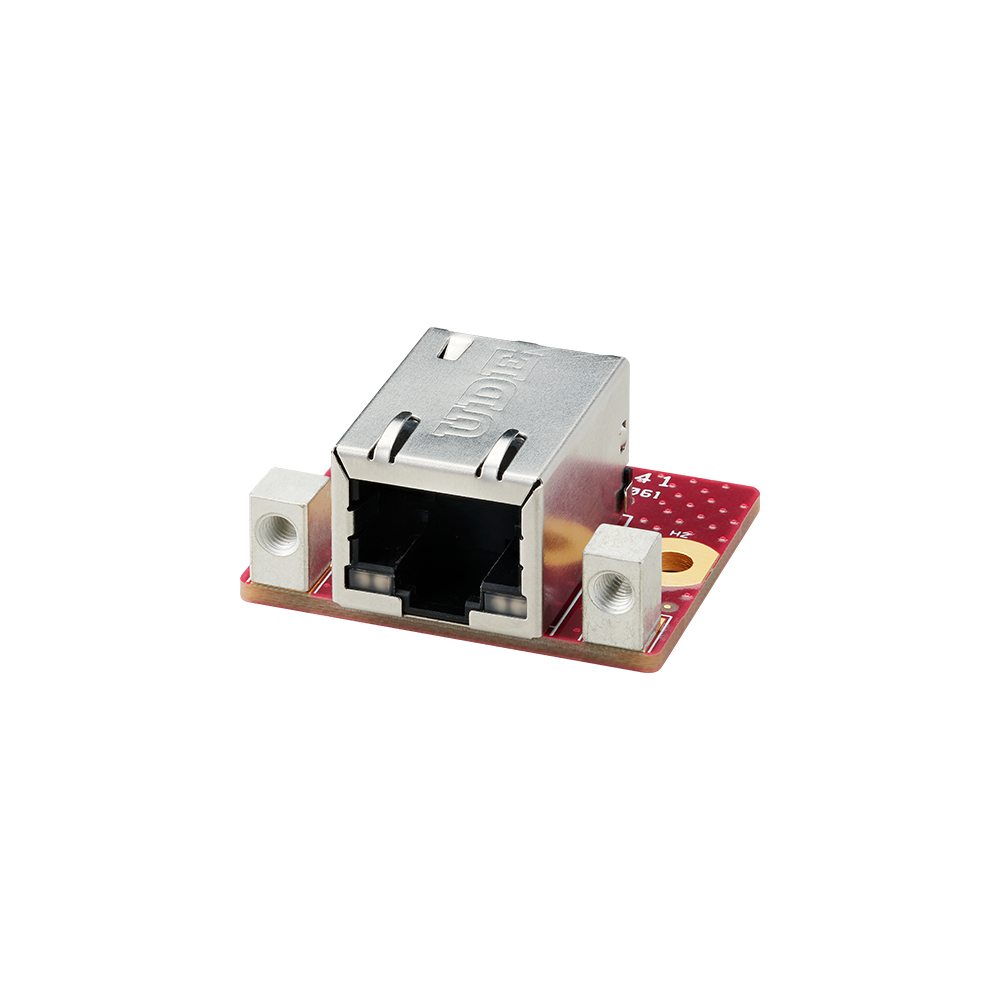

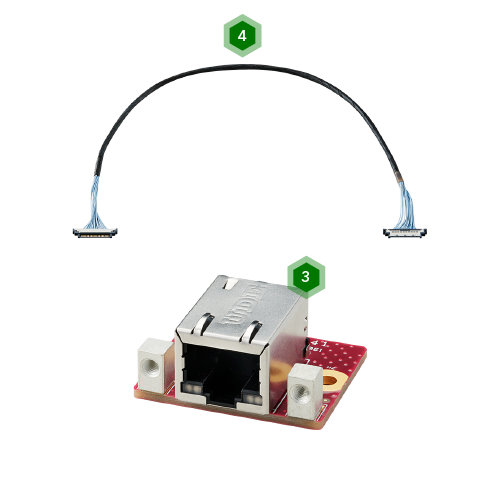

- 3RJ45 Connector (Daughterboard)

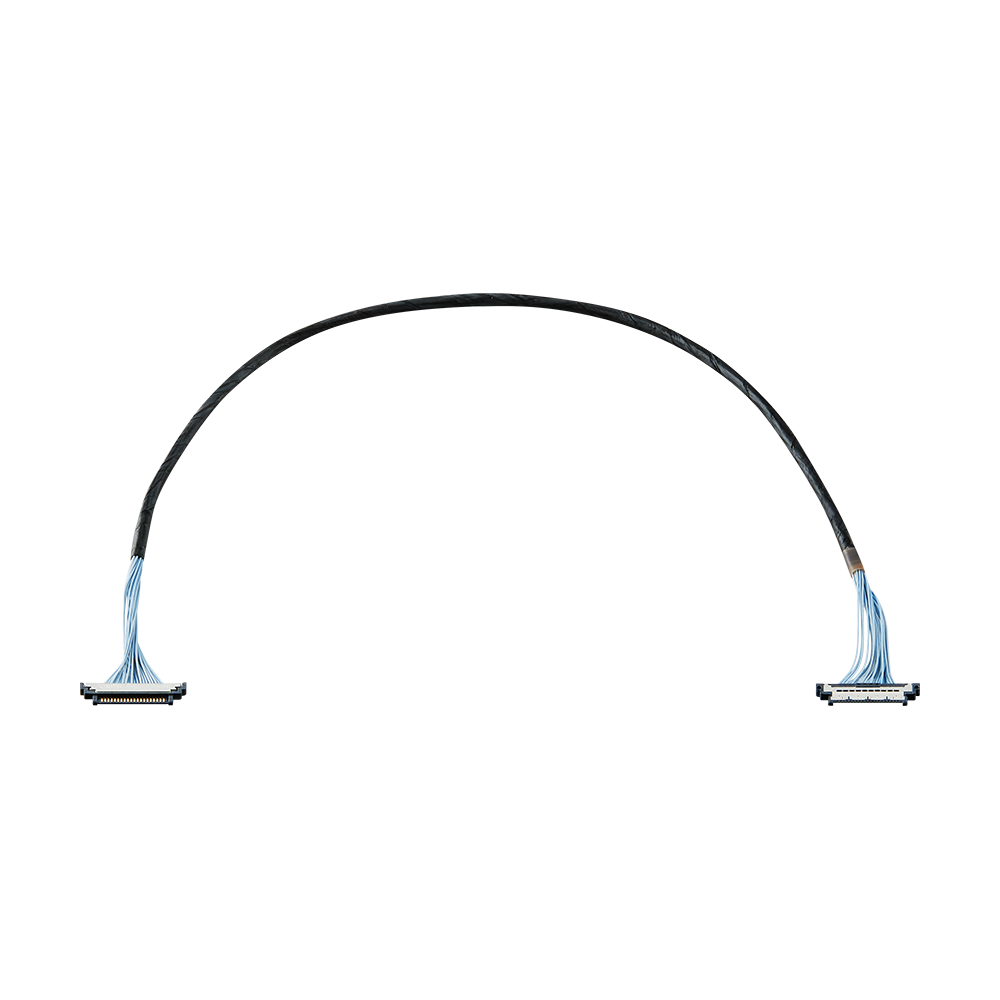

- 425cm High Speed Coaxial Cable

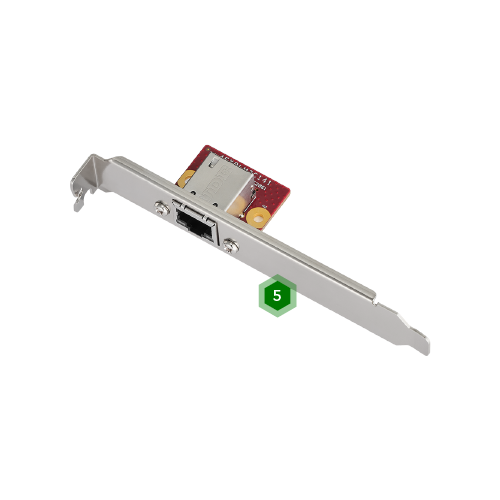

- 5PCIe Standard Bracket (For –C2 SKU)
In today's data-driven world, organizations require high-speed, reliable network solutions to meet ever-growing bandwidth demands. Introducing the Innodisk EGPL-T102 M.2 2280 10GbE LAN module - the industry's first M.2 10GbE expansion solution, engineered to transform your network infrastructure.
TINY, SPEEDY, EASY INTEGRATION
● 10x Speed Performance
10x current GbE speeds for faster, lower-latency data transmission
● Excellent Compatibility
Supports 10/5/2.5/1Gbps and 100/10Mbps for excellent backward compatibility
● Easy and Flexible Integration
RJ45 LAN port for 10GbE on existing Cat6/6A copper cables
● Low Power Consumption
Increased efficiency through reduced power consumption, without sacrificing performance
THE WORLD’S SMALLEST 10GbE EXPANSION SOLUTION
The EGPL-T102 M.2 2280 10GbE network module is Innodisk's first and the world's smallest M.2 10GbE expansion solution. Compared to common sizes on the market, such as low-profile or standard PCIe cards, the EGPL-T102 is over 80-90% smaller in size. Even in limited spaces, it enables the expansion of 10GbE network cards.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
ENTERTAINMENT
Our products enhance user experiences in gaming systems and entertainment platforms, ensuring smooth operations and meeting industry standards.
HEALTHCARE
We integrate AI into healthcare with advanced solutions, meeting strict medical demands.
規格表
| Model Name | EGPL-T102 |
|---|---|
| Module Type | M.2 2280 to Single 10GbE LAN Module |
| Form Factor | M.2 2280 B+M Key |
| Function | LAN |
| Input I/F | PCI Express 3.0 x2 |
| Output I/F | 10GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 3.524W (3.3V, 1068mA) |
| Dimension (W x L x H/mm) | M.2 Board : 22 x 80 x 14.5 Daughter Board : 31.75 x 28 x 17.7 |
| Temperature | Operation : -20°C ~ 60°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10 (64bit) and above version Linux : Kernel 3.10 and above version |
| Warranty | 3 Years |
產品料號
P/N | Description |
EGPL-T102-C1 | M.2 2280 to Single 10GbE LAN Module |
EGPL-T102-C2 | M.2 2280 to Single 10GbE LAN Module, with PCIe Standard Bracket |
| EGPL-T102-C3 | M.2 2280 to Single 10GbE LAN Module, with Low-profile PCIe Bracket |
