LAN
M.2 2230 to Single Isolated GbE LAN Module
EGPL-G104
Powered by
- Intel i210 Ethernet Controller
Features
- Complies with EN61000-4-5 2kV surge protection
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2kV HiPOT protection
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Flexible daughter board with cable to fit into different system
- Optional industrial temperature (-40°C to 85°C) support

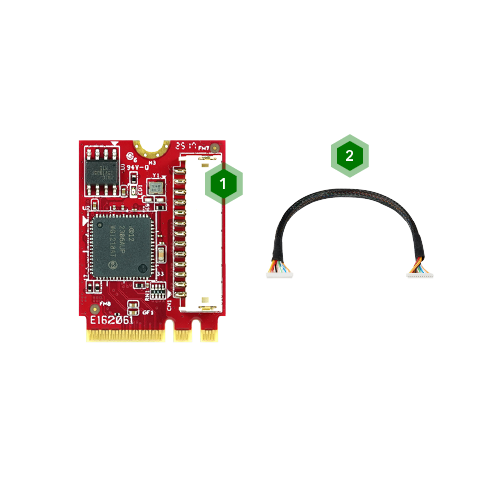

PRODUCT DETAILS AT A GLANCE
- 1LAN Connector
- 2Cable
The EGPL-G104 is an M.2 2230 form factor expansion card that provides a single isolated GbE LAN port. It is powered by the Intel i210 chip.
The EGPL-G104 is designed for industrial and commercial applications that require high-performance, reliable, and secure network connectivity. It features a rugged design that can withstand harsh environments, and it is backed by Innodisk's 3-year warranty.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
規格表
| Model Name | EGPL-G104 |
|---|---|
| Module Type | M.2 2230 to Single Isolated GbE LAN Module |
| Form Factor | M.2 2230 A+E Key |
| Function | LAN |
| Input I/F | PCI Express 2.1 x1 |
| Output I/F | GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 1.358W (3.3V, 411.6mA) |
| Dimension (W x L x H/mm) | Main Board : 22 x 30 x 5.4 Daughter Board : 32x 28 x 19.2 |
| Temperature | Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version |
| Warranty | 3 Years |
| Notes | ● Please download driver from Intel official website. ● Linux Kernel rebuild is needed (modify igc driver) if version < 5.15. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro. |
產品料號
P/N | Description |
EGPL-G104-C1 | M.2 2230 to Single Isolated GbE LAN Module, Mounting Hole / Standard Temperature |
EGPL-G104-W1 | M.2 2230 to Single Isolated GbE LAN Module, Mounting Hole / Wide Temperature |
