M.2 2230 to Dual x RS232/422/485 Module
EGP2-X201
Provides
- PCI-Express specification Rev. 2.0 compliant
- Alternative vertical or horizontal connector
- Full RS-232 functions with DB9 connector
- Termination resistor enabled / disabled by DIP switch
Features
- RS-232 / 422 / 485 mode configurable by software
- 4800 to 3Mbps serial data rate (RS-232 921.6Kbps) serial data rate. 16C550 compatible. 256-byte FIFOs
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact- 8kV

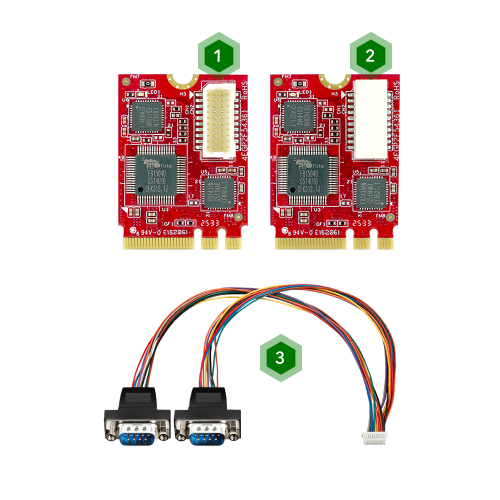

PRODUCT DETAILS AT A GLANCE
- 1Vertical Connector
- 2Horizontal Connector
- 325cm DB9 Cable
The Innodisk EGP2-X201 is an M.2 2230 module that provides two RS-232/RS-422/RS-485 ports, enabling seamless connectivity with a wide range of legacy and industrial devices. It is compliant with the PCI Express Base Specification 1.1 and supports serial data rates from 4800bps to 921. Designed for industrial applications, it supports a temperature range of -40°C to 85°C, includes a 30μ” golden finger, and comes with a 3-year warranty. Manufactured by Innodisk Taiwan.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
ESPECIFICACIONES
| Model Name | EGP2-X201 |
|---|---|
| Module Type | M.2 to dual x RS-232 / 422 / 485 Module |
| Form Factor | M.2 2230 A+E Key |
| Function | Serial |
| Input I/F | PCI Express 1.1 x1 |
| Output I/F | RS-232, RS-422, RS-485 |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 0.81W (3.3V x 245.4mA) |
| Dimension (W x L x H/mm) | Vertical : 22 x 30 x 5.7 Horizontal : 22 x 30 x 6.85 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32 bit), 7 (32 / 64 bit), 8 / 8.1 (32 / 64 bit), 10, and above version, WES7, CE7.0 Linux : Kernel 2.6.x and above |
| Warranty | 3 Years |
| Notes | -- |
INFORMACIÓN DE P/N
| P/N | Description |
| EGP2-X201-W1 | M.2 to dual x RS232/422/485 module, Vertical Connector/ Wide Temperature |
| EGP2-X201-W2 | M.2 to dual x RS232/422/485 module, Horizontal Connector/ Wide Temperature |
