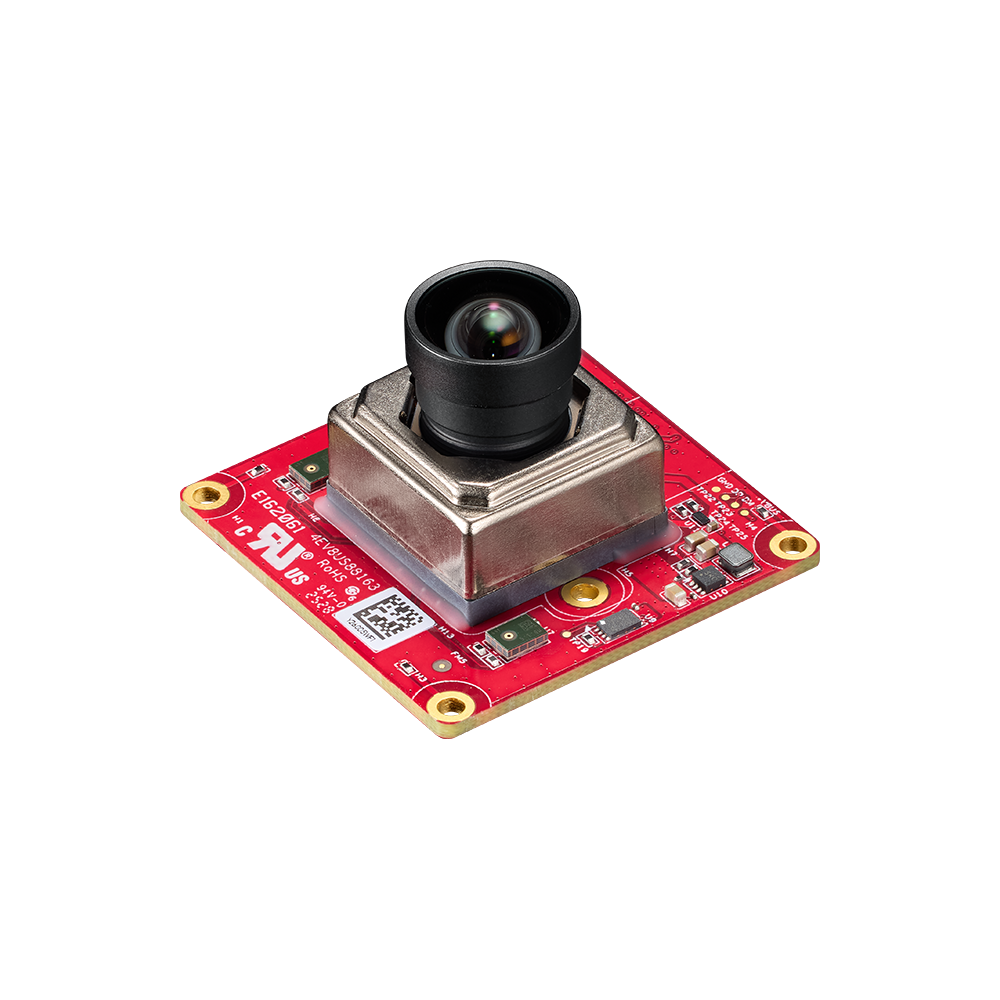

USB 2.0 2MP Fixfokus-Kameramodul
EV2U-LOM2-GSCF
Merkmale
- USB-2.0-Schnittstelle, maximale Auflösung 2MP @60fps
- Bildwinkel des Objektivs (FOV) (D / H / V): 97° / 87° / 61°
- Unterstützt Global Shutter und integrierten Bildsignalprozessor (ISP)
- Konform zu USB 2.0 und USB Video Class
- Konform zu CE / FCC Class A
- Betriebssystemunterstützung: Windows, Linux, Android, macOS (UVC)
Das 2MP-Global-Shutter-Kameramodul von Innodisk bietet eine maximale Auflösung von 2MP bei 60fps und nutzt eine USB-2.0-Schnittstelle. Dank des Global-Shutter-Designs belichtet das Modul alle Pixel gleichzeitig und eliminiert so Bewegungsartefakte und Rolling-Shutter-Verzerrungen bei der Hochgeschwindigkeits-Bildaufnahme. Dieses Kameramodul eignet sich für Anwendungen in der Automatisierung, der Hochgeschwindigkeitsinspektion und der Robotik, bei denen eine präzise Synchronisation und ein genaues Tracking bewegter Objekte entscheidend sind.
GLOBAL SHUTTER FÜR HOCHGESCHWINDIGKEITSPRÄZISION
Die Global-Shutter-Technologie von Innodisk erfasst Hochgeschwindigkeitsbilder ohne Verzerrung oder Bewegungsunschärfe. Diese fortschrittliche Lösung gewährleistet eine präzise, stabile und gestochen scharfe Bildgebung selbst bei schnellen Bewegungen und ist damit ideal für anspruchsvolle Anwendungen.

AUF IHRE SPEZIFISCHEN ANFORDERUNGEN ZUGESCHNITTEN
PCBA-ANPASSUNG
Wir bieten PCBA-Anpassungsdienste (Leiterplattenbestückung) an, um sicherzustellen, dass Ihr Kameramodul Ihren spezifischen Anforderungen entspricht.

BILDQUALITÄTSOPTIMIERUNG
Mit einem integrierten Bildsignalprozessor (ISP) ermöglichen wir die Optimierung der Bildqualität bei gleichzeitiger Einsparung von Entwicklungsressourcen.

VIELSEITIGE OBJEKTIV-UNTERSTÜTZUNG
Eine breite Palette von Objektiven ermöglicht es Ihnen, in jeder Situation beeindruckende Bilder aufzunehmen.

ERFOLGREICH IN DYNAMISCHEN UMGEBUNGEN EINGESETZT
SPEZIFIKATIONEN
| Model Name | EV2U-LOM2-GSCF |
|---|---|
| Module Type | USB 2.0 2MP Fixed Focus Camera Module |
| Resolution (Max.) | 2MP |
| Frame Rate (Max. Resolution) | 60fps |
| Output I/F | USB 2.0 |
| Sensor | onsemi AR0234 |
| Shutter | Global |
| Video Format | YUV422, MJPEG |
| Power Consumption | Approximate 0.6W (MJPEG @Max. Resolution) |
| Operating Temperature | 0°C ~ 70°C |
| Sensor Size | 1/2.6” |
| Pixel Size | 3.0µm |
| Chroma Type | Color |
| Lens Type | Fixed Focus (M12) |
| Dimensions (W x L x H/mm) | 38 x 38 x 35 41.4 x 41.4 x 51.7 (Housing) |
| Lens FOV (D / H / V) | 97° / 87° / 61° |
| OS Support | Windows / Linux / Android / macOS |
| Housing | Board Level, Housing |
| Warranty | 2 Years |
| Note | For detailed resolution and frame rate combined application, please refer to product datasheet. |
BESTELLINFORMATIONEN
P/N | Beschreibung |
EV2U-LOM2-GSCF-11 | USB 2.0 2MP Fixed Focus Camera Module (USB Cable Included) Dimension : 38 x 38mm |
EV2U-LOM2-GSCF-12 | USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included) Dimension : 38 x 38mm |
EV2U-LOM2-GSCF-A1 | USB 2.0 2MP Fixed Focus Camera Module (USB Cable Included) Dimension : 32 x 32mm |
EV2U-LOM2-GSCF-A2 | USB 2.0 2MP Fixed Focus Camera Module, with DMIC (USB cable included) Dimension : 32 x 32mm |
EV2U-LOM2-GSCF-21 | USB 2.0 2MP Fixed Focus Camera Module, with Housing (USB cable included) Dimension : 41.4 x 41.4mm |
7W2000000160 | USB 2.0 cable 1 meter, 5 pins, pitch 1mm |
