MIPI CSI-2

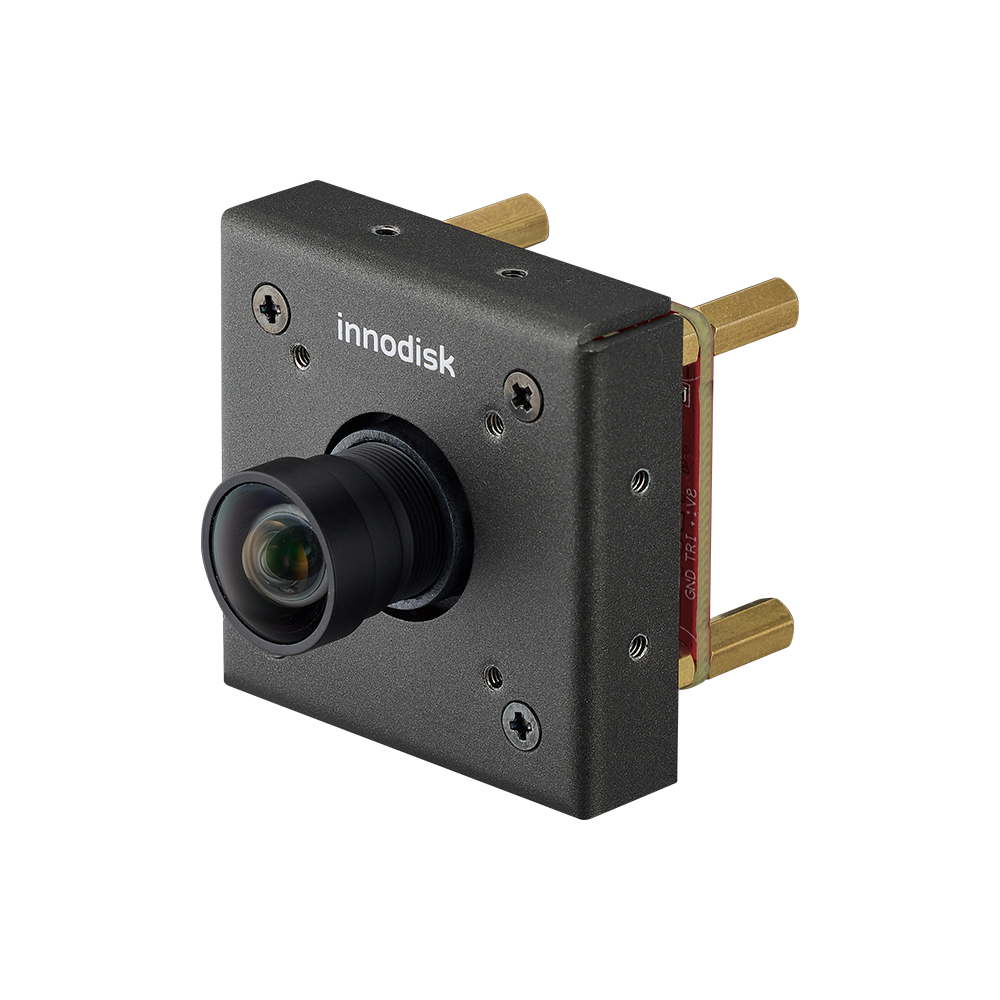

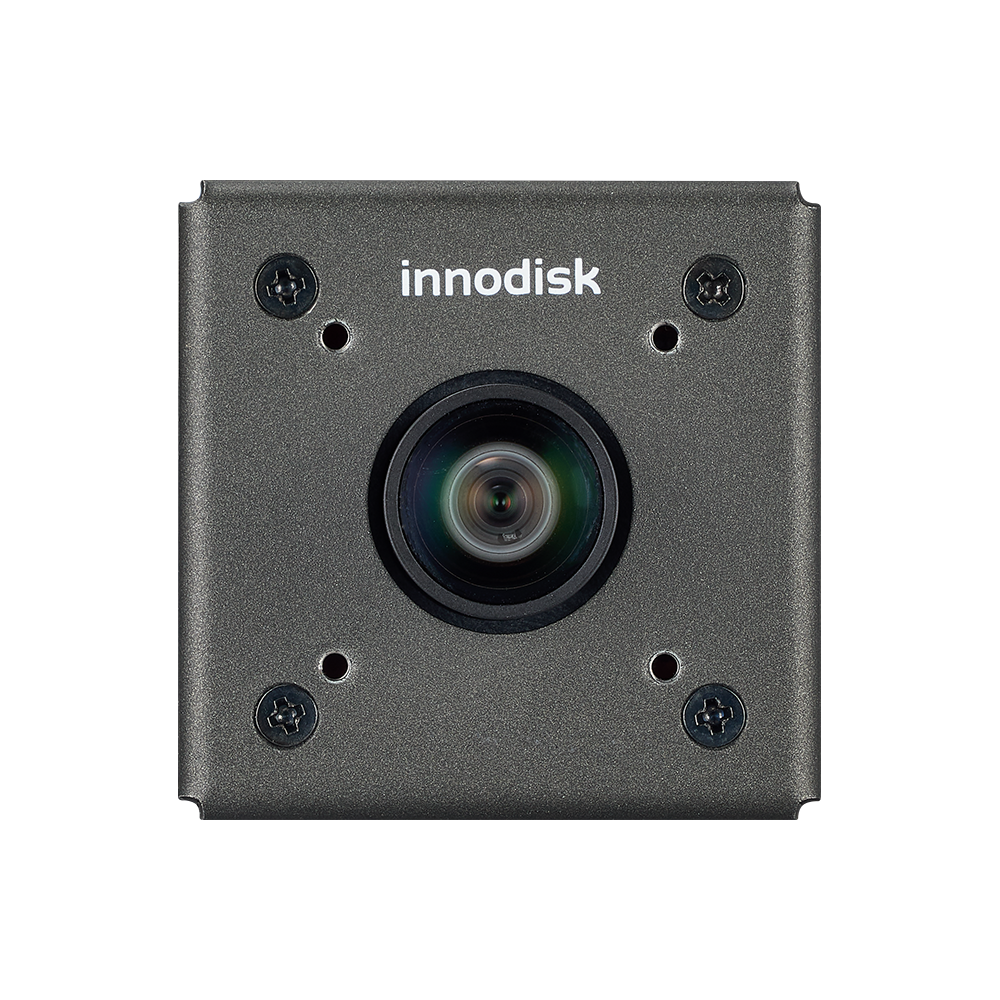

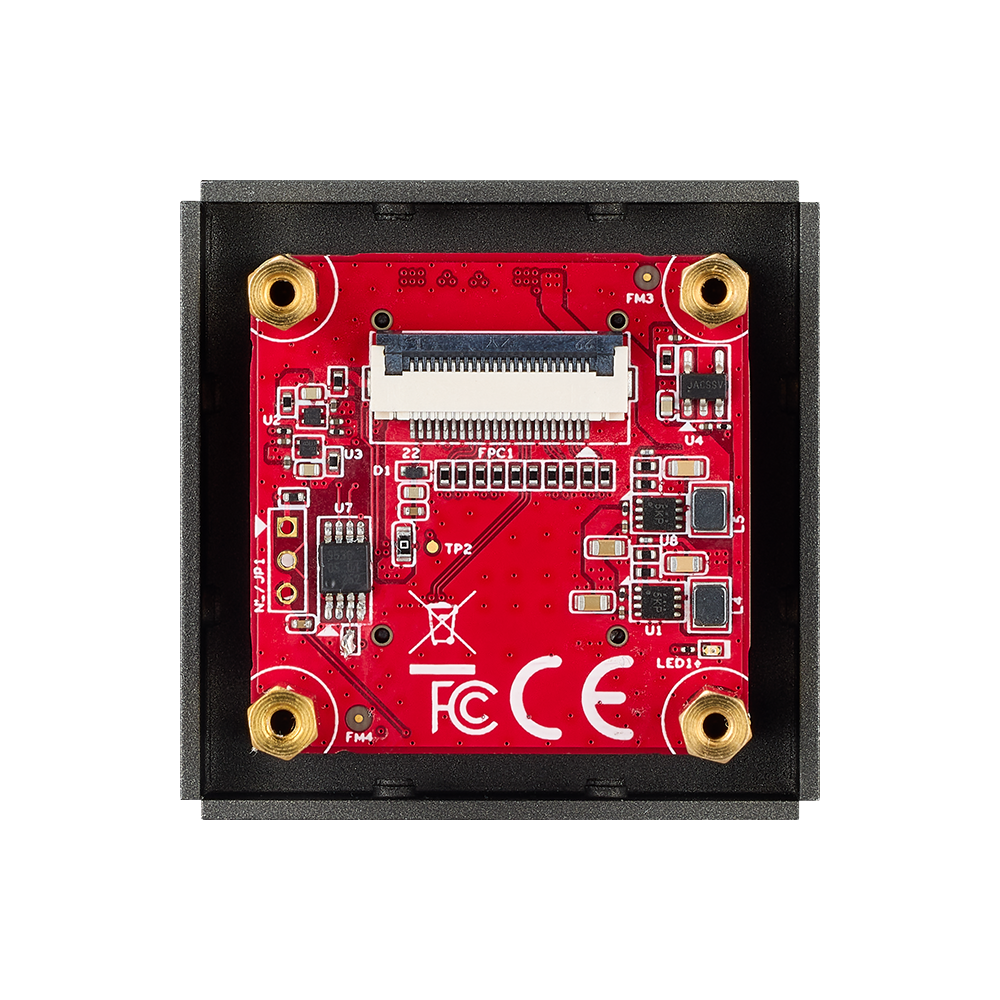

MIPI CSI-2 8MP Fixed Focus Camera Module
EV8M-OOM1-RHCF
Features
- MIPI CSI-2 interface, max resolution 8MP @30fps
- Lens FOV (D / H / V) : 107° / 100° / 67°
- Supports HDR, External Trigger, and Integrated Image Signal Processor (ISP)
- Dynamic Range: 120dB
- Complies with CE / FCC Class A
- Platform Support: NVIDIA Jetson Orin, Intel
Innodisk's 8MP MIPI CSI-2 Camera Module delivers high-quality imaging at up to 30fps, making it ideal for real-time applications. With built-in ISP, support for HDR, and external trigger functionality, it ensures precise image capture in dynamic lighting environments. Featuring a wide 120dB dynamic range, the product captures fine details in both bright and dark areas, offering a reliable vision solution for embedded systems, industrial automation, and edge AI computing.
HDR FOR SUPERIOR IMAGE CLARITY
Innodisk's MIPI CSI-2 Camera Module features cutting-edge HDR technology, ensuring exceptional image clarity and sharpness even in challenging lighting conditions. By effectively extending the dynamic range, HDR technology captures intricate shadow details and vivid highlights, delivering images with unparalleled realism and natural balance.
TAILORED TO YOUR SPECIFIC NEEDS
PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMAGE QUALITY TUNING
With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.
VERSATILE LENS SUPPORT
A wide range of lenses empowers you to capture stunning images in any situation.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
SURVEILLANCE & SAFETY
Provides high-resolution imaging with HDR capabilities for clear and detailed monitoring, even in challenging lighting conditions.
AUTONOMOUS MOBILE ROBOT (AMR)
Enables precise navigation and object detection, ensuring reliable performance in dynamic environments.
AUTOMATED GUIDED VEHICLE (AGV)
Enhances path tracking and obstacle avoidance with high-quality imaging, ideal for industrial and logistic operations.
SPECIFICATIONS
| Model Name | EV8M-OOM1-RHCF |
|---|---|
| Module Type | MIPI CSI-2 8MP Fixed Focus Camera Module |
| Resolution (Max.) | 8MP |
| Frame Rate (Max. Resolution) | 30fps |
| Output I/F | MIPI CSI-2 |
| Sensor | onsemi AR0822 |
| Shutter | Rolling |
| Video Format | YUV422 |
| Power Consumption | Approximate 1W (YUV422 @Max. Resolution) |
| Operating Temperature | -30°C ~ 70°C |
| Sensor Size | 1/1.8” |
| Pixel Size | 2.0µm |
| Chroma Type | Color |
| Lens Type | Fixed Focus (M12) |
| Dimensions (W x L x H/mm) | 30 x 30 x 41 39 x 39 x 41 (Open Front Housing) |
| Lens FOV (D / H / V) | 107° / 100° / 67° |
| Platform Support | NVIDIA Jetson Orin, Intel |
| Housing | Board Level, Open Front Housing |
| Features | HDR |
| Warranty | 3 Years |
| Note | For detailed resolution and frame rate combined application, please refer to product datasheet. For more platform support, please contact our local sales. |
ORDER INFORMATION
P/N | Description |
| EV8M-OOM1-RHCF-11 | MIPI CSI-2 8MP Fixed Focus Camera Module (FFC cable included) |
| EV8M-OOM1-RHCF-21 | MIPI CSI-2 8MP Fixed Focus Camera Module, Open Front Housing (FFC cable included) |
| 7W7000000060 | FFC cable 15cm, 22 pins, pitch 0.5mm |
