SATADOM
16GB ~ 64GB
SATADOM-SL 3IS4
Features
- Exclusive L³ architecture
- DRAM-less, 100% data integrity
- Excellent random performance
- Designed with hardware LDPC ECC engine
- Cost-effective Flash with iSLC
- Cable-less through Pin 7 / Pin 8 connectors
- High less than 1U
- Supports wide temperature from -40°C to 85°C
Innodisk SATADOM-SL 3IS4 is characterized by L³ architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high performance and prolong lifespan with exceptional reliability.
Innodisk SATADOM-SL 3IS4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.
The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drives are required, and the SSD can be configured as a boot device or data storage device.
Cable-less Power – SIMPLIFIED CONNECTIVITY
Innodisk’s SATADOM SSDs are designed to integrate seamlessly into embedded systems, industrial computers, or server motherboards. With our patented Pin 7 / Pin 8 Vcc technology, these drives enable plug-and-play functionality, eliminating the need for additional power cables and ensuring a streamlined, cable-free setup.
Garbage Collection and TRIM Technologies – OPTIMIZING SSD PERFORMANCE
Garbage Collection is a process where data that is still in use is copied to a new block, and the old block is then cleared of all data. With TRIM technology, the number of operations required for Garbage Collection is minimized, reducing unnecessary wear on the SSD and enhancing its longevity.
Wear Leveling Technology – EXTENDING PRODUCT LIFESPAN
Innodisk adopts innovative wear leveling technology to revolutionize SSD storage methods, thereby improving its lifespan. By applying this technology to both dynamic and static storage blocks, it eliminates the traditional concepts of hot zones and cold zones, achieving full-area wear balance and optimizing the use of every flash memory block.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

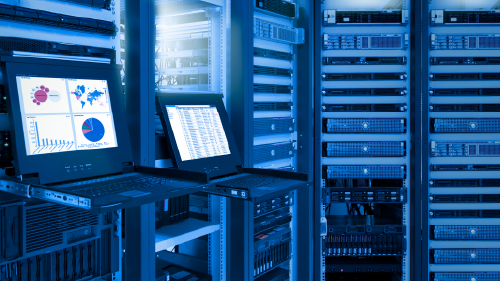

HYPER-INTELLIGENT SERVER BOOT UP STORAGE SOLUTION
Hyper-converged infrastructure (HCI) is revolutionizing data centers by integrating servers, networking, and storage with virtualization to enhance efficiency and reduce complexity. To fully leverage HCI’s benefits, flash storage devices must deliver high performance, longevity, and minimal physical and thermal footprints.
規格表
| Model Name | SATADOM-SL 3IS4 |
|---|---|
| Flash Type | iSLC (MLC) |
| Interface | SATA III 6.0 Gb/s |
| Form Factor | SATADOM-SL |
| Capacity | 16GB ~ 64GB |
| Sequential R / W (MB/sec, max.) | 530 / 350 |
| P/E Cycle | 20,000 |
| TBW (Max.) | 78 |
| Storage Temperature | -55°C ~ 95°C |
| Max. Power Consumption | 0.815W |
| Max. Channels | 2 |
| External DRAM Buffer | N |
| Feature | S.M.A.R.T. |
| Dimension (W x L x H/mm) | 33.06 x 29.6 x 10.5 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 5 Years |
產品料號
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
16GB | DSSSL-16GM413CADC* | DSSSL-16GM413WADC* |
32GB | DSSSL-32GM413CADC* | DSSSL-32GM413WADC* |
64GB | DSSSL-64GM413CADC* | DSSSL-64GM413WADC* |
*PN end with A : Pin 8 + power cable / B : Pin 8 + Pin 7
