CAN Bus
mPCIe to Dual Isolated CAN FD Module
EMUC-F2I3
Provides
- Baud rate up to 5 / 10 / 20 / 50 / 100 / 125 / 250 / 500 (Default) / 800 / 1000K
- Data rate up to 2 / 4 / 5Mbps (*Notes)
- CAN2.0 up to 7,800 frame/s (RX baud rate 1M, EID, 8byte data)
- CANFD up to 6,000 frame/s (RX baud rate 1M, data rate 5M, EID, 64byte data)
Features
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact- 8kV
- Additional driver to support Linux SocketCAN
- Termination resistor enabled/disabled by jumper
- Support 3-axis magnetometer and 6-axis IMU with external interrupt pin

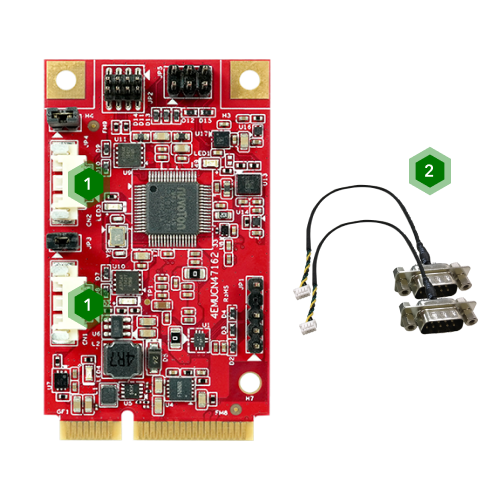

PRODUCT DETAILS AT A GLANCE
- 1CAN Cable Connector
- 230cm DB9 Cable
The EMUC-F2I3 is a ruggedized mPCIe CAN FD module engineered for industrial connectivity. This Taiwan-made solution delivers data rates up to 5Mbps and handles high-intensity traffic with integrated 3-axis magnetometer and 6-axis IMU sensors for precise motion sensing. Built for harsh environments, it features 2.5 kV HiPOT and EN61000-4-2 ESD protection while operating from -40°C to 85°C. With Linux Socket CAN support and a 3-year warranty, it offers the ultimate balance of speed, durability, and smart perception.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
사양
| Model Name | EMUC-F2I3 |
|---|---|
| Module Type | mPCIe to Dual CAN FD with IMU |
| Form Factor | mPCIe |
| Function | CAN FD + IMU/Magnetic sensor |
| Input I/F | USB 2.0 High Speed (480Mbps) |
| Output I/F | CAN FD |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 1.573W (5V, 314.6mA ; 3.3V, 476.7mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 8.45 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10 (32 / 64bit) and above version Linux : Kernel 2.6 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| Warranty | 3 Years |
| Notes | *Data rate limitation : ● 2M supports normal rate 100K and above. ● 4M / 5M supports normal rate 250K and above. |
주문 정보
| P/N | Description |
EMUC-F2I3-W1 | mPCIe to Dual CAN FD with IMU |
