mPCIe to Four USB 3.0 Module
EMPU-3401
Provides
- 4 x USB 3.0 ports, up to SuperSpeed (5Gbps) data rate (share PCIe Gen 2 x1 bandwidth)
- Independent 1.5A overcurrent protection (OCP) for each port
Supports
- Compliant with xHCI 1.0, USB 3.0 Rev 1.0
- USB Battery Charging Specification Revision 1.2
Features
- Operating temperature from -40°C ~ 85°C

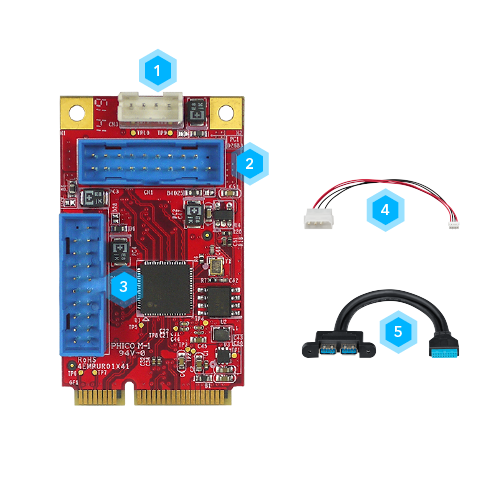

PRODUCT DETAILS AT A GLANCE
- 1Power In 5V Connector
- 2USB 3.0 Box Header (CN1)
- 3USB 3.0 Box Header (CN2)
- 420cm Power Cable
- 525cm USB Cable
The Innodisk EMPU-3401 is an mPCIe to four USB 3.0 module, enabling your system to expand with four more USB 3.0 ports. It is compliant with the PCI Express Base Specification Revision 2.0 and the USB 3.0 Specification Revision 1.0, supporting data rates of up to 5Gbps. Furthermore, the EMPU-3401 adheres to the xHCI 1.0 specification.
HIGH-SPEED, VERSATILE, STANDARDS-COMPLIANT
- 4 High-speed USB 3.0 ports : Supports data rates of up to 5Gbps
- Wide Temperature Range for diverse application scenarios：-40°C ~ 85°C
- Compliant with multiple standards : xHCI 1.0, USB 3.0 Rev 1.0
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
RETAIL
Powers smart retail systems, enabling efficient inventory management and seamless point-of-sale operations.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Improves efficiency in automated systems with long-lasting performance.
HEALTHCARE
Delivers precise and reliable solutions to revolutionize healthcare services and meet growing medical demands.
SPECIFICATIONS
| Model Name | EMPU-3401 |
|---|---|
| Module Type | mPCIe to four USB 3.0 Module |
| Form Factor | mPCIe |
| Function | USB 3.0 |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | USB 3.0 |
| Output Port | 4 |
| Output Connector | 19-pin Header |
| Max. Power Consumption | 1.12W (3.3V, 340mA) |
| Dimension (W x L x H/mm) | 30.0 x 50.9 x 8.45 |
| Temperature | Operation : S/T 0°C ~ 70°C；W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32 bit), 7 (32 / 64bit), Vista Linux : Kernel v2.6.0, v2.6.8 |
| Warranty | 3 Years |
| Notes | After Win8 and Linux Kernel v2.6.31 supports built-in xHCI 1.0. |
ORDER INFORMATION
| P/N | Description |
| EMPU-3401-C1 | mPCIe to Four USB 3.0 Module / Standard Temperature |
| EMPU-3401-W1 | mPCIe to Four USB 3.0 Module / Wide Temperature |
