Serial
M.2 2242 to Four RS-232 Module
EGP2-X403
Provides
- 4800bps to 921.6Kbps serial data rate
Features
- PCI Express base spec 1.1 compliant
- Compatible with 16C550 / 16C650 / 16C750 / 16C850 / 16C950, 128-byte FIFOs
- Full RS-232 functions with DB9 connector
- Alternative vertical or horizontal connector
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Operating temperature from -40°C to 85°C

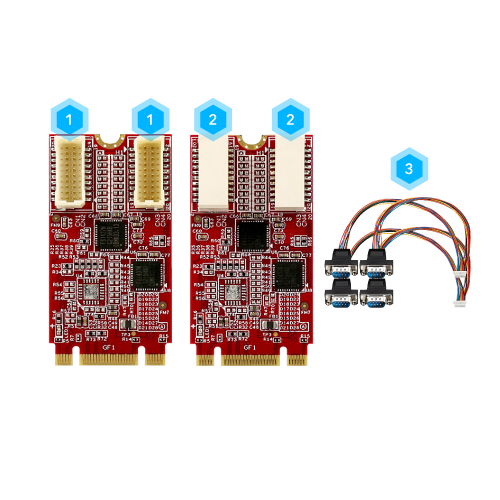

PRODUCT DETAILS AT A GLANCE
- 1Vertical Connector (EGP2-X403-W1)
- 2Horizontal Connector (EGP2-X403-W2)
- 325cm DB9 Cable
BORN FOR SUPERIOR PERFORMANCE
Catering to the needs of legacy and industrial devices, the Innodisk M.2 2242 to Four RS-232 Module provides four RS-232 ports, enabling seamless connectivity with a vast array of industrial equipment. This expansion capability empowers users to connect multiple devices simultaneously, streamlining data transfer and communication in industrial environments.
RELIABLE PERFORMANCE
- Data Rate : 4800bps to 921.6Kbps
- Alternative Connector : Vertical or Horizontal
- Wide Temperature : -40°C ~ 85°C
- ESD Testing：EN61000-4-2 : Air-15kV, Contact-8kV
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Enhances operations and management in transportation services.
AUTOMATION
Improves efficiency in automated systems with long-lasting performance.
MANUFACTURING
Increases management efficiency and production capacity.
RETAIL
Powers smart retail systems, enabling efficient inventory management and seamless point-of-sale operations.
SPECIFICATIONS
| Model Name | EGP2-X403 |
|---|---|
| Module Type | M.2 to Four RS-232 Module |
| Form Factor | M.2 2242 B+M Key |
| Function | Serial |
| Input I/F | PCI Express 1.1 x1 |
| Output I/F | RS-232 |
| Output Connector | DB-9 |
| Output Port | 4 |
| Max. Power Consumption | 1.656W (3.3V x 502mA) |
| Dimension (W x L x H/mm) | Vertical: 22 x 42 x 6.83 Horizontal: 22 x 42 x 7.93 |
| Temperature | Operation : S/T 0°C ~ 70°C；W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 7, 10, and above version Linux : Kernel v2.6.8 and above |
| Warranty | 3 Years |
| Notes | -- |
ORDER INFORMATION
| P/N | Description |
| EGP2-X403-W1 | M.2 2242 to Four RS-232 Module, Vertical Connector / Wide Temperature |
| EGP2-X403-W2 | M.2 2242 to Four RS-232 Module, Horizontal Connector / Wide Temperature |
