M.2
128GB ~ 512GB
M.2 (P42) 3TE4
Features
- Powered by PCIe Gen 3 x4 and NVMe 1.3
- DRAM-less solution
- Anti-vibration mechanical design
- Dynamic Thermal Throttling
- iPower Guard Protection
- Supports wide temperature from -40°C to 85°C
Innodisk M.2 (P42) 3TE4 is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P42) 3TE4 supports PCIe Gen 3 x4 and it is compliant with NVMe 1.3 providing excellent top and also outstanding sustained performance. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.
AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
iPower Guard – POWER PROTECTION TECHNOLOGY
iPower Guard is a proactive protection mechanism designed for environments with unstable power supplies. It provides further protection for SSDs during both startup and shutdown, preventing system performance issues caused by power instability.
TAILORED TO YOUR SPECIFIC NEEDS

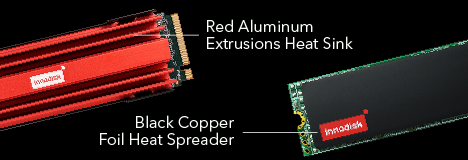

HEAT SINK CUSTOMIZATION
Innodisk provides different types of heat sinks to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
ENTERTAINMENT
Our products enhance user experiences in gaming systems and entertainment platforms, ensuring smooth operations and meeting industry standards.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
COMMUNICATION
Our solutions ensure reliable and uninterrupted performance, supporting networking and critical telecom infrastructure even under heavy loads.
RETAIL
Powering smart retail systems, our solutions enable efficient inventory management, seamless point-of-sale operations, and insightful customer analytics.
SPECIFICATIONS
| Model Name | M.2 (P42) 3TE4 |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 3 x4 |
| Form Factor | M.2 2242 M Key |
| Capacity | 128GB ~ 512GB |
| Sequential R / W (MB/sec, max.) | 2,600 / 1,750 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 650 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 3.9W |
| Max. Channels | 4 |
| External DRAM Buffer | N |
| Features | AES, TCG Opal 2.0, S.M.A.R.T. |
| Dimension (W x L x H/mm) | S/T : 22.0 x 42.0 x 3.5 W/T with heat-spreading copper layer : 25.0 x 42.0 x 4.1 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 3 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
128GB | DEM24-A28IB1KCADF | DEM24-A28IB1KWADF |
256GB | DEM24-B56IB1KCAQF | DEM24-B56IB1KWAQF |
512GB | DEM24-C12IB1KCAQF | DEM24-C12IB1KWAQF |
For TCG OPAL function, the PN Code 10th ~ 12th will be IB2.
