M.2 (P80) 4TS2-P

Product Features
  • PCIe Gen. 4x4, NVMe 1.4 for Edge Server field
  • Excellent data transfer speed
  • Stable sustained performance
  • Heat-spreading design
  • LDPC ECC engine supported.
  • Thermal Throttling management
Featured Technologies:
Overview Specs Order Information Related Resource +ADD TO INQUIRY

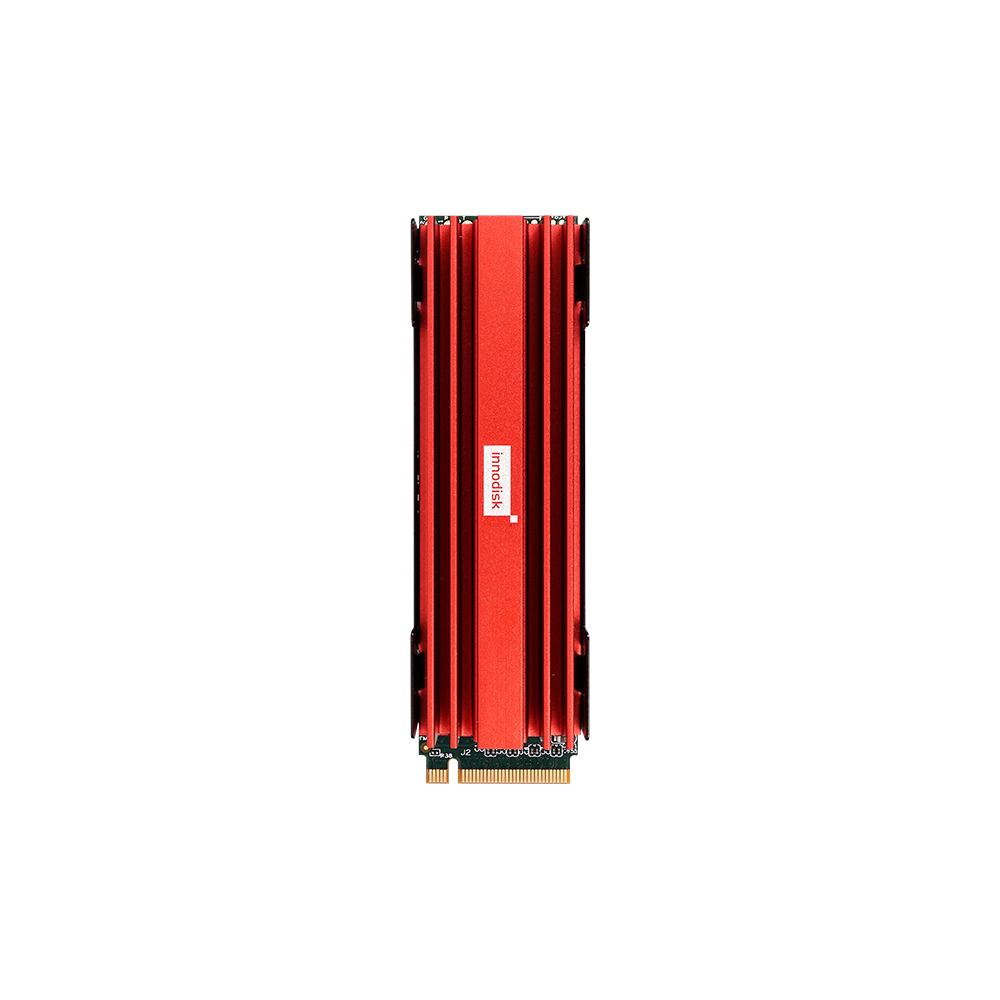

Innodisk M.2 (P80) 4TS2-P is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash. M.2 (P80) 4TS2-P supports PCIe Gen. 4x4, and it is compliant with NVMe 1.4 providing excellent performance. M.2 (P80) 4TS2-P with heat-spreading design dissipate heat generating from IC making SSD perform more steady. M.2 (P80) 4TS2-P has Die RAID protection to reduce bad blocks happening and optimize data integrity.

Innodisk M.2 (P80) 4TS2-P provides ultra-speed and high IOPS and offers maximum capacity up to 3.2TB, making the SSD optimal for server and heavy data workload applications.


Model NameM.2 (P80) 4TS2-P
InterfacePCIe Gen. IV x4
Flash Type3D TLC
Sequential R/W (MB/sec, max.)7,100/5,200
Max. Power Consumption6.2W
Max. Channels8
Thermal SensorY
External DRAM BufferY
H/W Write ProtectN
Dimension (WxLxH/mm)ST with heat-spreading copper layer: 22.0 x 80.0 x 3.3
WT with heatsink: 25 x 80.0 x 14.45
(Pure M.2: 22.0 x 80.0 x 2.87)
Vibration[email protected]~2000Hz
Shock[email protected]
MTBF>3 million hours
Storage Temperature-40°C ~ +85°C
Operation TemperatureStandard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C

Order Information:

Operation Temp. 400GB 800GB 1.6TB 3.2TB
Standard Grade (0°C ~ +70°C) DSM28-400DP1KCCEF DSM28-800DP1KCCEF DSM28-1T6DP1KCCEF DSM28-3T2DP1KCCEF
Industrial Grade (-40°C ~ +85°C) DSM28-400DP1KWCEFH DSM28-800DP1KWCEFH DSM28-1T6DP1KWCEFH DSM28-3T2DP1KWCEFH
