M.2
PCIe Gen4 Solution For Data Center

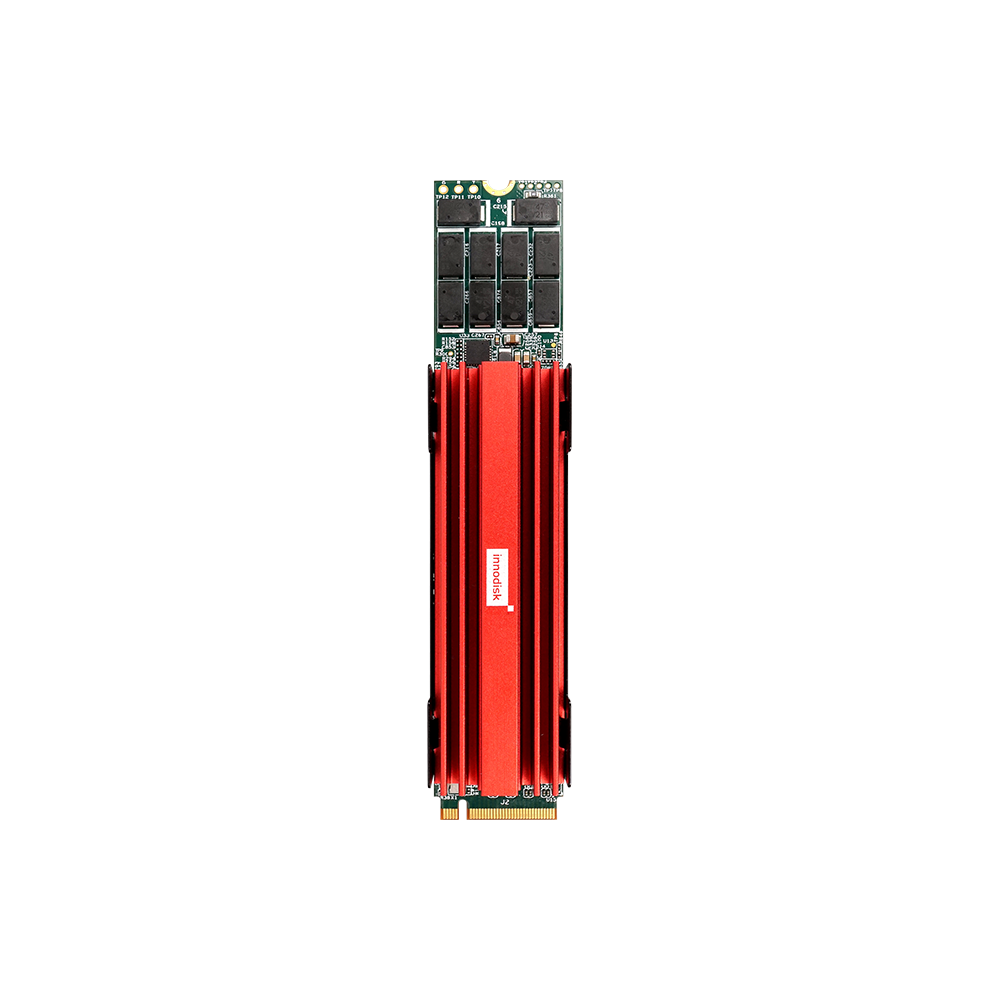

M.2 (P110) 4TS2-P
Features
- Up to 6,950 / 4,700 MB/s read and write performance
- Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
- PLP (iCell) technology for power loss protection
The Innodisk M.2 (P110) 4TS2-P is an NVMe SSD in the standard M.2 form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Its Die RAID protection enhances data integrity by reducing the occurrence of bad blocks.
With ultra-fast speeds, high IOPS, and up to 3.2TB capacity, the M.2 (P110) 4TS2-P is ideal for servers and data-intensive applications.
ENSURING STABILITY IN EXTREME ENVIRONMENTS
The M.2 (P110) 4TS2-P is specifically engineered for edge servers, supporting a wide temperature range from -40°C to 85°C. It incorporates a Dynamic Thermal Throttling mechanism that provides real-time SSD monitoring. When the temperature reaches a critical threshold, the system automatically issues commands to smoothly reduce read and write speeds, ensuring operational stability.
iCell Technology – POWER LOSS PROTECTION
Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.
AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
TAILORED TO YOUR SPECIFIC NEEDS
HEAT SINK CUSTOMIZATION
Innodisk provides different types of heat sinks to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
DATA CENTER
Driving the backbone of modern computing, our solutions deliver high performance and reliability for data-intensive operations.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
EDUCATION VIRTUAL MACHINE
Facilitating the seamless operation of virtual learning environments, our products provide the stability and speed essential for educational institutions.
SPECIFICATIONS
| Model Name | M.2 (P110) 4TS2-P |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | M.2 22110 M Key |
| Capacity | 400GB ~ 3.2TB |
| Sequential R / W (MB/sec, max.) | 6,950 / 4,700 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 5,312 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 10.1W |
| Max. Channels | 8 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Series | Data Center SSD |
| Dimension (W x L x H/mm) | S/T with heat-spreading copper layer : 22.0 x 110.0 x 3.3 W/T with heatsink : 25.0 x 110.0 x 14.45 Pure M.2 : 22.0 x 110.0 x 2.87 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 5 Years |
ORDER INFORMATION
Operating Temperature | Standrad Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
400GB | DSM21-400DP1KCBEFP | DSM21-400DP1KWBEFPH |
800GB | DSM21-800DP1KCBEFP | DSM21-800DP1KWBEFPH |
1.6TB | DSM21-1T6DP1KCBEFP | DSM21-1T6DP1KWBEFPH |
3.2TB | DSM21-3T2DP1KCBEFP | DSM21-3T2DP1KWBEFPH |
