U.2
PCIe Gen4 Solution For Data Center

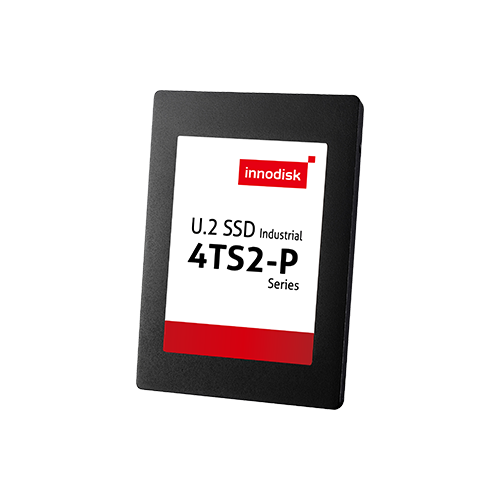

U.2 SSD 4TS2-P
Features
- Up to 6,600 / 1,800 MB/s read and write performance
- Supports a temperature range of 0°C to 70°C
- Supports dynamic temperature control to maintain stable SSD operation
- Supports PLP (iCell) power-loss protection technology to provide power-loss protection for the SSD
The Innodisk U.2 SSD 4TS2-P is an NVMe SSD in the standard U.2 (SFF-8639) form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.
With ultra-fast speeds, high IOPS, and up to 3.84TB capacity, the U.2 SSD 4TS2-P is ideal for servers and data-intensive applications.
ENSURING OPERATIONAL STABILITY
The U.2 SSD 4TS2-P is specifically engineered for edge servers. It incorporates a Dynamic Thermal Throttling mechanism that provides real-time SSD monitoring. When the temperature reaches a critical threshold, the system automatically issues commands to smoothly reduce read and write speeds, ensuring operational stability.
iCell Technology – POWER LOSS PROTECTION
Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.
AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
DATA CENTER
Driving the backbone of modern computing, our solutions deliver high performance and reliability for data-intensive operations.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
EDUCATION VIRTUAL MACHINE
Facilitating the seamless operation of virtual learning environments, our products provide the stability and speed essential for educational institutions.
SPECIFICATIONS
| Model Name | U.2 SSD 4TS2-P |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | U.2 SSD |
| Capacity | 240GB ~ 3.84TB |
| Sequential R / W (MB/sec, max.) | 6,600 / 1,800 |
| P/E Cycle | 7,000 |
| TBW (Max.) | 7,256 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 13W |
| Max. Channels | 8 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Series | Data Center SSD |
| Dimension (W x L x H/mm) | 69.85 x 100.0 x 6.9 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 5 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade (0°C ~ 70°C) |
240GB | DSEU2-240DP1NC#Q%P |
480GB | DSEU2-480DP1NC#Q%P |
960GB | DSEU2-960DP1NC#&%P |
1.92TB | DSEU2-1T9DP1NC#E%P |
3.84TB | DSEU2-3T8DP1NC#E%P |
Operation temperature based on temperature obtained from S.M.A.R.T.
For TCG Opal function, the PN Code 10th ~ 12th will be DP2.
#: BOM revision
&: Q=4-channel / E=8-channel
