EV8M-OOM1-RHCF
EV8M-OOM1-RHCF
EV8M-OOM1-RHCF
EV8M-OOM1-RHCF

MIPI CSI-2

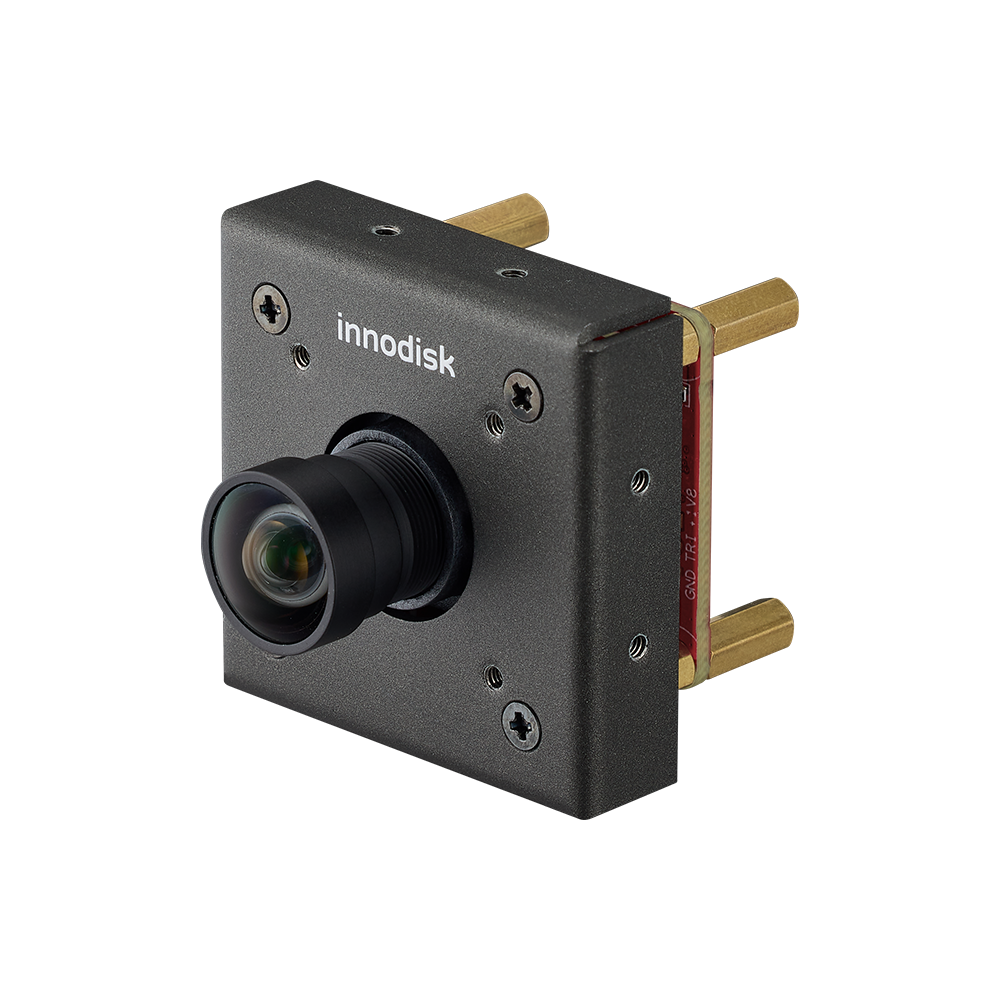

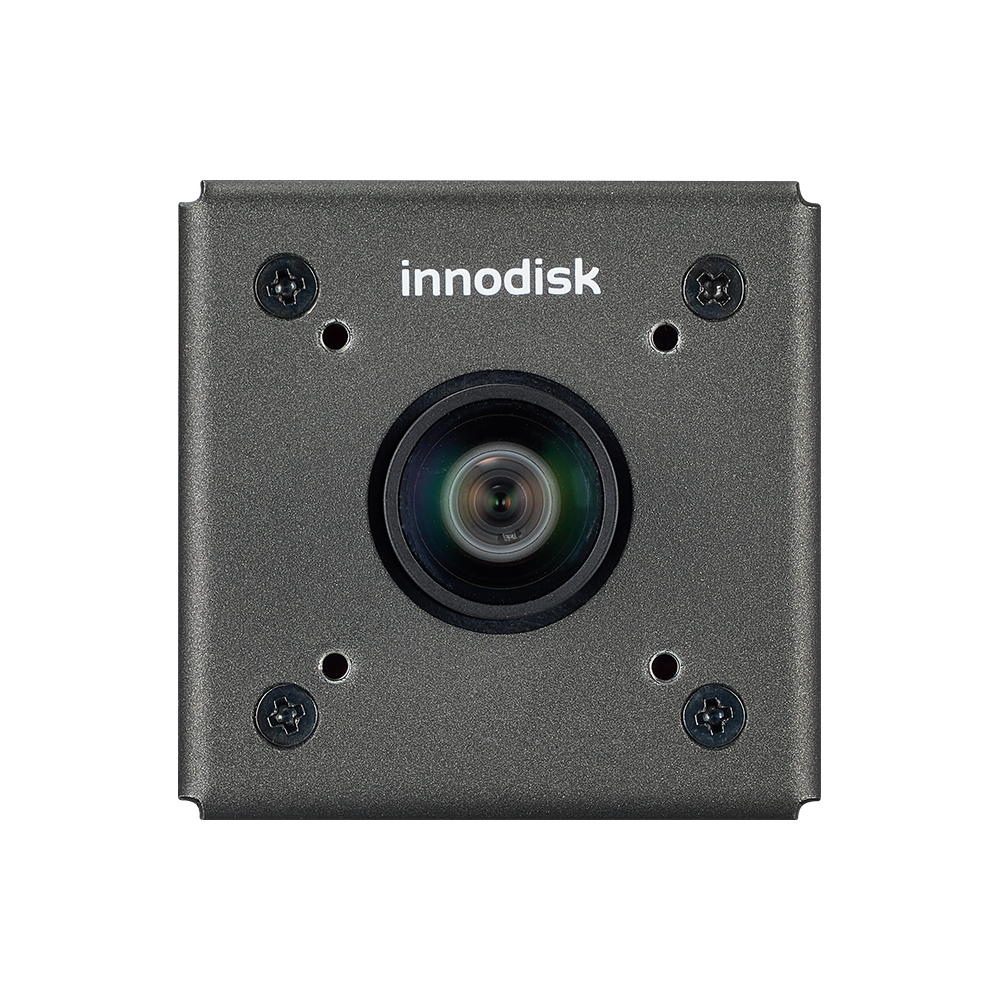

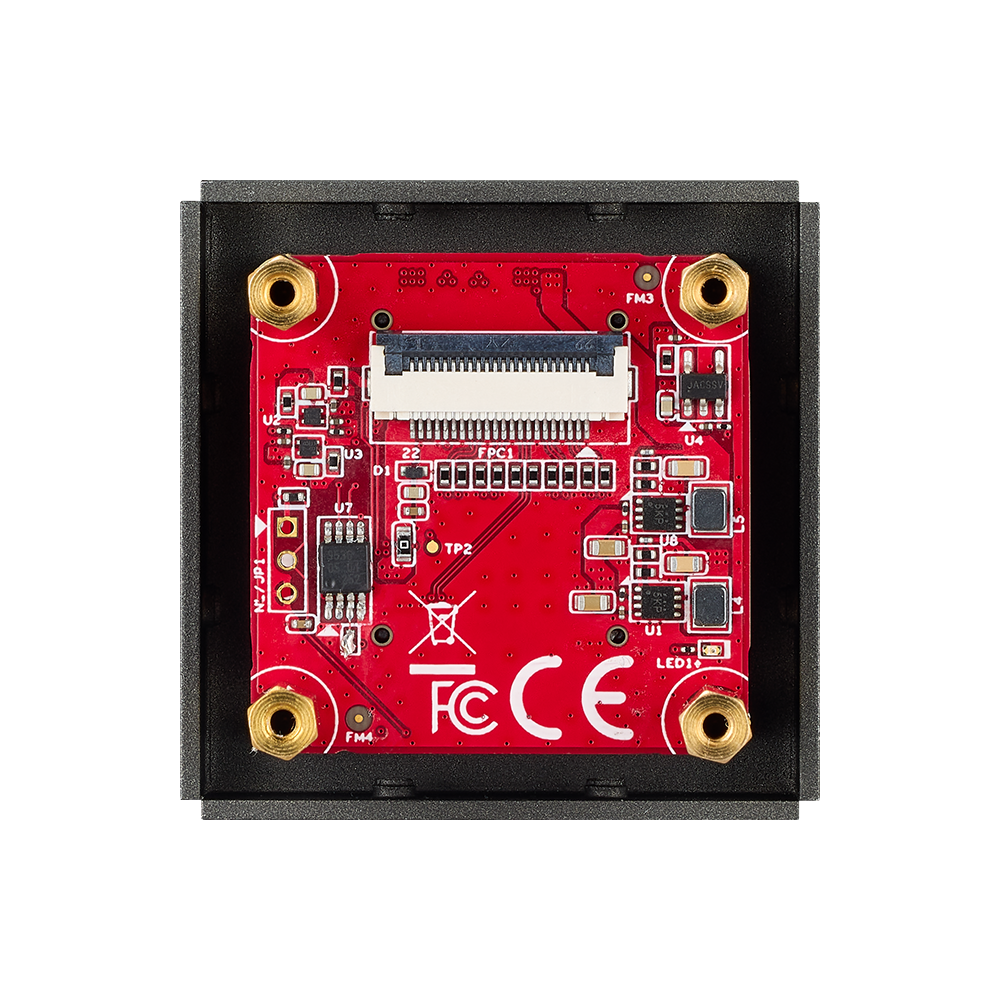

MIPI CSI-2 8MP Fixed Focus Camera Module

EV8M-OOM1-RHCF

Features

  • MIPI CSI-2 interface, max resolution 8MP @30fps
  • Lens FOV (D / H / V) : 107° / 100° / 67°
  • Supports HDR, External Trigger, and Integrated Image Signal Processor (ISP)
  • Dynamic Range: 120dB
  • Complies with CE / FCC Class A
  • Platform Support: NVIDIA Jetson Orin, Intel

  Camera Product Driver Support Table >

BORN FOR SUPERIOR PERFORMANCE

Innodisk's 8MP MIPI CSI-2 Camera Module delivers high-quality imaging at up to 30fps, making it ideal for real-time applications. With built-in ISP, support for HDR, and external trigger functionality, it ensures precise image capture in dynamic lighting environments. Featuring a wide 120dB dynamic range, the product captures fine details in both bright and dark areas, offering a reliable vision solution for embedded systems, industrial automation, and edge AI computing.

HDR FOR SUPERIOR IMAGE CLARITY

Innodisk's MIPI CSI-2 Camera Module features cutting-edge HDR technology, ensuring exceptional image clarity and sharpness even in challenging lighting conditions. By effectively extending the dynamic range, HDR technology captures intricate shadow details and vivid highlights, delivering images with unparalleled realism and natural balance.

TAILORED TO YOUR SPECIFIC NEEDS

PCBA CUSTOMIZATION

Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.

IMAGE QUALITY TUNING

With an integrated Image Signal Processor (ISP), we enable to optimize image quality while saving development resources.

VERSATILE LENS SUPPORT

A wide range of lenses empowers you to capture stunning images in any situation.

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

SURVEILLANCE & SAFETY
SURVEILLANCE & SAFETY

Provides high-resolution imaging with HDR capabilities for clear and detailed monitoring, even in challenging lighting conditions.

AUTONOMOUS MOBILE ROBOT (AMR)
AUTONOMOUS MOBILE ROBOT (AMR)

Enables precise navigation and object detection, ensuring reliable performance in dynamic environments.

AUTOMATED GUIDED VEHICLE (AGV)
AUTOMATED GUIDED VEHICLE (AGV)

Enhances path tracking and obstacle avoidance with high-quality imaging, ideal for industrial and logistic operations.

SPECIFICATIONS

Model NameEV8M-OOM1-RHCF
Module TypeMIPI CSI-2 8MP Fixed Focus Camera Module
Resolution (Max.)8MP
Frame Rate (Max. Resolution)30fps
Output I/FMIPI CSI-2
Sensoronsemi AR0822
ShutterRolling
Video FormatYUV422
Power ConsumptionApproximate 1W (YUV422 @Max. Resolution)
Operating Temperature-30°C ~ 70°C
Sensor Size1/1.8”
Pixel Size2.0µm
Chroma TypeColor
Lens TypeFixed Focus (M12)
Dimensions (W x L x H/mm)30 x 30 x 41 39 x 39 x 41 (Open Front Housing)
Lens FOV (D / H / V)107° / 100° / 67°
Platform SupportNVIDIA Jetson Orin, Intel
HousingBoard Level, Open Front Housing
FeaturesHDR
Warranty3 Years
NoteFor detailed resolution and frame rate combined application, please refer to product datasheet. For more platform support, please contact our local sales.

ORDER INFORMATION

P/N

Description

EV8M-OOM1-RHCF-11MIPI CSI-2 8MP Fixed Focus Camera Module
(FFC cable included)
EV8M-OOM1-RHCF-21MIPI CSI-2 8MP Fixed Focus Camera Module, Open Front Housing
(FFC cable included)
7W7000000060FFC cable 15cm, 22 pins, pitch 0.5mm
