LAN
M.2 2280 to Dual 10GbE LAN Module
EGPL-T203
Powered by
Intel E610-XAT2 / E610-XAIT2 Ethernet Controller
Features
- Lowest power and smallest 10GbE expansion solution
- Tiny daughter board with a high-speed shielding cable
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Support DPDK 25.07 and PTP
- SR-IOV support up to 16VFs shared across all ports
- Operating temperature: -40°C ~ 85°C (Ta)

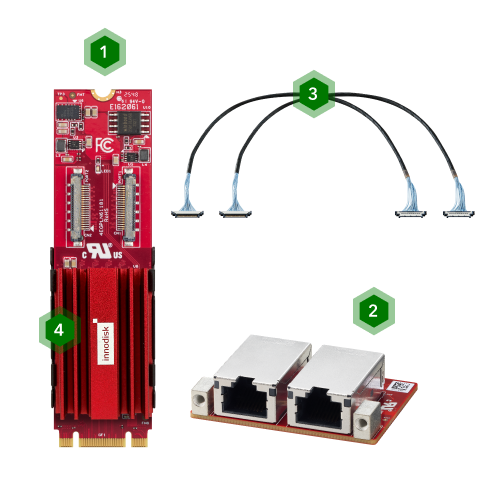

PRODUCT DETAILS AT A GLANCE
- 1LAN Connector

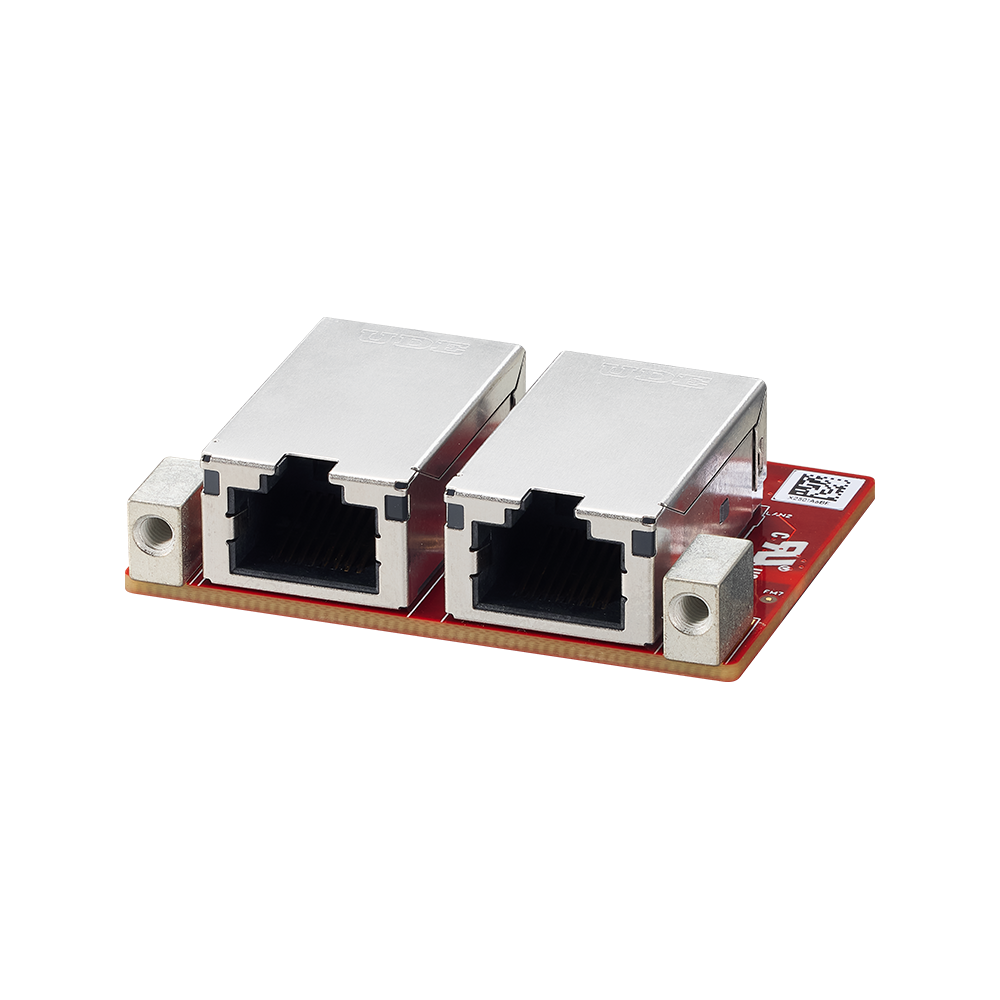

- 2RJ45 Connector ( Daughterboard)
- 325cm High Speed Coaxial Cable
- 4Heatsink
The Innodisk EGPL-T203 10GbE High-Speed LAN Module is a compact M.2 2280 to Dual networking solution, purpose-built for space-constrained edge environments. Powered by a high-performance controller, the module delivers high-throughput, low-latency networking with support for DPDK, PTP, and SR-IOV to accelerate data-intensive workloads.
Its innovative daughter-board architecture enables easy integration into diverse system designs. With industrial reliability and performance, EGPL-T203 empowers smart manufacturing, AGV/AMR, and other edge AI applications.

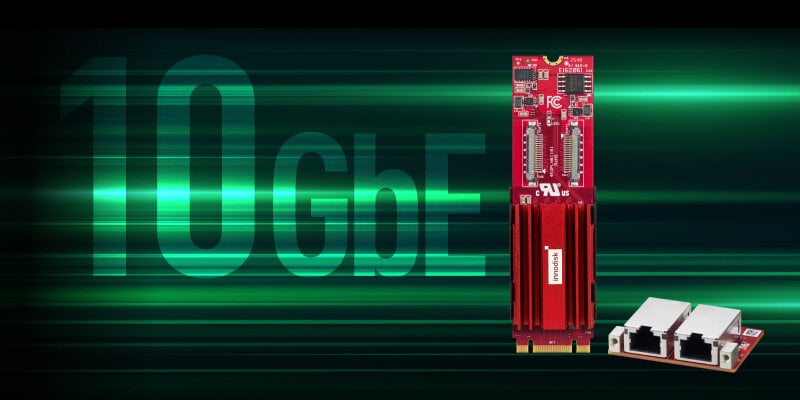

UNLEASH FULL-SPEED NETWORKING
Powered by an advanced Intel E610-XAT2 / E610-XAIT2 controller, the LAN module unlocks high-throughput, low-latency 10GbE connectivity. Full support for DPDK, PTP, and SR-IOV ensures peak performance for data-intensive and latency-sensitive workloads.

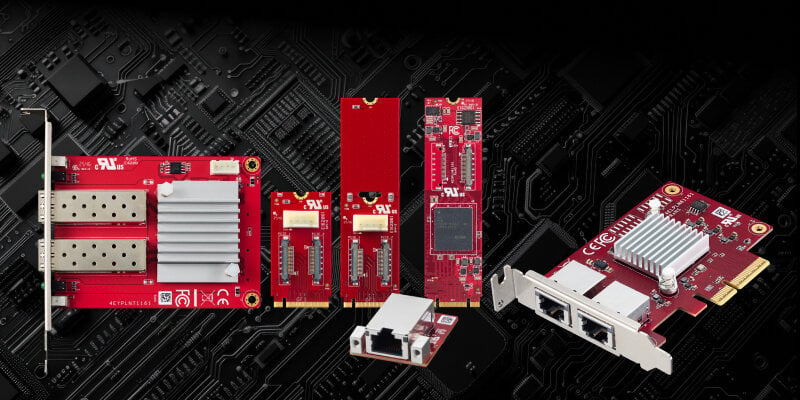

VERSATILE DESIGN FOR RAPID DEPLOYMENT
Available in M.2 2242, M.2 2280, and PCIe low-profile form factors, the 10GbE LAN module series eliminates the need for costly system redesigns. The compact design allows seamless networking upgrades even in systems with extreme space constraints, significantly reducing time-to-market.

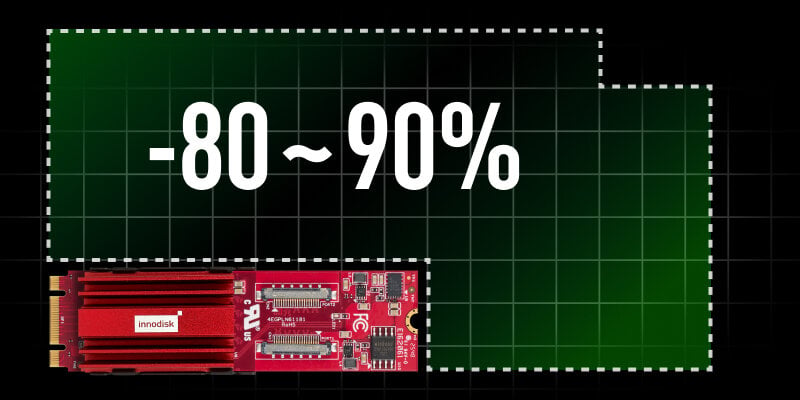

THE WORLD’S SMALLEST 10GbE SOLUTION
Recognized as the world‘s smallest M.2 10GbE expansion solution, the EGPL-T203 is over 80-90% smaller than standard or low-profile PCIe cards on the market. It features a flexible, tiny daughter board with a high-speed shielding cable for effortless integration.

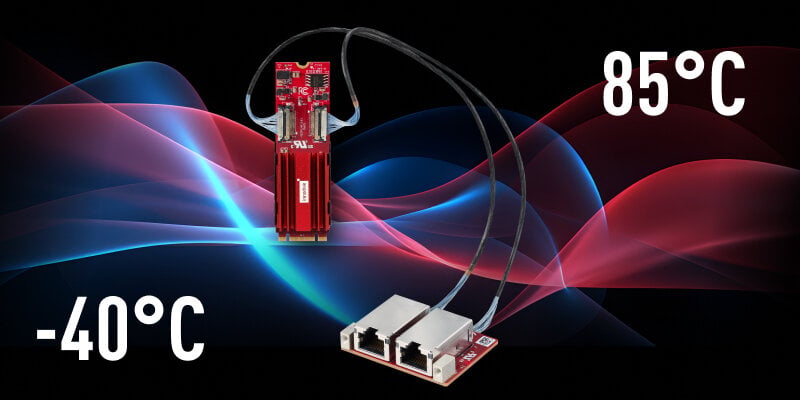

INDUSTRIAL-GRADE WIDE-TEMP SUPPORT
Engineered to operate reliably in extreme edge environments, supporting industrial temperature ranges from -40°C to 85°C (Ta).
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
AGV / AMR
Delivers high-throughput, low-latency connectivity for synchronized fleet coordination and reliable sensor streaming.
SMART FACTORY DEFECT DETECTION
Enables fast, stable image transmission for machine vision, allowing real-time part detection and positioning.
INDUSTRIAL CONTROL
Provides higher bandwidth and lower latency for precise equipment coordination and stable sensor data streaming in automation systems.
NVR SURVEILLANCE
Ensures smooth multi-camera 4K streaming and dependable video storage without frame drops under heavy loads.
SPECIFICATIONS
| Model Name | EGPL-T203 |
|---|---|
| Module Type | M.2 2280 to Dual 10GbE LAN Module |
| Form Factor | M.2 2280 B+M Key |
| Function | LAN |
| Input I/F | PCIe Gen 4 x2 |
| Output I/F | 10GbE LAN |
| Output Port | 2 |
| Output Connector | RJ45 |
| Max. Power Consumption | 5W (3.3V, 1.5A) |
| Dimension (W x L x H/mm) | M.2 Board : 22 x 80 x 14.5 Daughter Board : 31.75 x 28 x 17.7 |
| Temperature | Operation : S/T 0 ~ 70°C (Ta) ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 11 and above versions Linux : Kernel 6.18 and above versions |
| Warranty | 3 Years |
ORDER INFORMATION
| P/N | 简介 |
EGPL-T203-C1 | M.2 2280 to Dual 10GbE LAN Module W/STD-BKT |
EGPL-T203-C2 | M.2 2280 to Dual 10GbE LAN Module W/LOW-BKT |
EGPL-T203-W1 | M.2 2280 to Dual 10GbE LAN Module WT W/STD-BKT |
EGPL-T203-W2 | M.2 2280 to Dual 10GbE LAN Module WT W/LOW-BKT |
