M.2
PCIe Gen4 Solution

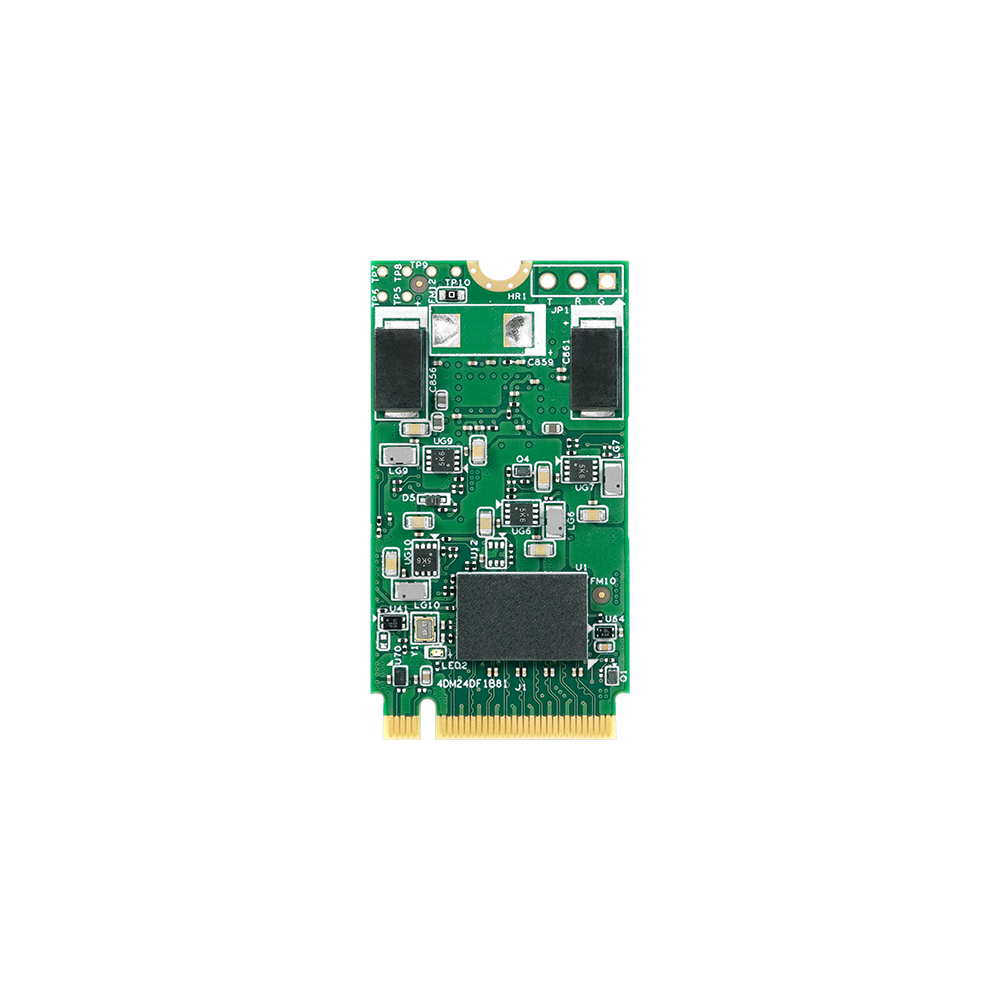

M.2 (P42) 4TE2 iCell
Features
- PCIe Gen 4 x4, NVMe 1.4
- PLP (iCell) technology for power loss protection
- Excellent data transfer Speed
- Dynamic thermal management
- Support iPower Guard & iData Guard
- Support TCG Opal 2.0 (Optional)
- 256 bit AES hardware based encryption
The M.2 (P42) 4TE2 iCell is a DRAM-less NVMe SSD featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Compliant with the NVMe 1.4 protocol, it delivers exceptional performance and high reliability. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.
iCell Technology – POWER LOSS PROTECTION
Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.
AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
iData Guard – DATA PROTECTION TECHNOLOGY
iData Guard enables the immediate sending of a command in the event of a sudden power failure, interrupting read and write commands from the system and ensuring that the last command can be completed. This preserves data integrity on the SSD, protecting data security.
iPower Guard – POWER PROTECTION TECHNOLOGY
iPower Guard is a proactive protection mechanism designed for environments with unstable power supplies. It provides further protection for SSDs during both startup and shutdown, preventing system performance issues caused by power instability.
TAILORED TO YOUR SPECIFIC NEEDS
HEAT SINK CUSTOMIZATION
Innodisk provides different types of heat sinks to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
COMMUNICATION
Our solutions ensure reliable and uninterrupted performance, supporting networking and critical telecom infrastructure even under heavy loads.
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
RETAIL
Powering smart retail systems, our solutions enable efficient inventory management, seamless point-of-sale operations, and insightful customer analytics.
SPECIFICATIONS
| Model Name | M.2 (P42) 4TE2 iCell |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | M.2 2242 M Key |
| Capacity | 128GB ~ 1TB |
| Sequential R / W (MB/sec, max.) | 1,750 / 1,550 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 852 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 3.3W |
| Max. Channels | 2 |
| External DRAM Buffer | N |
| Features | PLP (iCell), AES, TCG Opal 2.0, H/W Write Protect, S.M.A.R.T. |
| Dimension (W x L x H/mm) | S/T : 22.0 x 42.0 x 3.8 W/T with heatsink : 25.0 x 42.0 x 14.5 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 3 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
128GB | DEM24-A28DF1KCADFP | DEM24-A28DF1KWADFPH |
256GB | DEM24-B56DF1KCADFP | DEM24-B56DF1KWADFPH |
512GB | DEM24-C12DF1KCADFP | DEM24-C12DF1KWADFPH |
1TB | DEM24-01TDF1KCADFP | DEM24-01TDF1KWADFPH |
For TCG OPAL function, the PN Code 10th ~ 12th will be DF2.
