M.2
PCIe Gen4 Solution
M.2 (P110) 4TG2-P
Features
- Up to 7,100 / 5,400 MB/s read and write performance
- Supports temperature -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
- PLP (iCell) technology for power loss protection

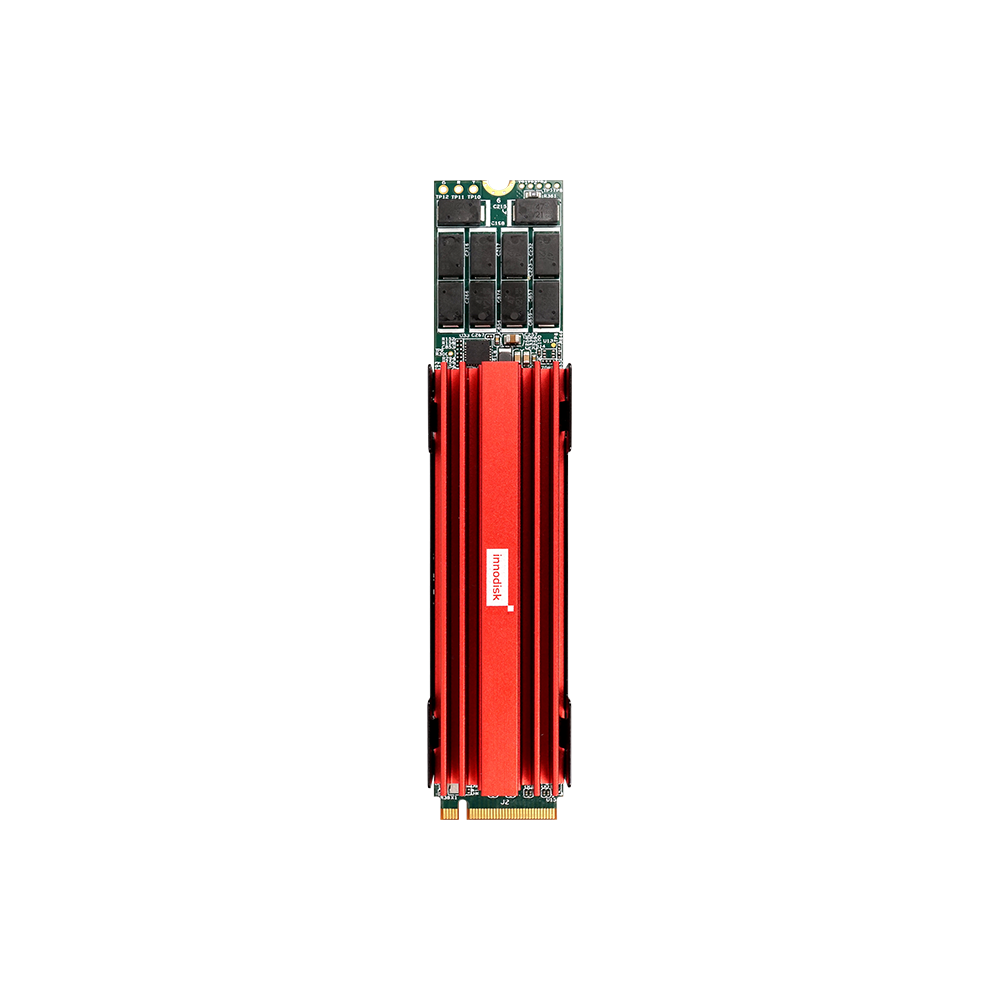

The Innodisk M.2 (P110) 4TG2-P is an NVMe SSD in the standard M.2 form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Equipped with its heat-dissipation design, the M.2 (P110) 4TG2-P efficiently disperses heat generated by the ICs, ensuring stable SSD performance. It also features Die RAID protection to reduce the occurrence of bad blocks and optimize data integrity.
ENSURING STABILITY IN EXTREME ENVIRONMENTS
The M.2 (P110) 4TG2-P supports a wide temperature range from -40°C to 85°C and incorporates a Dynamic Thermal Throttling mechanism for real-time SSD monitoring. When the temperature reaches a critical threshold, it automatically issues commands to smoothly reduce read and write speeds, maintaining operational stability.
iCell Technology – POWER LOSS PROTECTION
Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.
AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
TAILORED TO YOUR SPECIFIC NEEDS
HEAT SINK CUSTOMIZATION
Innodisk provides different types of heat sinks to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
COMMUNICATION
Our solutions ensure reliable and uninterrupted performance, supporting networking and critical telecom infrastructure even under heavy loads.
RETAIL
Powering smart retail systems, our solutions enable efficient inventory management, seamless point-of-sale operations, and insightful customer analytics.
SPECIFICATIONS
| Model Name | M.2 (P110) 4TG2-P |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | M.2 22110 M Key |
| Capacity | 512GB ~ 8TB |
| Sequential R / W (MB/sec, max.) | 6,950 / 4,700 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 19,886 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 10.2W |
| Max. Channels | 8 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Dimension (W x L x H/mm) | Pure M.2 : 22.0 x 110.0 x 2.87 S/T with heat-spreading copper layer : 22.0 x 110.0 x 3.3 W/T with heat sink : 25.0 x 110.0 x 14.45 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 3 Years |
ORDER INFORMATION
Operating Temperature | Standrad Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
512GB | DGM21-C12DP1KCBEFP | DGM21-C12DP1KWBEFPH |
1TB | DGM21-01TDP1KCBEFP | DGM21-01TDP1KWBEFPH |
2TB | DGM21-02TDP1KCBEFP | DGM21-02TDP1KWBEFPH |
4TB | DGM21-04TDP1KCBEFP | DGM21-04TDP1KWBEFPH |
8TB | DGM21-08TDP1KCCEF | DGM21-08TDP1KWCEFH |
For TCG Opal function, the PN Code 10th ~12th will be DP2.
