M.2 (P80) 4TG2-P

Product Features
  • PCIe Gen. IVx4, NVMe 1.4
  • Excellent data transfer speed
  • Stable sustained performance
  • Heat-spreading design
  • LDPC ECC engine supported.
  • Thermal Throttling management
Featured Technologies:
Application:
Overview Specs Order Information Related Resource +ADD TO INQUIRY

Overview:

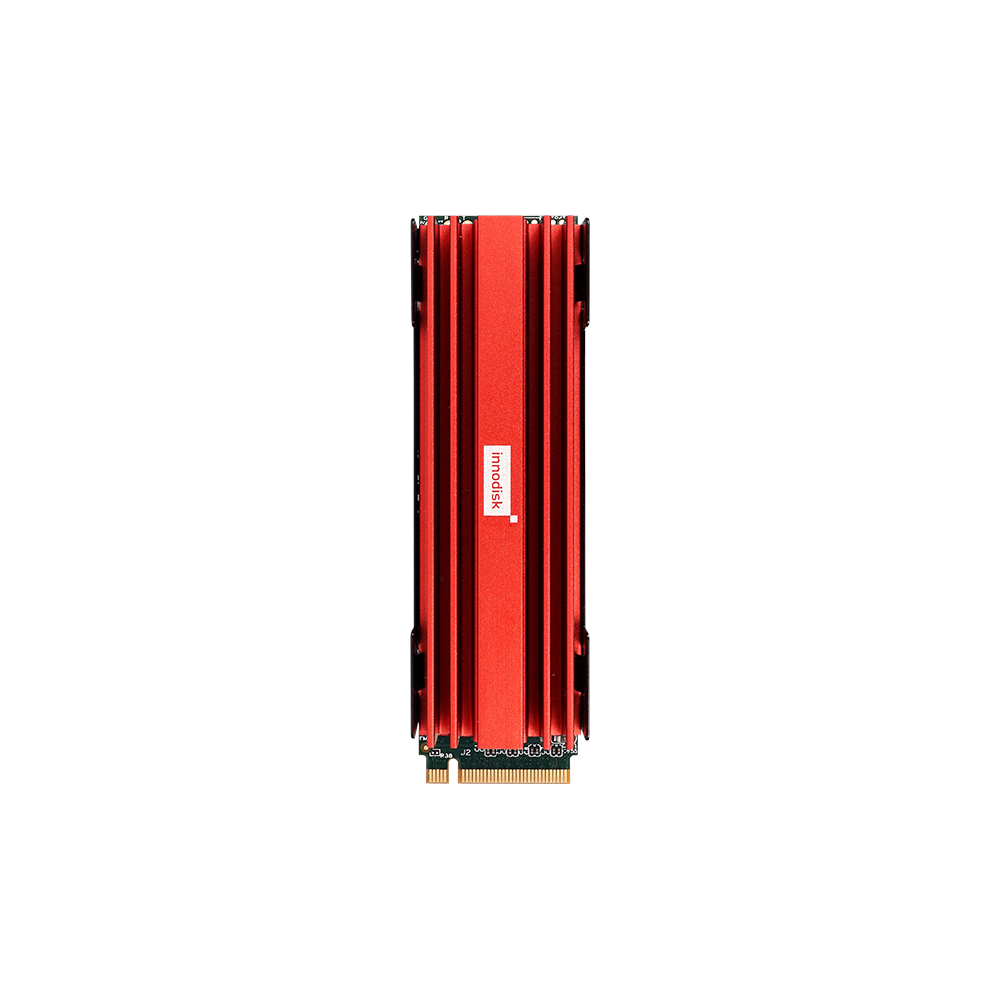

Innodisk M.2 (P80) 4TG2-P is an NVM Express SSD designed as the standard M.2 form factor with PCIe interface and 3D TLC NAND Flash. M.2 (P80) 4TG2-P supports PCIe Gen. 4x4, and it is compliant with NVMe 1.4 providing excellent performance. M.2 (P80) 4TG2-P with heat-spreading design dissipate heat generating from IC making SSD perform more steady. M.2 (P80) 4TG2-P has Die RAID protection to reduce bad blocks happening and optimize data integrity.

Innodisk M.2 (P80) 4TG2-P provides ultra-speed and high IOPS and offers maximum capacity up to 4TB, making the SSD optimal for server and heavy data workload applications.

Specifications:

Model NameM.2 (P80) 4TG2-P
InterfacePCIe Gen. IV x4
Flash Type3D TLC
Capacity512GB~4TB
Sequential R/W (MB/sec, max.)7,100/5,800
Max. Power Consumption7.9W
Max. Channels8
Thermal SensorY
External DRAM BufferY
H/W Write ProtectN
Dimension (WxLxH/mm)ST with heat-spreading copper layer: 22.0 x 80.0 x 4.1
WT with heatsink: 25 x 80.0 x 14.45
Pure M.2: 22.0 x 80.0 x 3.5
Vibration[email protected]~2000Hz
Shock[email protected]
MTBF>3 million hours
Storage Temperature-40°C ~ +85°C

Order Information:

Operation Temp. 512GB 1TB 2TB 4TB
Standard Grade (0°C ~ +70°C) DGM28-C12DP1KCAEF DGM28-01TDP1KCAEF DGM28-02TDP1KCAEF DGM28-04TDP1KCAEF
Industrial Grade (-40°C ~ +85°C) DGM28-C12DP1KWAEFH DGM28-01TDP1KWAEFH DGM28-02TDP1KWAEFH DGM28-04TDP1KWAEFH
