EDSFF
Advanced Storage For Data Center

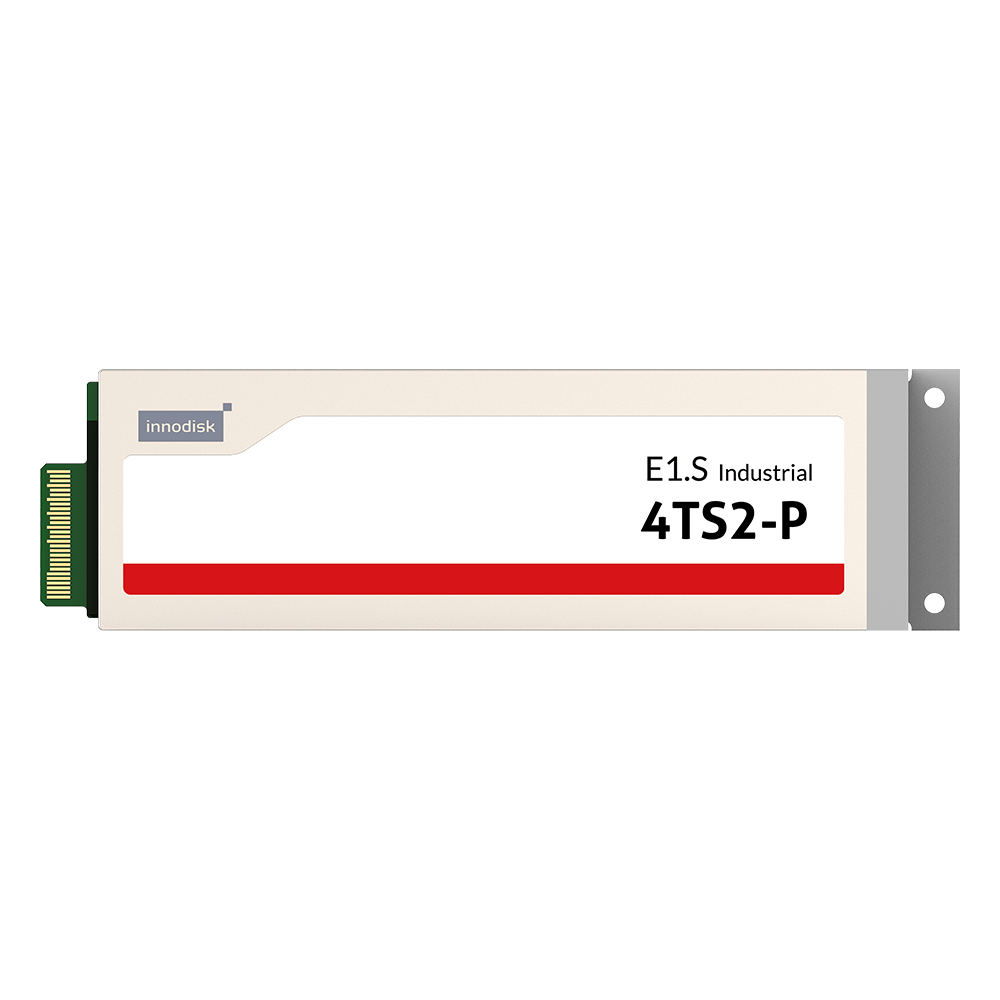

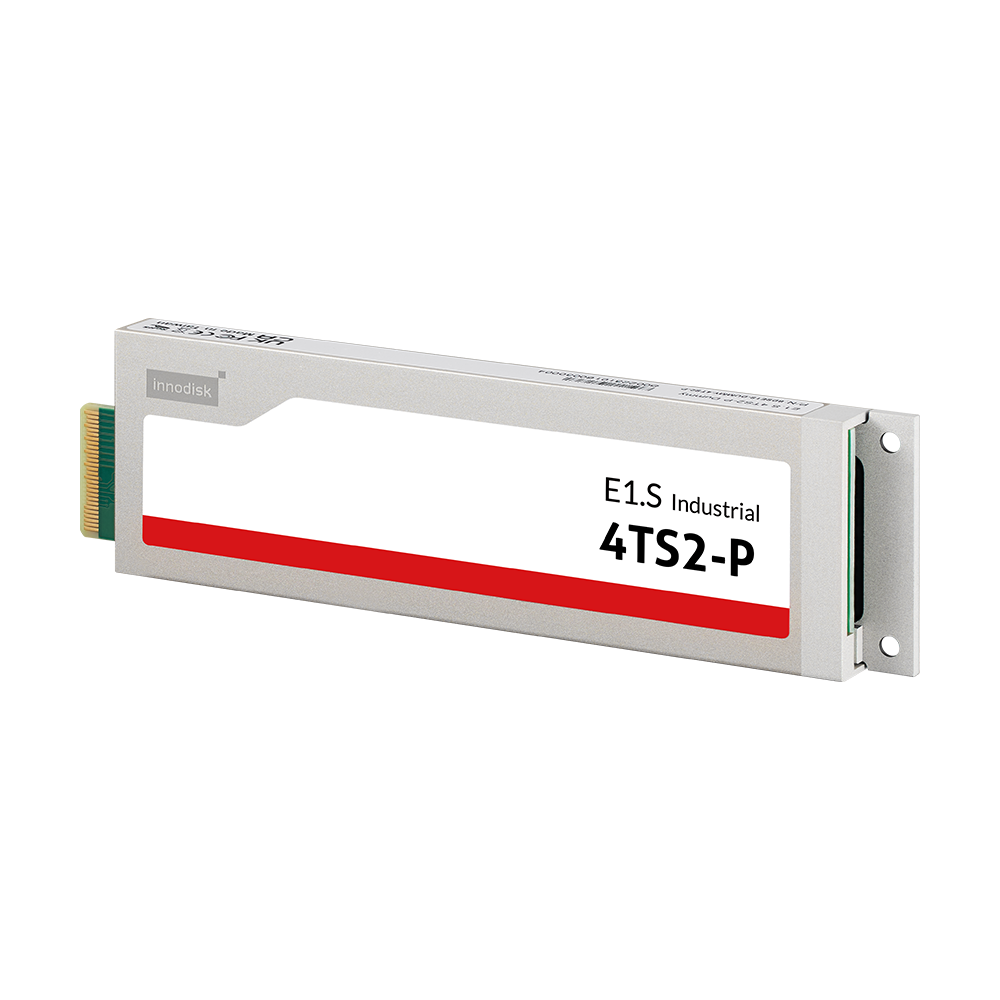

E1.S 4TS2-P
Features
- Up to 6,900 / 4,700 MB/s read and write performance
- Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
- High storage density up to 8TB on a single E1.S drive
- PLP (iCell) technology for power loss protection
- Compliant with SSD Endurance Workloads JESD219
- Equipped with hot-swap and advanced features, suitable for data center boot drives
The Innodisk E1.S 4TS2-P is an NVMe SSD in the standard E1.S form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. This series offers high DWPD, wide temperature support, and up to 6.4TB of capacity, making it ideal for edge server applications. Enhanced thermal management and hot-swap functionality, along with Innodisk’s SSD maintenance features, position it as the new mainstream choice for data center boot drives.
WIDE TEMPERATURE TOLERANCE FOR EXTREME SCENARIOS
The E1.S 4TS2-P is engineered for superior thermal management in edge servers, with a temperature range of -40°C to 85°C. Its unique form factor and Dynamic Thermal Throttling mechanism enable sustained peak performance under intensive workloads. Additionally, Innodisk's 15mm asymmetrical heatsink design ensures exceptional heat dissipation and efficiency.
MAXIMIZED STORAGE CAPACITY
The E1.S 4TS2-P features an advanced design that significantly increases storage density, offering up to 6.4TB of capacity on a single drive. Even within the compact space of a 1U server, it provides exceptional storage performance and flexibility to the system.
iCell Technology – POWER LOSS PROTECTION
Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.
AES 256-bit DATA ENCRYPTION & TCG OPAL 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
ENHANCING UPTIME FOR DATA CENTER BOOT DRIVES
In addition to enhanced thermal management, the E1.S 4TS2-P is equipped with hot-swap capability, reducing downtime to meet the 24/7 uptime demands of data center boot drives. Innodisk has also developed auxiliary features tailored to application needs, including SSD event logs, self-monitoring, online firmware updates, and out-of-band (OOB) management. These features allow users to perform real-time maintenance and troubleshooting, ensuring stable system operation.
TAILORED TO YOUR SPECIFIC NEEDS
HEAT SINK CUSTOMIZATION
Innodisk provides different heights of heat sinks to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSFORMING DATA CENTER WITH EFFICIENCY
The rising trend of edge AI is driving the need for data storage and SSDs that support high-capacity tasks with high performance and low latency.
SPECIFICATIONS
| Model Name | E1.S 4TS2-P |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | E1.S |
| Capacity | 400GB ~ 6.4TB |
| Sequential R / W (MB/sec, max.) | 6,900 / 4,650 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 9,400 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 12.4W |
| Max. Channels | 8 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Series | Data Center SSD |
| Dimension (W x L x H/mm) | 5.9mm : 31.5 x 111.5 x 5.9 9.5mm : 33.75 x 118.75 x 9.5 15mm : 33.75 x 118.75 x 15.0 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 5 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade | Industrial Grade |
| 400GB | DSE1S-400DP2KCAEFP% | DSE1S-400DP2KWAEFP% |
| 800GB | DSE1S-800DP2KCAEFP% | DSE1S-800DP2KWAEFP% |
| 1.6TB | DSE1S-1T6DP2KCAEFP% | DSE1S-1T6DP2KWAEFP% |
| 3.2TB | DSE1S-3T2DP2KCAEFP% | DSE1S-3T2DP2KWAEFP% |
| 6.4TB | DSE1S-6T4DP2KCBEFP% | DSE1S-6T4DP2KWBEFP% |
Operation temperature based on temperature obtained from S.M.A.R.T.
% : Non-existent=5.9mm / H=9.5mm enclosure / H1=15mm enclosure
E1.S 4TS2-P specifications are subject to change.
