InnoAgent EZ2N-0XL1
InnoAgent EZ2N-0XL1
InnoAgent EZ2N-0XL1
InnoAgent EZ2N-0XL1
InnoAgent EZ2N-0XL1

OOB

Out-of-band Remote Management Module

InnoAgent EZ2N-0XL1

Supports

  • Remote power on / off / reset
  • Programmable remote control GPIO
  • Optional support I2C Function
  • Standard MQTT network connection protocol
  • Remote UART / RS232 data transmission

Features

  • OT device without network connection
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Operating temperature from -40°C to 85°C

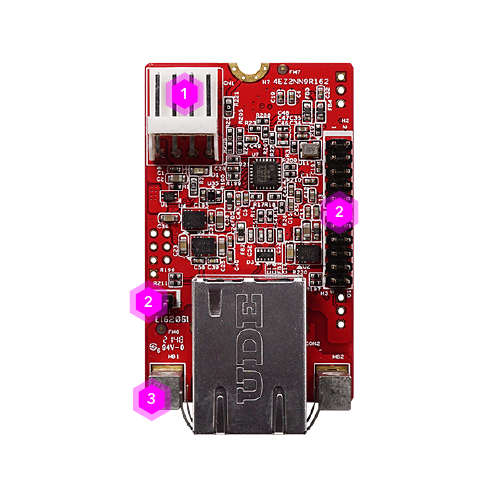

PRODUCT DETAILS AT A GLANCE

  1. 1Power Connector
  2. 2Pin Header
  3. 3PCB Terminal
EDGE AI FPGA Solution in Factory Automation
BORN FOR SUPERIOR PERFORMANCE

InnoAgent is a powerful out-of-band (OOB) module that ensures continuous remote access to your edge devices, even when traditional management methods fail. Through its independent communication channel, this virtual agent enables seamless monitoring, maintenance, and troubleshooting—including remote reboots.

SEAMLESS REMOTE DEVICE MANAGEMENT

InnoAgent offers robust remote management capabilities, enabling administrators to power cycle, troubleshoot, and reboot devices even without standard network access. Additionally, it facilitates the retrieval of critical data and system logs, ensuring seamless maintenance and efficient issue resolution.



RELIABLE IN-BAND HEARTBEAT MONITORING

Leverages heartbeat frames to continuously monitor the status of the network, devices, and InnoAgent. This advanced technology ensures you stay informed about device health and system status. In the event of a system crash or device shutdown, InnoAgent can automatically reboot your system without requiring on-site intervention, even during network interruptions.


FLEXIBLE INTEGRATION AND DEVELOPMENT OPTIONS

InnoAgent offers flexible integration solutions for every development need. Choose between our SDK-enabled hardware module for custom cloud integration or our turnkey iCAP solution for rapid, plug-and-play deployment. Seamlessly adapt to your infrastructure with unparalleled development versatility.



IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

SMART FACTORY
SMART FACTORY

Enhancing production efficiency, our out-of-band management solutions enable remote reboots, minimize downtime, and reduce reliance on on-site technical support, lowering maintenance costs.

SMART RETAIL
SMART RETAIL

Enabling remote batch management and rapid issue resolution, our solutions enhance efficiency and ensure seamless customer experiences with reliable payment systems and digital signage.

SMART CITY
SMART CITY

Ensuring uninterrupted operation of critical services, our solutions enhance infrastructure reliability and minimize manual intervention for smarter, safer cities.

HEALTHCARE
HEALTHCARE

Optimized for medical environments, our solutions ensure reliable performance, minimize downtime, and reduce maintenance costs with remote management capabilities.

SPECIFICATIONS

Model NameInnoAgent EZ2N-0XL1
Network I/F10 / 100 Mbps LAN (RJ45)
Network ProtocolMQTT
Host I/F3.3V UART, RS232 (Pitch 2.0mm Pin Header)
Remote Control I/O6 x 3.3V GPIO (2 GPIO Can be I²C) 2 x Power SW (Pitch 2.0mm Pin Header)
Factory ResetPitch 2.0mm Pin Header
Power Source+5V Standby Power Input (4pin floppy male connector)
Max. Power Consumption1.125W (5V, 225mA)
Dimension (W x L x H/mm)51 x 31.3 x 19.05
TemperatureOperation : -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration5G@[7~2000Hz]
Shock[email protected]
Warranty3 Years
NotesProvide MQTT topic and payload for third party cloud platform.

ORDER INFORMATION

P/N

Description

EZ2N-0XL1-W1

Out-of-band Remote Management Module, Private Cloud : SDK, iCAP 2.0

EZ2N-0XL1-W3

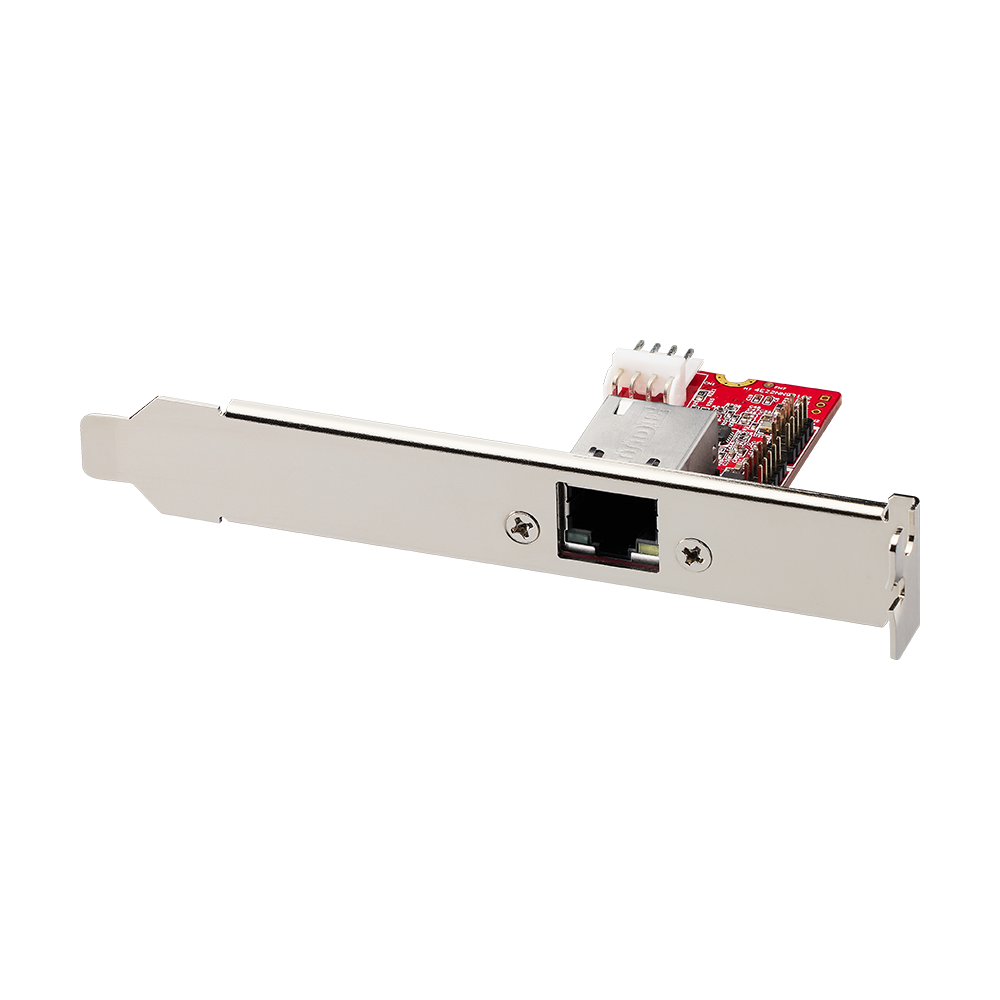

Out-of-band Remote Management Module, Private Cloud : with Standard Bracket

EZ2N-0XL1-W4

Out-of-band Remote Management Module, Private Cloud : with Low-Profile Bracket
