InnoEx Virtual I/O
LAN to Triple USB / Single HDMI
InnoEx-IPCKVM
Features
- Expands I/O through virtualization technology
- Extends I/O via RJ45 Ethernet
- Simulates remote I/O on local computer
- Keeps I/O behavior and data format. No change of I/O operation
- Supports PoE connection (optional), compliant with IEEE 802.3at/af
- Supports display output of HDMI 1.4

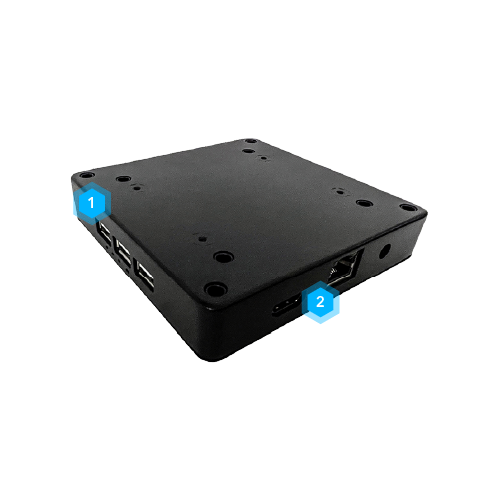

PRODUCT DETAILS AT A GLANCE
- 1USB 2.0 Port
- 2RJ45 Ethernet
The InnoEx-IPCKVM expands I/O through virtualization via RJ45 Ethernet, simulating remote I/O on a local computer while preserving I/O behavior and data format, as well as extend their range up to 100m1 from LAN to LAN. It supports optional PoE (IEEE 802.3at/af), HDMI 1.4 display output, and 3 USB 2.0 ports (5V1A per port). Designed for industrial environments, it operates in temperatures from -10ºC to 85ºC and is manufactured by Innodisk Taiwan.
(Note 1. Signal strength may be weakened due to site conditions and equipment deployment. A recommended deployment distance is 80 meters, or use with a switch.)
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
EDGE SERVER
Designed for edge computing, our products ensure stable performance in harsh conditions, supporting real-time data processing at the edge device.
DATA CENTER
Driving the backbone of modern computing, our solutions deliver high performance and reliability for data-intensive operations.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
RETAIL
Powering smart retail systems, our solutions enable efficient inventory management, seamless point-of-sale operations, and insightful customer analytics.
HEALTHCARE
We integrate AI into healthcare with advanced solutions, meeting strict medical demands.
SPECIFICATIONS
| Model Name | InnoEx-IPCKVM |
|---|---|
| Module Type | LAN to Triple USB / Single HDMI |
| Form Factor | Other |
| Function | InnoEx Virtual I/O |
| Input I/F | LAN |
| Output I/F | USB 2.0, HDMI |
| Output Port | 4 |
| Output Connector | 1 x HDMI, 3 x USB 2.0 (Type A connector) |
| Max. Power Consumption | -- |
| Dimension (W x L x H/mm) | 115 x 115 x 22 |
| Temperature | Operation : -10°C ~ 85°C (Ta) Storage : -20°C ~ 90°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10(32 / 64bit), and above version Linux : Kernel 4.4 and libssl 1.0 above |
| Warranty | 3 Years |
| Notes | HDMI supports Windows x86 only. |
ORDER INFORMATION
| P/N | Description |
EA1-9NIPCKVM1301 | InnoEx IPCKVM LAN to Triple USB / Single HDMI (LAN) |
EA1-9NIPCKVM1301-P | InnoEx IPCKVM LAN to Triple USB / Single HDMI (PoE) |
