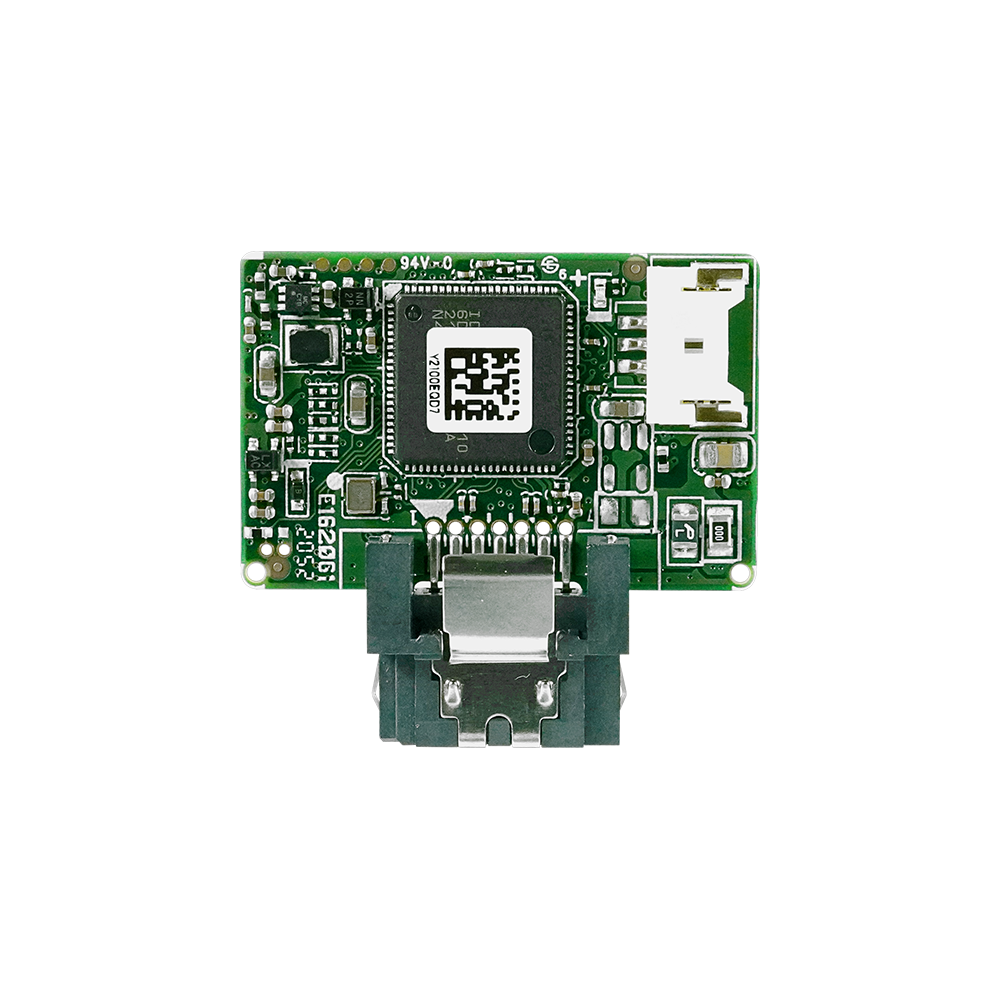

SATADOM-SL 3ME3 V2

SATADOM

8GB ~ 128GB

SATADOM-SL 3ME3 V2

Features

  • Built-in Pin 8 power supply
  • SATA 6.0Gb/s interface
  • High IOPS to reduce boot up timing
  • DRAM-less, 100% data integrity
  • Innovative firmware algorithm
  • Anti-vibration mechanical design
  • Built-in iData Guard
  • Supports wide temperature from -40°C to 85°C
BORN FOR SUPERIOR PERFORMANCE

Innodisk Serial ATA Disk on Module (SATADOM®) supports SATA III standard (6.0Gb/s) interface with excellent performance, and SATADOM-SL 3ME3 V2 is designed as the smallest form factor size that could enhance compatibility with various design applications.

The innovative Pin 8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on a customer’s system without an additional power cable. Besides, the boot time and power consumption are lower than those of a hard disk drive (HDD), and it operates reliably in harsh environments while complying with the ATA protocol. No additional drivers are required, and the SSD can be configured as a boot device or data storage device.

Cable-less Power – SIMPLIFIED CONNECTIVITY

Innodisk’s SATADOM SSDs are designed to integrate seamlessly into embedded systems, industrial computers, or server motherboards. With our patented Pin 7 / Pin 8 Vcc technology, these drives enable plug-and-play functionality, eliminating the need for additional power cables and ensuring a streamlined, cable-free setup.



  Cable-less Power >

iData Guard – DATA PROTECTION TECHNOLOGY

iData Guard enables the immediate sending of a command in the event of a sudden power failure, interrupting read and write commands from the system and ensuring that the last command can be completed. This preserves data integrity on the SSD, protecting data security.

  iData Guard >

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

INDUSTRIAL / EMBEDDED
INDUSTRIAL / EMBEDDED

Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.

AUTOMATION
AUTOMATION

Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.

SPECIFICATIONS

Model NameSATADOM-SL 3ME3 V2
Flash TypeMLC
InterfaceSATA III 6.0 Gb/s
Form FactorSATADOM-SL
Capacity8GB ~ 128GB
Sequential R / W (MB/sec, max.)200 / 80
P/E Cycle3,000
TBW (Max.)37
Storage Temperature-55°C ~ 95°C
Max. Power Consumption1.8W
Max. Channels1
External DRAM BufferN
FeatureS.M.A.R.T.
Dimension (W x L x H/mm)30.0 x 28.4 x 7.4
Vibration20G@[7 ~ 2000Hz]
Shock[email protected]
MTBF>3 million hours
Warranty2 Years

ORDER INFORMATION

Operating Temperature

Standard Grade

(0°C ~ 70°C)

Industrial Grade

(-40°C ~ 85°C)

8GB

DESSL08GD09*C1SCA

DESSL08GD09*C1SCB

DESSL08GD09*W1SCA

DESSL08GD09*W1SCB

16GB

DESSL16GD09*C1SCA

DESSL16GD09*C1SCB

DESSL16GD09*W1SCA

DESSL16GD09*W1SCB

32GB

DESSL32GD09*C1SCA

DESSL32GD09*C1SCB

DESSL32GD09*W1SCA

DESSL32GD09*W1SCB

64GB

DESSL64GD09*CADCA

DESSL64GD09*CADCB

DESSL64GD09*WADCA

DESSL64GD09*WADCB

128GB

DESSLA28D09*CADCA

DESSLA28D09*CADCB

DESSLA28D09*WADCA

DESSLA28D09*WADCB

*S : Toshiba A19nm MLC / B : Toshiba 15nm MLC
PN end with A : Pin 8 + power cable / B : Pin 8 + Pin 7
