mSATA
4GB ~ 256GB
mSATA 3IE3
Features
- SATA 6.0Gb/s interface
- iSMART disk health monitoring
- Intelligent error recovery system
- Excellent data transfer speed
- Zero mechanical interference
- Anti-vibration mechanical design
- JEDEC standard MO-300 dimension
- Supports wide temperature from -40°C to 85°C
Innodisk mSATA 3IE3 is designed with mSATA form factor by MO-300/MO-300B which established by JEDEC, and support SATA III standard (6.0 Gb/s) with excellent performance. Regarding of mechanical interference, Innodisk mSATA 3IE3 absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier.
Innodisk mSATA 3IE3 effectively reduces the booting time of operation system, and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drivers are required, and can be configured as a boot device or data storage device.
Write Protect – SAFEGUARDING DATA SECURITY
With Innodisk SSD’s built-in write protection technology, users can utilize the read-only function to safeguard critical data within flash storage devices, preventing unauthorized modification or malicious use.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

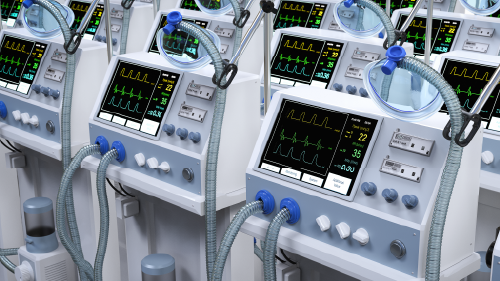

STABILITY-OPTIMIZED HARDWARE SOLUTIONS FOR LIFE-SAVING VENTILATORS
A leading European manufacturer of ICU ventilators and respirator solutions tasked Innodisk with supplying a significant volume of healthcare-optimized memory and storage solutions for their ventilators. Due to the extremely key role of ventilators, the memory and storage solutions needed to meet stringent stability requirements.
SPECIFICATIONS
| Model Name | mSATA 3IE3 |
|---|---|
| Flash Type | iSLC (MLC) |
| Interface | SATA III 6.0 Gb/s |
| Form Factor | MO-300 |
| Capacity | 4GB ~ 256GB |
| Sequential R / W (MB/sec, max.) | 440 / 230 |
| P/E Cycle | 20,000 |
| TBW (Max.) | 694 |
| Storage Temperature | -55°C ~ 95°C |
| Max. Power Consumption | 2.5W |
| Max. Channels | 4 |
| External DRAM Buffer | N |
| Feature | H/W Write Protect, S.M.A.R.T. |
| Dimension (W x L x H/mm) | 29.85 x 50.8 x 3.7 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 5 Years |
ORDER INFORMATION
| Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
4GB | DHMSR-04GD09BC1SC | DHMSR-04GD09BW1SC |
8GB | DHMSR-08GD09BC1&C | DHMSR-08GD09BW1&C |
16GB (4CH) | DHMSR-16GD08BC1QC | DHMSR-16GD08BW1QC |
16GB (2CH) | DHMSR-16GD09BC1DC | DHMSR-16GD09BW1DC |
32GB (4CH) | DHMSR-32GD08BC1QC | DHMSR-32GD08BW1QC |
32GB (2CH) | DHMSR-32GD09BC1DC | DHMSR-32GD09BW1DC |
64GB (4CH) | DHMSR-64GD08BC*QC | DHMSR-64GD08BW*QC |
64GB (2CH) | DHMSR-64GD09BC*DC | DHMSR-64GD09BW*DC |
128GB | DHMSR-A28D08BC*QC | DHMSR-A28D08BW*QC |
256GB | DHMSR-B56D08BCAQC | DHMSR-B56D08BWAQC |
*. PCB version control
&. S : 1 channel / D : 2 channels
