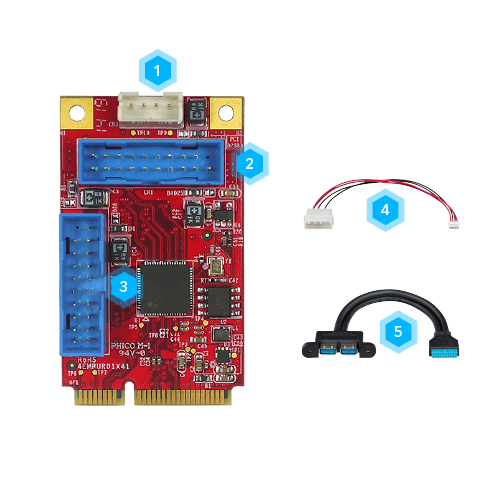

EMPU-3401

Product Features
  • PCI Express 2.0 to 4 x USB ports with SuperSpeed (5Gbps) data rate.
  • Independent 1.5A overcurrent protection (OCP) for each port.
  • Compliant with xHCI 1.0, USB 3.0 Rev 1.0.
  • Two USB ports from CN1 provides limited power natively.
  • Two USB ports from CN2 needs external power.
  • Supports USB Battery Charging Specification Revision 1.2.
  • Optional Industrial Temperature (-40°C to +85°C) support.
  • 30μ golden finger, 3 years warranty.
  • Industrial design, manufactured in innodisk Taiwan
Featured Technologies:
Application:
Specs Order Information Related Resource ADD TO INQUIRY

Specifications:

Module NameEMPU-3401
Module TypemPCIe to four USB 3.0 Module
Form FactormPCIe
Input I/FPCI Express 2.0
Output I/FUSB 3.0
Output connector19 Pin box header
Power Consumption1.12W (3.3V x 340mA)
Dimensions (W x L x H/mm)30.0 x 50.9 x 8.45
TemperatureOperation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C
Storage: -55°C ~ +95°C
EnvironmentVibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
NotesPlease download driver from MyInnodisk website.
Windows: XP(32 bit), 7(32/64 bit), Vista
Linux: Kernel v2.6.0, v2.6.8
*After Win8 and Linux Kernel v2.6.31 supports built-in
xHCI 1.0.

Order Information:

P/N Description
EMPU-3401-C1 Standard Temp.
EMPU-3401-W1 Wide Temp.
