ESPL-G401

Features

Complies with EN61000-4-5 2kV surge protection
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Optional industrial temperature (-40°C to 85°C) support
30μ” golden finger, 3-year warranty
Industrial design, manufactured in Innodisk Taiwan

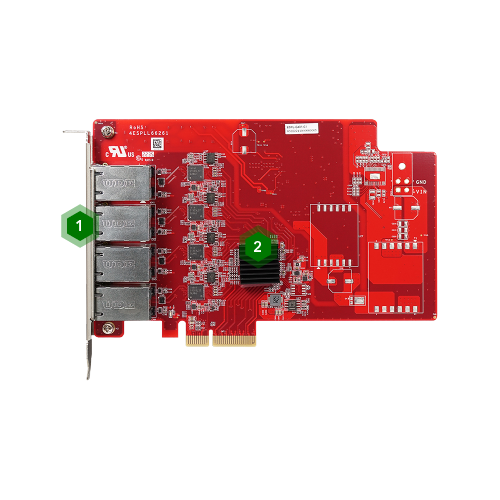

PRODUCT DETAILS AT A GLANCE

1RJ45 Port
2Heat Sink

EDGE AI FPGA Solution in Factory Automation

BORN FOR SUPERIOR PERFORMANCE

The ESPL-G401 is a high-performance network module that supports four GbE LAN ports, making it ideal for applications requiring multiple network connections. It is designed with 2kV surge protection in compliance with EN61000-4-5, ensuring reliable operation in harsh environments. The module also offers Optional industrial temperature support, ranging from -40°C to 85°C, providing versatility for a wide range of industrial applications. Featuring a 30μ” golden finger and backed by a 3-year warranty, the ESPL-G401 is manufactured by Innodisk Taiwan, ensuring industrial-grade durability and performance.

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

INDUSTRIAL / EMBEDDED

Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.

SURVEILLANCE & SAFETY

Delivering advanced analytics and instant response for modern surveillance needs.

AUTOMATION

Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.

SPECIFICATIONS

Model Name	ESPL-G401
Module Type	PCIe to Four GbE LAN Module
Form Factor	Standard PCIe
Function	LAN
Input I/F	PCI Express 2.1 x4
Output I/F	GbE LAN
Output Port	4
Output Connector	RJ45
Max. Power Consumption	2.1W (3.3V, 636mA)
Dimension (W x L x H/mm)	169.55 x 111.15 x 17.52
Temperature	Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	[email protected]
OS Support	Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version
Warranty	3 Years
Notes	● Please download driver from Intel official website. ● Linux Kernel rebuild is needed (modify igc driver) if version < 5.15. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro.
