LAN
mPCIe to Single GbE LAN Module
EMPL-G103
Powered by
- Intel i210 chip
Features
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Transformer on PCB for flexible cable design
- External LED indicator pin for speed 10 / 100 / 1000
- Optional Industrial Temperature (-40°C to 85°C) support
- 30μ” golden finger, 3-year warranty
- Industrial design, manufactured in Innodisk Taiwan

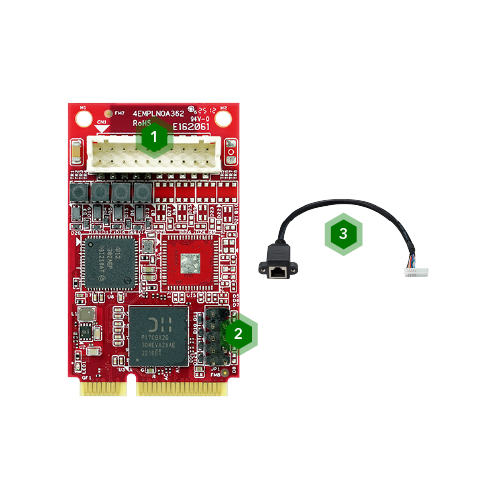

PRODUCT DETAILS AT A GLANCE
- 1LAN Connector
- 2External LED Indicator Pin Header
- 325cm RJ45 Cable
The EMPL-G103, featuring the Intel i210 chip, provides a single GbE LAN port and ensures reliable performance in industrial environments. It complies with EN61000-4-2 ESD standards, offering 15kV air and 8kV contact protection. The module includes a transformer on the PCB for flexible cable design and an external LED indicator pin for speed (10 / 100 / 1000). With optional industrial temperature support (-40°C to 85°C), the EMPL-G103 is backed by a 3-year warranty. Designed for durability and efficiency, it is manufactured by Innodisk Taiwan for demanding applications.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EMPL-G103 |
|---|---|
| Module Type | mPCIe to Single GbE LAN Module |
| Form Factor | mPCIe |
| Function | LAN |
| Input I/F | PCI Express 2.1 x1 |
| Output I/F | GbE LAN |
| Output Port | 1 |
| Output Connector | RJ45 |
| Max. Power Consumption | 1.34W (3.3V, 405mA) |
| Dimension (W x L x H/mm) | 29.85 x 50.8 x 9.35 |
| Temperature | Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32bit), 7 (32 / 64bit), 8 / 8.1 (32 / 64 bit), 10 (32 / 64bit), and above version Linux : Kernel 2.4 series, 2.6.x, 3.x, and above version |
| Warranty | 3 Years |
| Notes | ● Please download driver from Intel official website. ● Not recommend used in VMware ESXi due to High Latency. |
ORDER INFORMATION
P/N | Description |
EMPL-G103-C1 | mPCIe to single GbE LAN Module / Standard Temperature |
EMPL-G103-W1 | mPCIe to single GbE LAN Module / Wide Temperature |
