LAN
M.2 2280 to Dual Isolated 2.5GbE LAN Module
EGPL-22S1
Features
- Complies with EN61000-4-5 2kV surge protection
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2kV HiPOT protection
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Flexible daughter board with cable to fit into different system
- Optional terminal mounting hole or bracket for daughter board
- Optional industrial temperature (-40°C to 85°C) support
- Industrial design, manufactured in Innodisk Taiwan

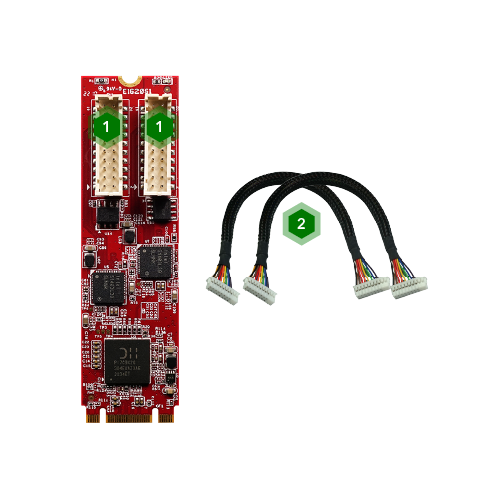

PRODUCT DETAILS AT A GLANCE
- 1LAN Connector
- 225cm Board to Board LAN Cable
Experience the blazing-fast speeds of 2.5GbE connectivity with Innodisk's M.2 2280 to Dual Isolated 2.5GbE LAN Module. This cutting-edge module delivers up to 2.5 times the performance of traditional Gigabit Ethernet, enabling you to seamlessly handle bandwidth-intensive applications such as high-definition video streaming, large file transfers, and cloud computing.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EGPL-22S1 |
|---|---|
| Module Type | M.2 to Dual Isolated 2.5GbE LAN Module |
| Form Factor | M.2 2280 B+M Key |
| Function | LAN |
| Input I/F | PCI Express 2.1 x2 |
| Output I/F | 2.5GbE LAN |
| Output Port | 2 |
| Output Connector | RJ45 |
| Max. Power Consumption | 3.084W (3.3V, 934.7mA) |
| Dimension (W x L x H/mm) | Main Board: 22 x 80 x 9 Daughter Board: 59.5 x 30 x 17.32 |
| Temperature | Operation: S/T 0°~70°C; W/T -40°C ~ +85°C (Ta) Storage: -55°C ~ +95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version |
| Warranty | 3 Years |
| Notes | ● Please download driver from Intel official website. ● Linux Kernel rebuild is needed (modify igc driver) if version < 5.16.18. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro. |
ORDER INFORMATION
| P/N | Description |
EGPL-22S1-C1 | M.2 2280 to Dual Isolated 2.5GbE LAN Module, Mounting Hole / Standard Temperature |
EGPL-22S1-W1 | M.2 2280 to Dual Isolated 2.5GbE LAN Module, Mounting Hole / Wide Temperature |
| EGPL-22S1-C2 | M.2 2280 to Dual Isolated 2.5GbE LAN Module, Bracket / Standard Temperature |
| EGPL-22S1-W2 | M.2 2280 to Dual Isolated 2.5GbE LAN Module, Bracket / Wide Temperature |
