CAN Bus
mPCIe to Dual Isolated CAN FD Module
EMUC-F2S3
Provides
- Baud rate up to 5 / 10 / 20 / 50 / 100 / 125 / 250 / 500(default) / 800 / 1000K
- CAN2.0 up to 7,800 frame/s (RX baud rate 1M, EID, 8byte data)
- CANFD up to 6,000 frame/s (RX baud rate 1M, data rate 5M, EID, 64byte data)
- Data rate supports 2 / 4 / 5Mbps
Features
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
- Complaint with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Termination resistor enabled / disabled by jumper
- Supports 3rd mounting hole and USB Pin header for out-of-minicard installation

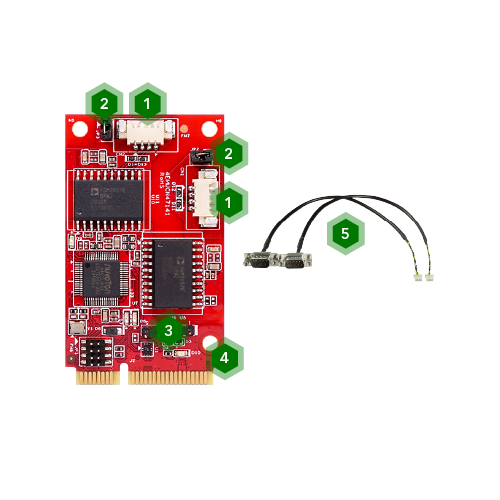

PRODUCT DETAILS AT A GLANCE
- 1CAN Cable Connector
- 2Termination Resistor
- 3USB Input
- 4Mounting Hole
- 530cm DB9 Cable
The EMUC-F2S3 is a CAN FD module compliant with ISO 11898-2 : 2016, supporting baud rates from 5K to 1Mbps, with data rates up to 5Mbps. It supports up to 7,800 frames per second for CAN 2.0 and 6,000 frames per second for CAN FD. Features include a CAN message acceptance filter, listen-only mode, and configuration retention after reboot. It includes additional drivers for Linux SocketCAN and offers termination resistor control via jumper. The module complies with 2.5kV HiPOT protection and EN61000-4-2 ESD standards. Designed for industrial use with a temperature range of -40°C to 85°C, it has a 30µ” golden finger and a 3-year warranty. Manufactured by Innodisk Taiwan.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EMUC-F2S3 |
|---|---|
| Module Type | mPCIe to Dual Isolated CAN FD Module |
| Form Factor | mPCIe |
| Function | CAN FD |
| Input I/F | USB 2.0 High Speed (480Mbps) |
| Output I/F | CAN FD |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 2.115W (5V, 423mA; 3.3V, 641mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 8.35 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : 10 (32 / 64bit) and above version Linux : Kernel 2.6 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| Warranty | 3 Years |
| Notes | *Data rate limitation : ● 2M supports normal rate 100K and above. ● 4M / 5M supports normal rate 250K and above. |
ORDER INFORMATION
| P/N | Description |
EMUC-F2S3-W1 | mPCIe to Dual Isolated CAN FD Module |
