CAN Bus
mPCIe / M.2 USB HS to CAN 2.0B
EMUC-B2S3
Provides
- Baud rate up to 5/10/20/50/100/125/250/500(default)/800/1000K
- Up to 7,800 frame/s (receiving at 1Mbps, EID, 8byte data)
Supports
- Linux SocketCAN and SAE J1939 / CANopen
Features
- Adheres to IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
- 3rd mounting hole and USB Pin header for external mini card installation
- Supports operating temperature from -40°C to 85°C

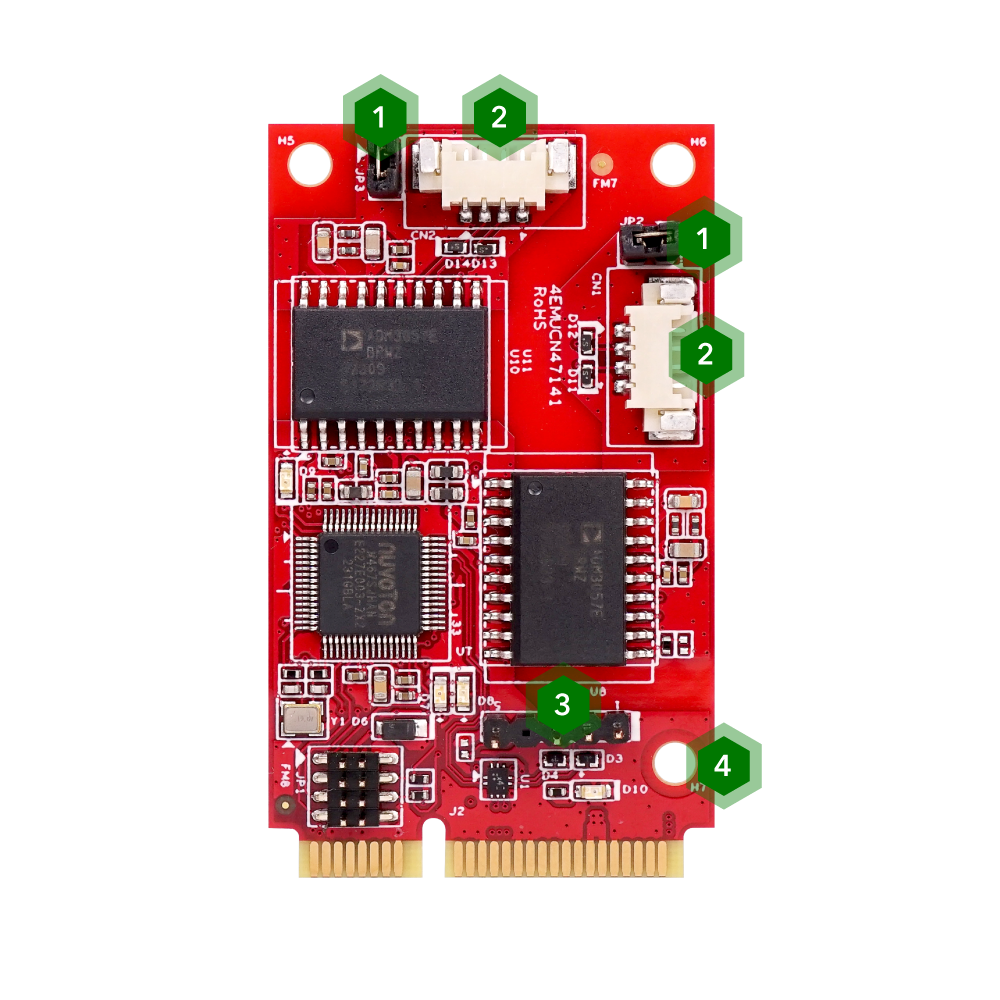

PRODUCT DETAILS AT A GLANCE
- 1Termination Resistor (Disabled when open)
- 2CAN Cable Connector
- 3USB Input
- 4Mounting Hole

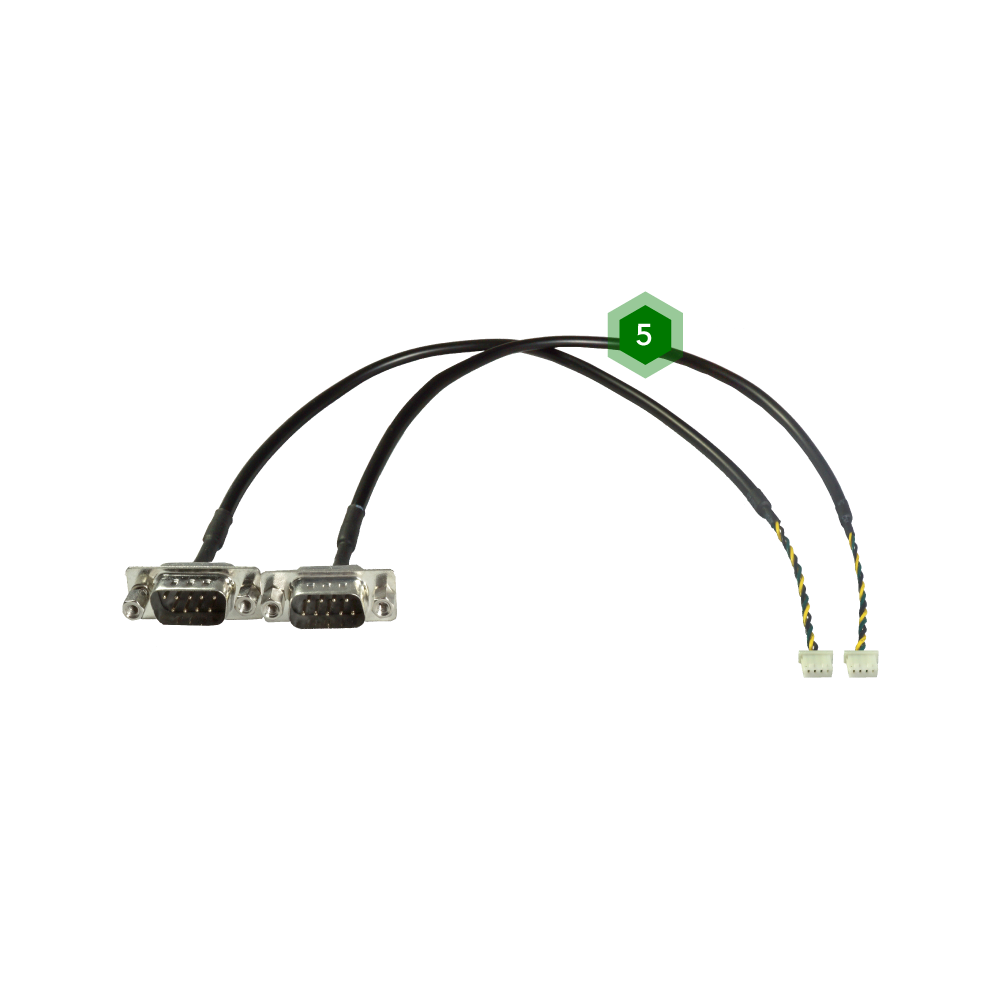

- 530cm DB9 Cable
Adhering to the SAE J1939 standard and equipped with CANopen and SocketCAN support, the EMUC-B2S3 provides reliable connectivity for a wide range of applications, including AGVs, AMRs, factory automation, EVs, transportation, robotics, and more.
RELIABLE PERFORMANCE IN HARSH ENVIRONMENTS
Built to thrive in the most demanding environments, the EMUC-B2S3 ensures consistent operation and dependable performance.
● Data Frame Up to 7,800 frame/s
Enables high-speed data processing
● Wide Temperature : -40°C ~ 85°C
Delivers reliable performance in extreme climates
● ESD Testing : Compliant with EN61000-4-2 standards (Air : 15kV, Contact : 8kV)
● Hipot Testing : Certified to IEC 60950-1:2005 + A1:2009 + A2:2013 (2.5kV)
TAILORED TO YOUR SPECIFIC NEEDS
VERSATILE FORM FACTOR OPTIONS
Offering a wide range of form factors to meet the specific needs of your motherboards.
VARIOUS PLATFORMS & OS DRIVERS SUPPORT
We provide customized software services that allow the EMUC-B2S3 to support different platforms or OS drivers.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
ELECTRIC VEHICLE
Enhancing electric mobility with robust solutions that ensure reliable communication and efficient energy management systems.
ROBOTICS
Driving innovation in robotics with precise real-time control and seamless data connectivity for advanced automation tasks.
AUTOMATION
Boosting efficiency in industrial automation with reliable data handling and long-lasting performance in demanding environments.
HEALTHCARE
Delivering advanced, AI-driven healthcare solutions that meet strict industry standards for precision and reliability.
SPECIFICATIONS
| Model Name | EMUC-B2S3 |
|---|---|
| Module Type | mPCIe to Dual Isolated CAN 2.0B / J1939 / CANopen |
| Form Factor | mPCIe |
| Function | CAN Bus |
| Input I/F | USB 2.0 High Speed (480Mbps) |
| Output I/F | CAN Bus 2.0B |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 2.115W (5V, 423mA ; 3.3V, 641mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 8.35 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32bit), 7 (32 / 64bit), 8/8.1(32 / 64bit), 10(32 / 64bit), 11, and above version Linux : Kernel 2.6 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| Warranty | 3 Years |
| Notes | Software API compatible with EMUC-B202 / EGPC-B201. |
ORDER INFORMATION
| P/N | Description |
EMUC-B2S3-W1 | mPCIe to Dual Isolated CAN Bus 2.0B Module, Wide Temperature |
EMUC-B2S3-W2 | mPCIe to Dual Isolated CAN Bus J1939 / CANopen Module, Wide Temperature |
