EMPC-B2S1

Powered by

Baud rate up to 10 / 20 / 50 / 100 / 250 / 500 / 800 / 1000K

Provides

SAE J1939 / CANopen high layer protocol (Optional)

Features

Meets the Requirements of the ISO 11898-1
Compliant with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Supports CAN message acceptance filter
Supports Linux SocketCAN
Termination resistor enabled / disabled by jumper

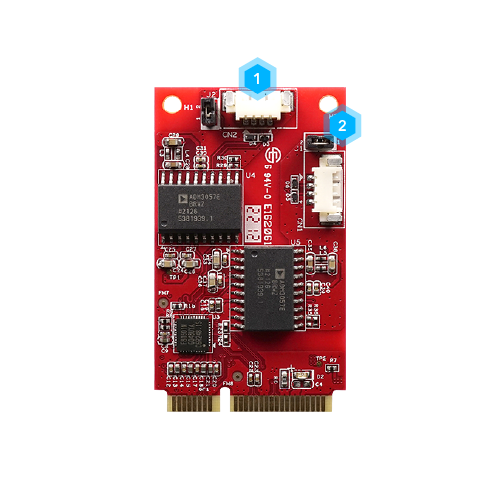

PRODUCT DETAILS AT A GLANCE

1CAN Cable Connector
2Termination Resistor

EDGE AI FPGA Solution in Factory Automation

BORN FOR SUPERIOR PERFORMANCE

The EMPC-B2S1 is PCI Express 1.1 compliant, supporting CAN Bus 2.0B (backward compatible with 2.0A) and baud rates from 10K to 1Mbps. It features a CAN message acceptance filter, Linux SocketCAN support, and optional SAE J1939 / CANopen protocols. Designed for industrial environments, it operates within a temperature range of -40°C to 85°C and comes with a 3-year warranty and a 30μ” golden finger. Manufactured by Innodisk Taiwan.

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

TRANSPORTATION

Our solutions enhance operations, management, and security for EVs, buses, subways, and more.

INDUSTRIAL / EMBEDDED

Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.

AUTOMATION

Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.

SPECIFICATIONS

Model Name	EMPC-B2S1
Module Type	mPCIe to Dual Isolated CAN Bus 2.0B / J1939 / CANopen Module
Form Factor	mPCIe
Function	CAN Bus
Input I/F	PCI Express 1.1 x1
Output I/F	CAN Bus 2.0B
Output Port	2
Output Connector	DB-9
Max. Power Consumption	2.834W (3.3V, 859mA)
Dimension (W x L x H/mm)	30 x 50.9 x 8.25
Temperature	Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	[email protected]
OS Support	Windows: 7 (32 / 64bit), 8 / 8.1 (32 / 64bit), 10 (32 / 64bit), and above version Linux : SocketCAN driver from Kernel 2.6.38 and above (32 / 64bit)
Warranty	3 Years
Notes	--
