EGPC-B4S1

Provides

Baud rate up to 10 / 20 / 50 / 100 / 250 / 500 / 800 / 1000K

Supports

SAE J1939 / CANopen high layer protocol (Optional)

Features

Meets the Requirements of the ISO 11898-1
Compliant with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
Compliant with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Supports CAN message acceptance filter
Supports Linux SocketCAN
Termination resistor enabled / disabled by switch

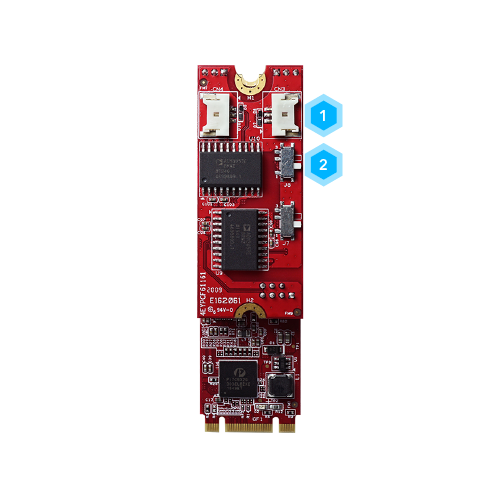

PRODUCT DETAILS AT A GLANCE

1CAN Cable Connector
2Termination Resistor

EDGE AI FPGA Solution in Factory Automation

BORN FOR SUPERIOR PERFORMANCE

The EGPC-B4S1 is PCI Express 1.1 compliant, supporting CAN Bus 2.0B (backward compatible with 2.0A) and baud rates from 10K to 1Mbps. It features a CAN message acceptance filter, Linux SocketCAN support, and optional SAE J1939 / CANopen protocols. Designed for industrial applications, it supports a temperature range of -40°C to 85°C, includes a 30μ” golden finger, and comes with a 3-year warranty. Manufactured by Innodisk Taiwan.

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

TRANSPORTATION

Our solutions enhance operations, management, and security for EVs, buses, subways, and more.

INDUSTRIAL / EMBEDDED

Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.

AUTOMATION

Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.

SPECIFICATIONS

Model Name	EGPC-B4S1
Module Type	M.2 to Four Isolated CANbus 2.0B / J1939 / CANopen Module
Form Factor	M.2 2280 B+M Key
Function	CAN Bus
Input I/F	PCI Express 1.1 x1
Output I/F	CAN Bus 2.0B
Output Port	4
Output Connector	DB-9
Max. Power Consumption	4.3W (3.3V, 1310mA)
Dimension (W x L x H/mm)	22 x 80 x 12.9
Temperature	Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	[email protected]
OS Support	Windows : 7 (32 / 64bit), 8 / 8.1 (32 / 64bit), 10 (32 / 64bit), and above version Linux : SocketCAN driver from Kernel 2.6.38 and above (32 / 64bit)
Warranty	3 Years
Notes	--
