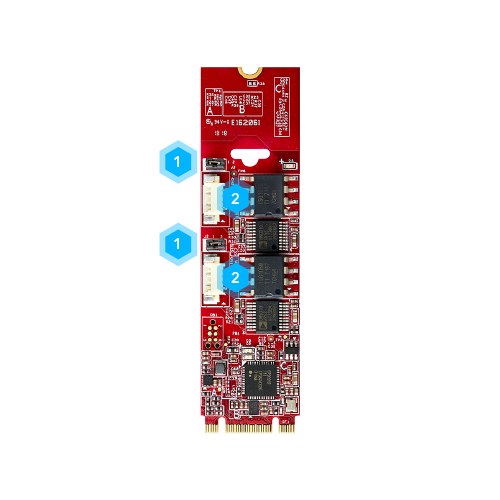

EGPC-B201

Product Features
  • Alternative M.2 2260 or 2280 B-M key
  • CANbus 2.0B backward compatible with 2.0A
  • Supports baud rate 100/125/250/500(default)/800/1000K
  • Supports CAN message acceptance filter
  • Keeps configuration after hardware reboot
  • Up to 6000 CAN messages per second (receive data)
  • Supports Listen-only mode
  • Additional driver to support Linux SocketCAN
  • Supports SAE J1939 high layer protocol (Optional)
  • Termination resistor enabled/disabled by jumper
  • Complies with EN61000-4-5 2.5kV surge protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT protection
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • 30μ” golden finger, 3-year warranty
  • Supports -40 to +85 degrees
  • Industrial design, manufactured in Innodisk Taiwan
Featured Technologies:
Application:
Specs Order Information Related Resource +ADD TO INQUIRY

Specifications:

Module NameEGPC-B201
Module TypeM.2 to Dual Isolated CANbus 2.0B/J1939 Module
Form FactorM.2 2260/2280 B-M
FunctionCANbus
Input I/FPCI Express 2.0 x 1
Output I/FCANbus 2.0B

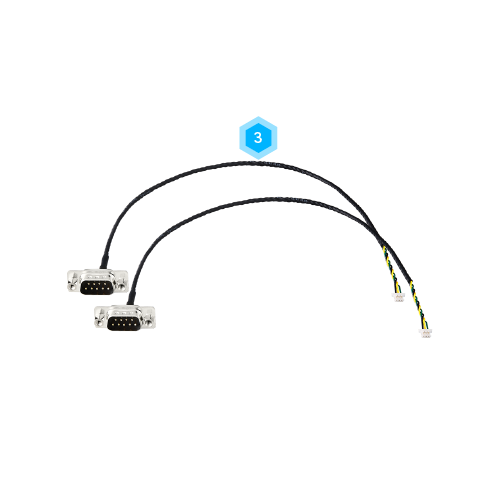

Output connector2 x DB-9
Power Consumption2.69W (3.3V, 815mA)
Dimensions (W x L x H/mm)22 x 60/80 x 8.05
TemperatureSTD temp: 0°~70°C
Wide temp: -40°~85°C
EnvironmentVibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
NotesDownload driver and API (the same as EMUC-B202) from MyInnodisk website.
Windows: XP (32bit), 7 (32/64bit), 8/8.1 (32/64bit), 10 (32/64bit)
Linux: Kernel 2.6 and above (Native CDC-ACM driver),
Kernel 2.6.38 and above (SocketCAN Driver), 32/64bit

Order Information:

Model Name Description
EGPC-B201-W1 (2260, CAN2.0B)
EGPC-B201-W2 (2280, CAN2.0B)
M.2 to dual isolated CANbus 2.0B Module
EGPC-B201-W3 (2260, J1939)
EGPC-B201-W4 (2280, J1939)
M.2 to dual isolated CANbus J1939 Module
EGPC-B201-W5 (2260, CANopen)
EGPC-B201-W6 (2280, CANopen)
M.2 to dual isolated CANbus CANopen Module
