DDR5
Single Side with Double Bandwidth
LPDDR5X CAMM2 (LPCAMM2)
Features
- Single-sided dual-channel design with 128-bit bandwidth
- Blazing-fast 8533MT/s data rates
- Saves up to 60% of mounting space
- Stub-free layout for optimized signal integrity
- Operates at just 1.05V for lower power consumption
- Modular LPDDR5X IC design eliminates upgrade hurdles
- Screw-lock mechanism ensures strong vibration resistance

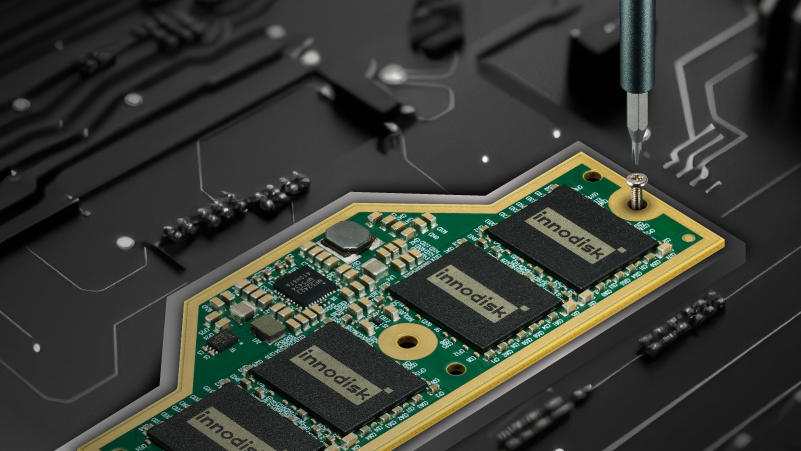

Innodisk’s LPCAMM2 redefines high-performance embedded memory with an ultra-slim, single-sided form factor. The module enhances signal integrity with simplified motherboard routing and reduces mounting space by up to 60%, allowing greater flexibility for custom cooling and system design.
LPCAMM2 features a modular LPDDR IC architecture that eliminates upgrade hurdles of traditional onboard LPDDR designs. Combined with a screw-lock mechanism that ensures vibration resistance in rugged environments. Powered by LPDDR5X and a 128-bit dual-channel architecture, LPCAMM2 delivers speeds up to 8533 MT/s at just 1.05V—boosting performance while minimizing power consumption.
SLIM DUAL-CHANNEL DESIGN FOR 60% SPACE SAVING

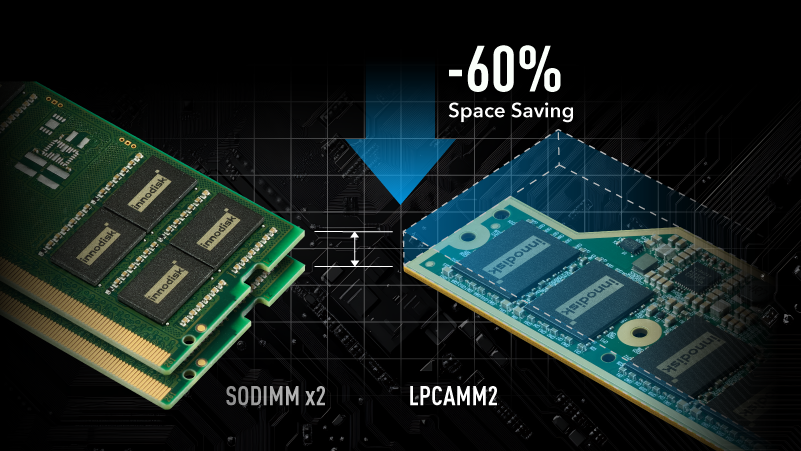

LPCAMM2 adopts an innovative dual-channel architecture with 128-bit bandwidth, reducing memory slot usage and saving up to 60% of mounting space compared to traditional SODIMM. This enables slimmer system profiles and improved layout flexibility, especially in compact or fanless devices.
OPTIMIZED SIGNAL INTEGRITY WITH STUB-FREE LAYOUT

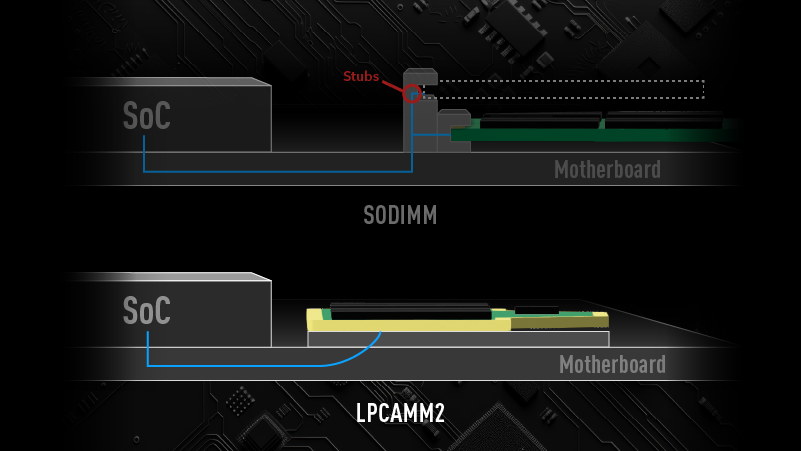

In conventional system design, unused DIMM slots might cause stubs that degrade signal integrity and electrical performance. LPCAMM2 eliminates stub issues through simplified PCB routing, ensuring cleaner signal transmission.
BLAZING SPEED WITH MINIMAL POWER

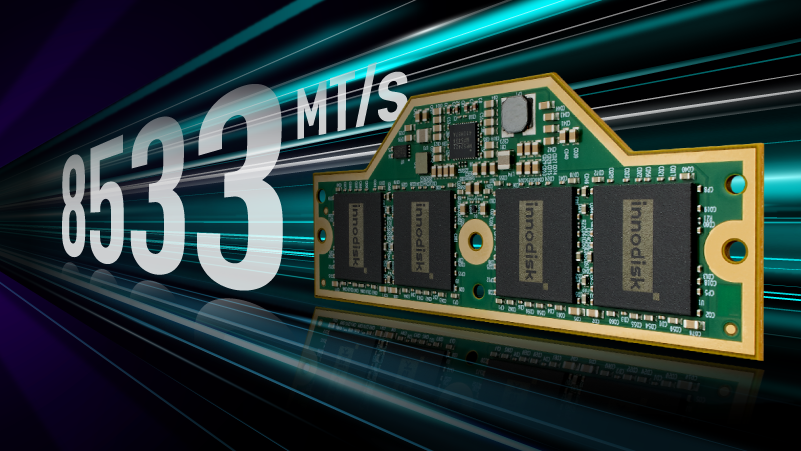

LPCAMM2 achieves speeds up to 8533MT/s with LPDDR5X at just 1.05V—offering blazing-fast performance with lower voltage and energy consumption to improve battery life and system efficiency.
MODULAR DESIGN FOR EASY UPGRADES AND RUGGED RELIABILITY
Unlike traditional LPDDR IC-on-board designs that require full motherboard replacement for memory upgrades or repairs, LPCAMM2 features a modular IC architecture that eliminates upgrade hurdles—marking a breakthrough in LPDDR platform serviceability. LPCAMM2 employs a screw-lock mechanism to ensure strong vibration resistance and mechanical durability in rugged environments.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
CompactPCI / Rugged System
Ideal for transportation, telecom, and mission-critical applications, offering easy serviceability, reliable signal integrity, and strong vibration resistance.
Mini PC & Fanless System
Optimized for compact or fanless designs with a space-saving architecture—ideal for edge deployments in space-constrained environments.
Robotics
Enables real-time control for humanoid robots and AMRs with high bandwidth and low power consumption.
SPECIFICATIONS
| Model Name | LPDDR5X CAMM2 (LPCAMM2) |
|---|---|
| DDR Generation | LPDDR5X Memory |
| DIMM Type | CAMM2 |
| Speed | 8533 MT/s |
| Density | 32GB, 64GB |
| Function | Non-ECC Unbuffered Memory |
| Pin Number | 666pin |
| Bus Width | x128 |
| Voltage | 1.05V |
| PCB Height | 1.32 inches |
| Operating Temperature | 0°C ~ 85°C (Tc) |
| Anti-Sulfuration | Y |
ORDER INFORMATION
P/N | IC Config. | Rank | Temp. | Description |

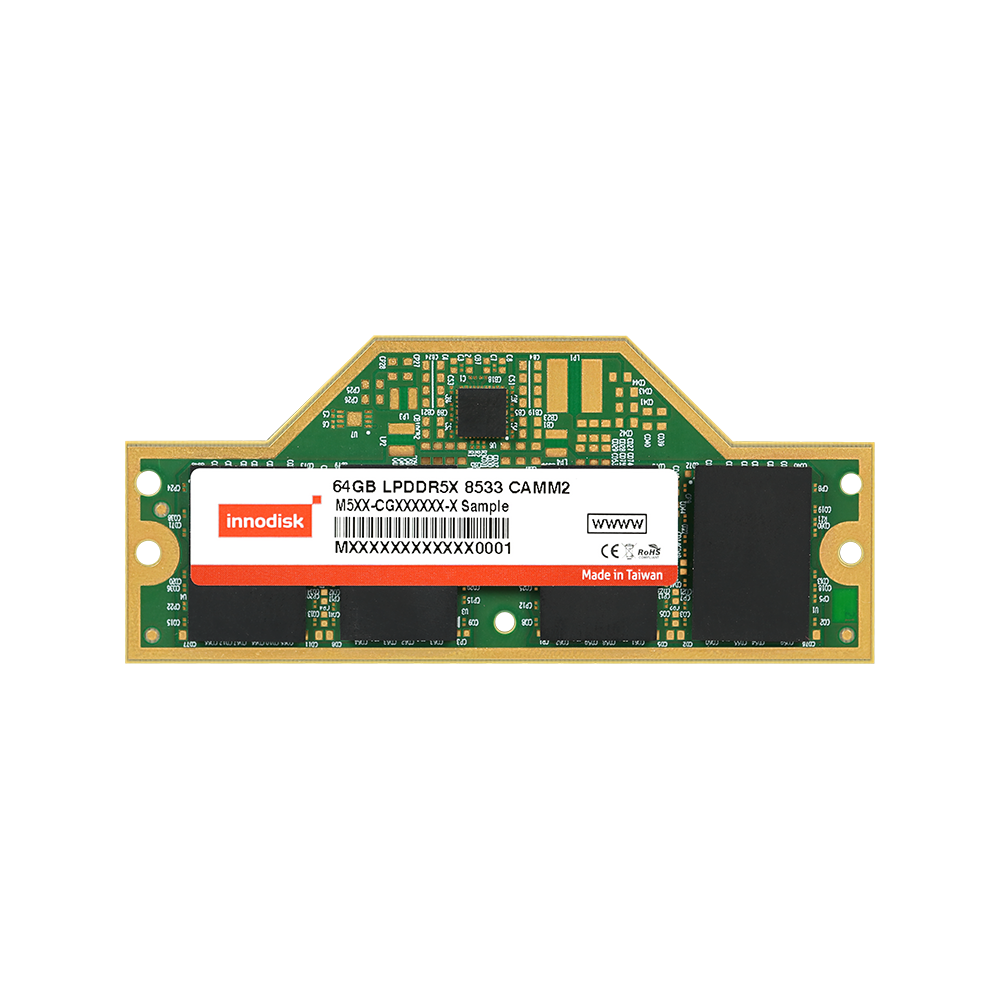

TBC | 2G x 32 | 2R x 16 | 0°C ~ 85°C (Tc) | LPDDR5X 8533 32GB CAMM2 |

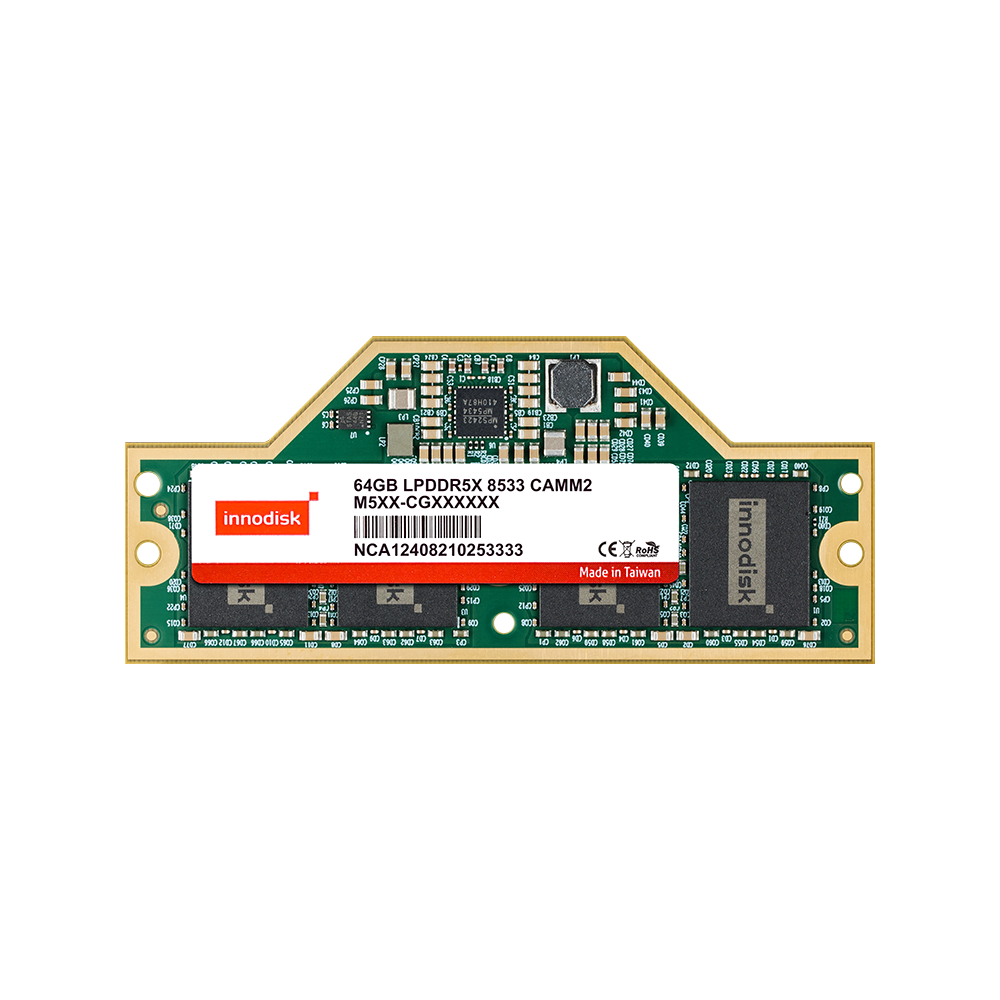

TBC | 4G x 32 | 2R x 16 | 0°C ~ 85°C (Tc) | LPDDR5X 8533 64GB CAMM2 |
