DDR5
ECC Unbuffered Memory
DDR5 Wide Temp. ECC UDIMM
Features
- ECC DIMM incorporates error correction and detection capabilities
- Speeds up to 5600MT/s with capacities up to 48GB
- Operating Environment: -40°C ~ 95°C (Tc)
- DDR5 original-grade IC equipped with on-die ECC functionality
- DDR5 on-module PMIC and dual sub-channel structure
- 30μ” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
- Complies with RoHS and CE / FCC certifications
As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 48GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.
PERFECTLY ADAPTS TO CHANGING CONDITIONS
By developing specialized testing methods, Innodisk DDR5 Wide Temperature ECC SODIMM modules are designed to operate within industrial-grade temperature ranges of -40°C to 95°C, making them ideal for extreme environments and demanding applications.
HIGHER DATA RELIABILITY, LOWER POWER CONSUMPTION
The DDR5 Wide Temperature ECC SODIMM modules are equipped with a on-module power management IC (PMIC) to maintain a stable power supply at 1.1V, ensuring consistent and efficient operation. Additionally, the IC features an on-die ECC function, providing an extra layer of protection against data loss, reducing the risk of errors, and enhancing overall reliability.
SAFEGUARDING MODULES WITH ANTI-SULFURATION PROTECTIVE LAYER
Sulfur is pervasive in many industries. When silver alloys in the DRAM chip encounters sulfur gasses a corrosion reaction occurs. This sulfuration causes lower conductivity and can quickly lead to product failure. To avoid this, Innodisk adds a protective layer above the vulnerable parts to safeguard the silver alloys.
PROVEN RELIABILITY THROUGH 3rd PARTY TESTING
Innodisk’s products are rigorously tested to ensure unmatched reliability and performance in demanding environments. They undergo extensive validation under extreme conditions, adhering to industry standards.
| Thermal Shock | -40°C ~ 110°C, 500 Cycles |
| Anti-sulfuration Test | 480 Hours, ASTM B809-95 |
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

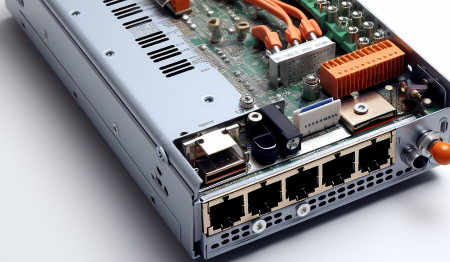

DDR5 UDIMM FOR EMBEDDED FANELESS SYSTEMS
Fanless systems are often considered space-saving solutions but can raise concerns about thermal issues. To address this, Innodisk provides DDR5 5600 16GB Wide Temperature ECC UDIMM modules to a client, helping manage heat challenges in space-constrained systems.
SPECIFICATIONS
| Model Name | DDR5 Wide Temperature ECC UDIMM |
|---|---|
| DDR Generation | DDR5 Memory |
| DIMM Type | ECC UDIMM |
| Speed | 4800 MT/s, 5600 MT/s |
| Density | 16GB, 24GB, 32GB, 48GB |
| Function | ECC Unbuffered Memory |
| Pin Number | 288pin |
| Bus Width | x72 |
| Voltage | 1.1V |
| PCB Height | 1.23 Inches |
| Operating Temperature | -40°C ~ 95°C (Tc) |
| 30μ” Gold Finger | Y |
| Anti-Sulfuration | Y |
ORDER INFORMATION
P/N | IC Config. | Rank | Temp. | Description |
M5C0-AGS2L5ZQ | 2G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature ECC UDIMM |
M5C0-AGM2L5ZQ | 2G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 16GB Wide Temperature ECC UDIMM |
M5C0-FGMZL5ZQ | 3G x 8 | 1R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 24GB Wide Temperature ECC UDIMM |
M5C0-BGS2M5ZQ | 2G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 32GB Wide Temperature ECC UDIMM |
M5C0-BGM2M5ZQ | 2G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 32GB Wide Temperature ECC UDIMM |
M5C0-GGMZM5ZQ | 3G x 8 | 2R x 8 | -40°C ~ 95°C (Tc) | DDR5 5600 48GB Wide Temperature ECC UDIMM |
*Please contact Innodisk for products with other speeds.
