DDR5
Non-ECC Unbuffered Memory
DDR5 UDIMM
Features
- Speeds up to 5600MT/s with capacities up to 48GB
- Operating Environment: 0°C ~ 95°C (Tc)
- DDR5 original-grade IC equipped with on-die ECC functionality
- DDR5 on-module PMIC and dual sub-channel structure
- 30μ” gold finger ensures durability, with anti-sulfuration shielding against harsh conditions
- Complies with RoHS and CE / FCC certifications
As AI drives growing data transmission demands, DDR5 DRAM stands out as the optimal choice. With advancements in design and development, DDR5 offers up to 48GB capacity and 5600MT/s speed, surpassing previous generations in overall performance.
HIGHER DATA RELIABILITY, LOWER POWER CONSUMPTION
The DDR5 UDIMM modules are equipped with a on-module power management IC (PMIC) to maintain a stable power supply at 1.1V, ensuring consistent and efficient operation. Additionally, the IC features an on-die ECC function, providing an extra layer of protection against data loss, reducing the risk of errors, and enhancing overall reliability.
SAFEGUARDING MODULES WITH ANTI-SULFURATION PROTECTIVE LAYER
Sulfur is pervasive in many industries. When silver alloys in the DRAM chip encounters sulfur gasses a corrosion reaction occurs. This sulfuration causes lower conductivity and can quickly lead to product failure. To avoid this, Innodisk adds a protective layer above the vulnerable parts to safeguard the silver alloys.
PROVEN RELIABILITY THROUGH 3rd PARTY TESTING
Ensuring the durability and reliability of components is essential for meeting the demands of challenging environments. Our solutions undergo rigorous third-party testing, adhering to stringent industry standards. These tests validate the robustness of our products under extreme conditions, ensuring dependable performance across various applications.
| Thermal Shock | -40°C ~ 110°C, 500 Cycles |
| Anti-sulfuration Test | 480 Hours, ASTM B809-95 |
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

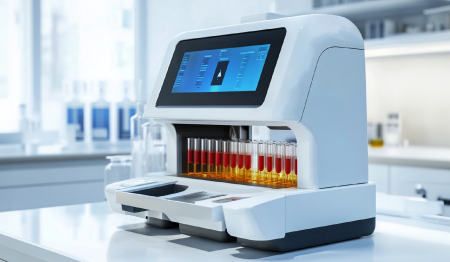

SMART HEALTHCARE: CLINICAL CHEMISTRY ANALYZER
Medical equipment requires rigorous verification testing and high-standard components. Innodisk provides a wide range of DDR5 products for a clinical chemistry analyzer to ensure fast processing and accurate data transmission, backed by long-term supply and fixed-BOM service.
SPECIFICATIONS
| Model Name | DDR5 UDIMM |
|---|---|
| DDR Generation | DDR5 Memory |
| DIMM Type | UDIMM |
| Speed | 4800 MT/s, 5600 MT/s |
| Density | 8GB, 16GB, 24GB, 32GB, 48GB |
| Function | Non-ECC Unbuffered Memory |
| Pin Number | 288pin |
| Bus Width | x64 |
| Voltage | 1.1V |
| PCB Height | 1.23 Inches |
| Operating Temperature | 0°C ~ 95°C (Tc) |
| 30μ” Gold Finger | Y |
| Anti-Sulfuration | Y |
ORDER INFORMATION
P/N | IC Config. | Rank | Temp. | Description |
M5U0-8GSY1CZQ | 1G x 16 | 1R x 16 | 0°C ~ 95°C (Tc) | DDR5 5600 8GB UDIMM |
M5U0-8GMY1CZQ | 1G x 16 | 1R x 16 | 0°C ~ 95°C (Tc) | DDR5 5600 8GB UDIMM |
M5U0-AGS2JCZQ | 2G x 8 | 1R x 8 | 0°C ~ 95°C (Tc) | DDR5 5600 16GB UDIMM |
M5U0-AGM2JCZQ | 2G x 8 | 1R x 8 | 0°C ~ 95°C (Tc) | DDR5 5600 16GB UDIMM |
M5U0-FGMZJCZQ | 3G x 8 | 1R x 8 | 0°C ~ 95°C (Tc) | DDR5 5600 24GB UDIMM |
M5U0-BGS2KCZQ | 2G x 8 | 2R x 8 | 0°C ~ 95°C (Tc) | DDR5 5600 32GB UDIMM |
M5U0-BGM2KCZQ | 2G x 8 | 2R x 8 | 0°C ~ 95°C (Tc) | DDR5 5600 32GB UDIMM |
M5U0-GGMZKCZQ | 3G x 8 | 2R x 8 | 0°C ~ 95°C (Tc) | DDR5 5600 48GB UDIMM |
*Please contact Innodisk for products with other speeds.
