DDR5
Get Double Bandwidth with a Single Module

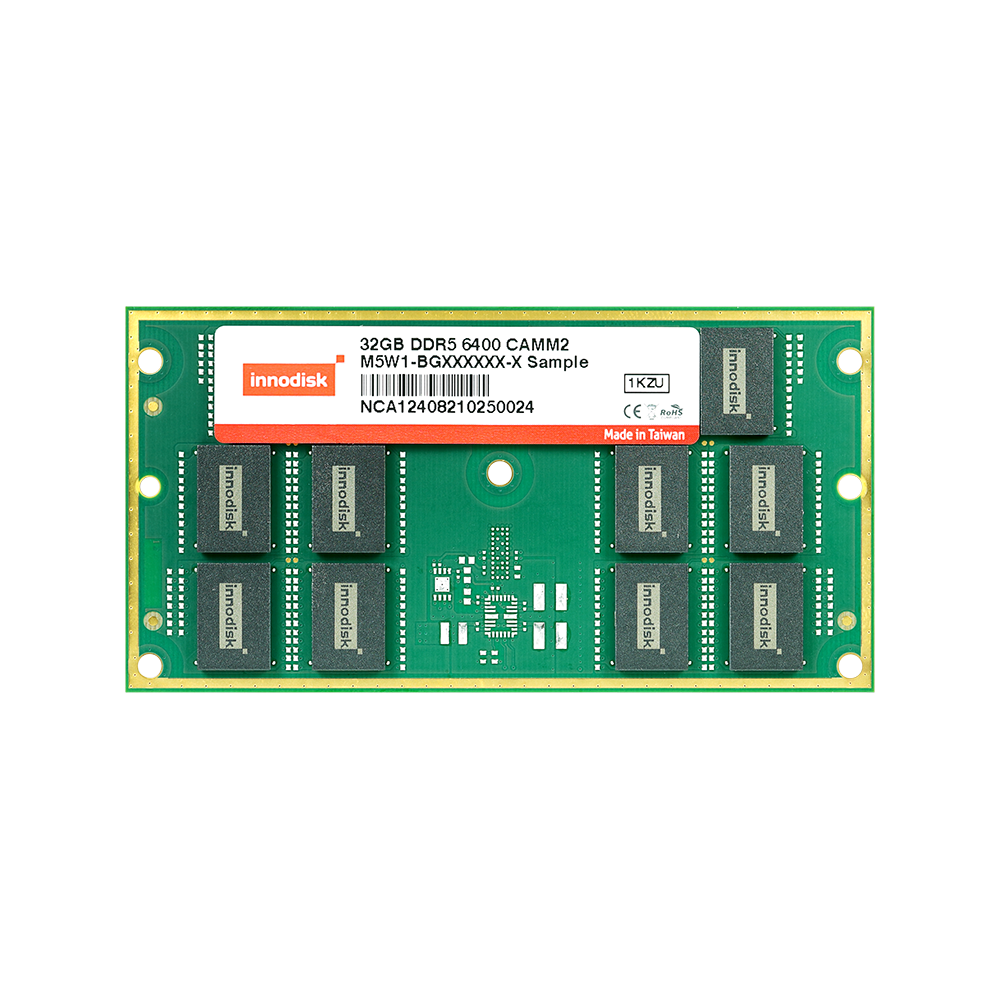

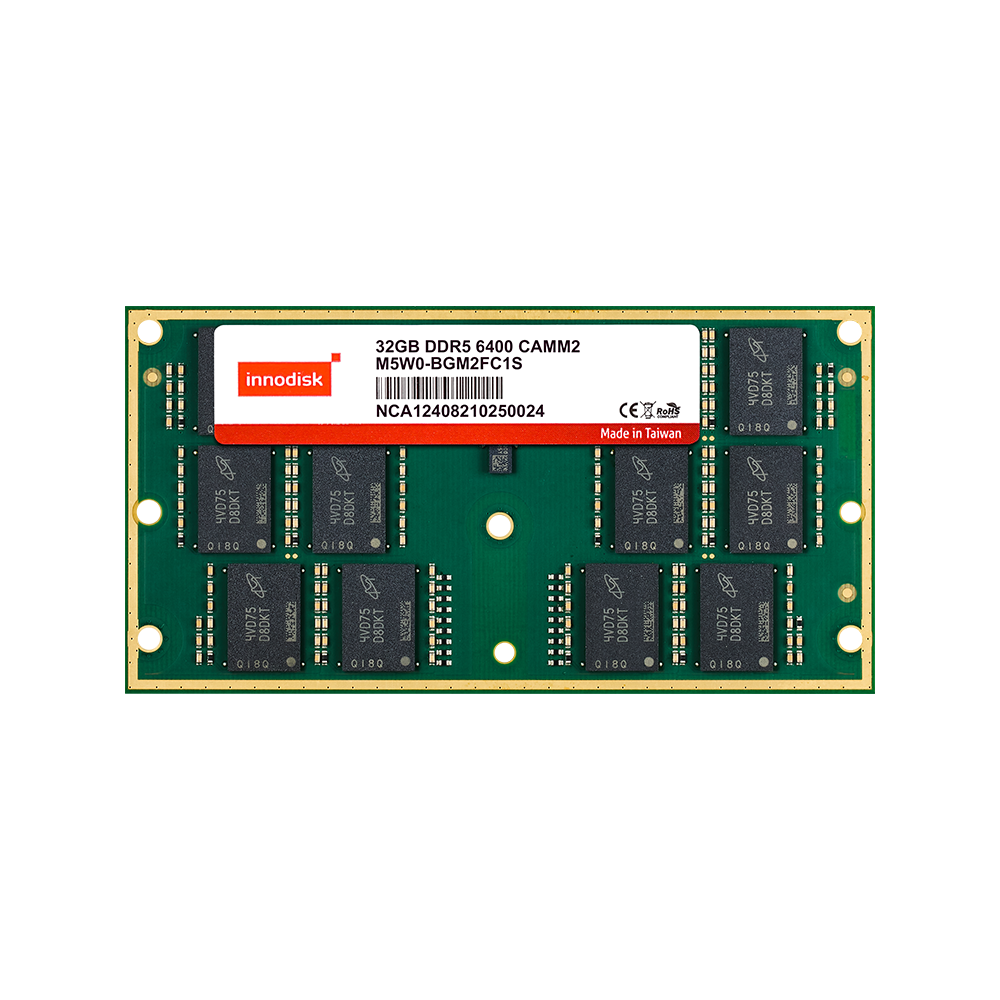

DDR5 CAMM2
Features
- Dual-channel design with 128-bit bandwidth
- Blazing-fast 6400MT/s data rates
- Saves up to 60% of mounting space
- Stub-free layout for optimized signal integrity
- Screw-lock mechanism ensures strong vibration resistance
Innodisk’s CAMM2 redefines high-performance embedded memory with an ultra-slim form factor. The module enhances signal integrity with simplified motherboard routing and reduces mounting space by up to 60%, allowing greater flexibility for custom cooling and system design.
The module features a screw-lock mechanism that ensures vibration resistance in rugged environments. Powered by DDR5 and a 128-bit dual-channel architecture, CAMM2 delivers speeds up to 6400 MT/s—enabling high bandwidth and stable performance for data-intensive industrial applications.

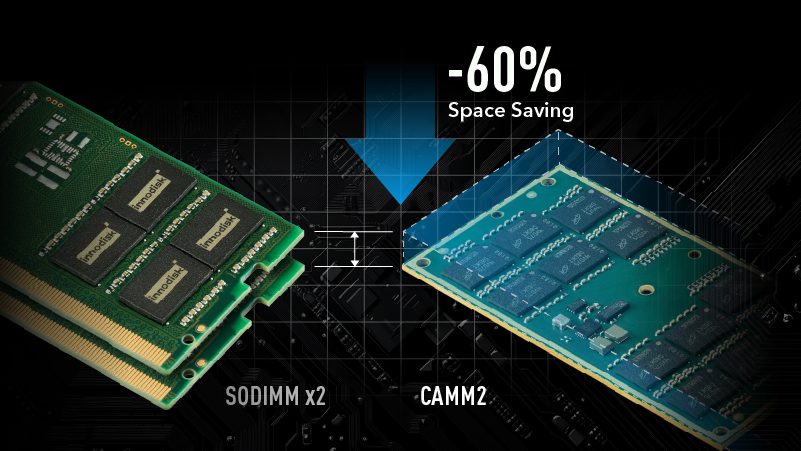

SLIM DUAL-CHANNEL DESIGN FOR 60% SPACE SAVING
CAMM2 adopts an innovative dual-channel architecture with 128-bit bandwidth, reducing memory slot usage and saving up to 60% of mounting space compared to traditional SODIMM. This enables slimmer system profiles and improved layout flexibility, especially in compact or fanless devices.

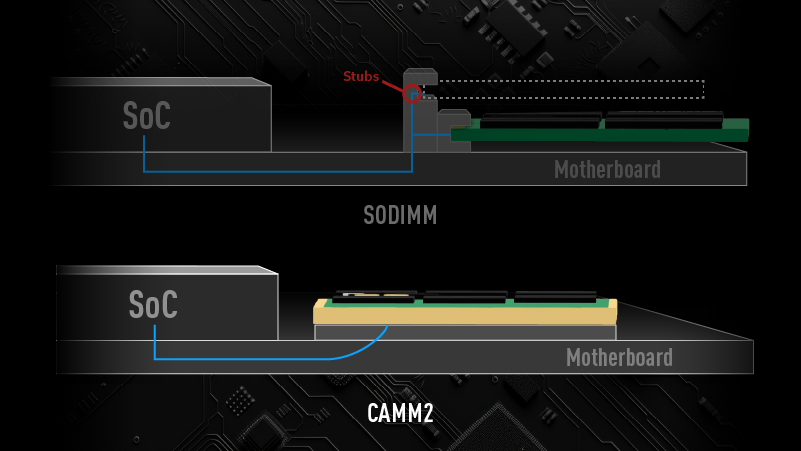

OPTIMIZED SIGNAL INTEGRITY WITH STUB-FREE LAYOUT
In conventional system design, unused DIMM slots might cause stubs that degrade signal integrity and electrical performance. CAMM2 eliminates stub issues through simplified PCB routing, ensuring cleaner signal transmission.

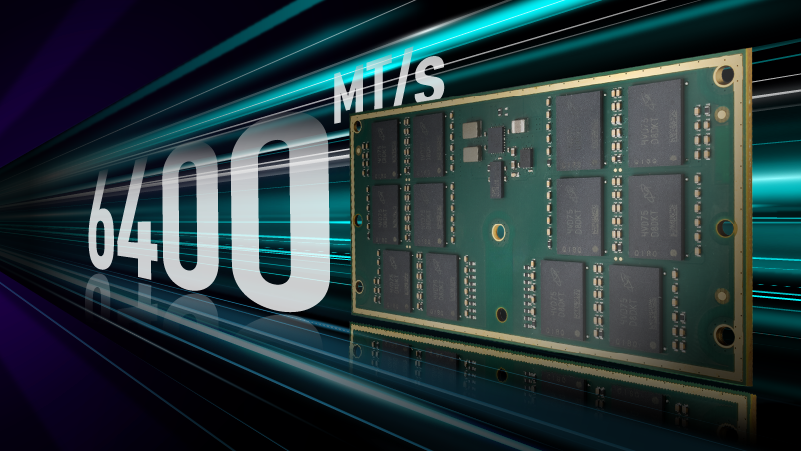

BLAZING SPEED
CAMM2 delivers speeds up to 6400MT/s with DDR5 memory—offering blazing-fast performance for edge systems.

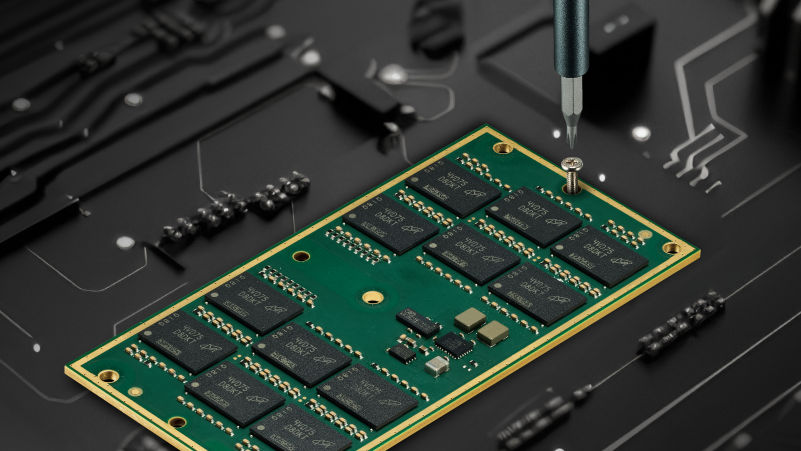

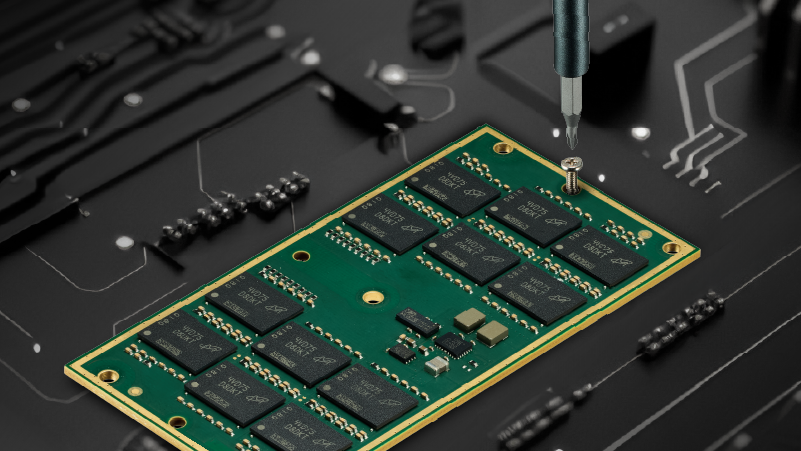

RUGGED RELIABILITY
CAMM2 employs a screw-lock mechanism to ensure strong vibration resistance and mechanical durability in rugged environments.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
CompactPCI / Rugged System
Ideal for transportation, telecom, and mission-critical applications, offering easy serviceability, reliable signal integrity, and strong vibration resistance.
Mini PC & Fanless System
Optimized for compact or fanless designs with a space-saving architecture—ideal for edge deployments in space-constrained environments.
Robotics
Enables real-time control for humanoid robots and AMRs with high bandwidth and low power consumption.
SPECIFICATIONS
| Model Name | DDR5 CAMM2 |
|---|---|
| DDR Generation | DDR5 Memory |
| DIMM Type | CAMM2 |
| Speed | 6400 MT/s |
| Density | 32GB, 64GB |
| Function | Non-ECC Unbuffered Memory |
| Pin Number | 644pin |
| Bus Width | x128 |
| Voltage | 1.1V |
| PCB Height | 1.57 inches |
| Operating Temperature | 0°C ~ 95°C (Tc) |
| Anti-Sulfuration | Y |
ORDER INFORMATION
P/N | IC Config. | Rank | Temp. | Description |
M5W0-BGM2FC1S | 2G x 8 | 1R x 8 | 0°C ~ 95°C (Tc) | DDR5 6400 32GB CAMM2 |
M5W0-CGM2FC1S | 4G x 8 | 1R x 8 | 0°C ~ 95°C (Tc) | DDR5 6400 64GB CAMM2 |
