USB 2.0

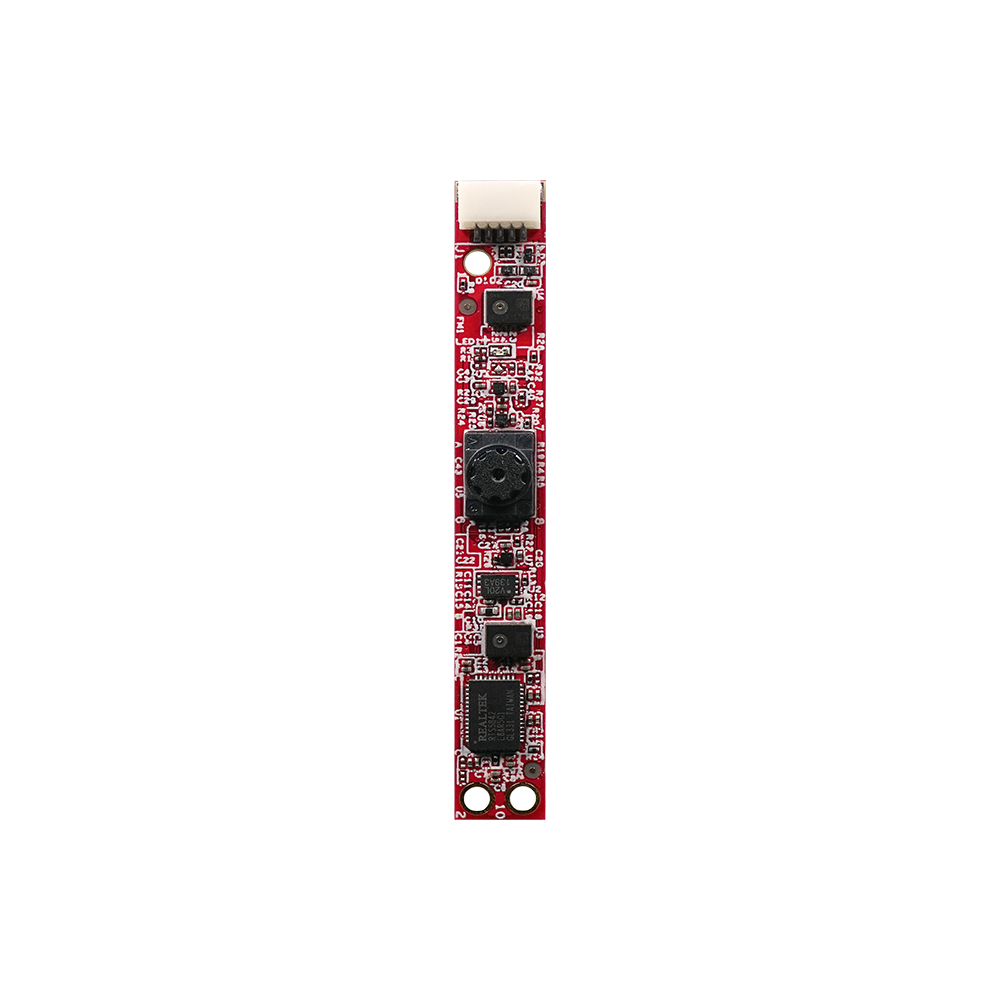

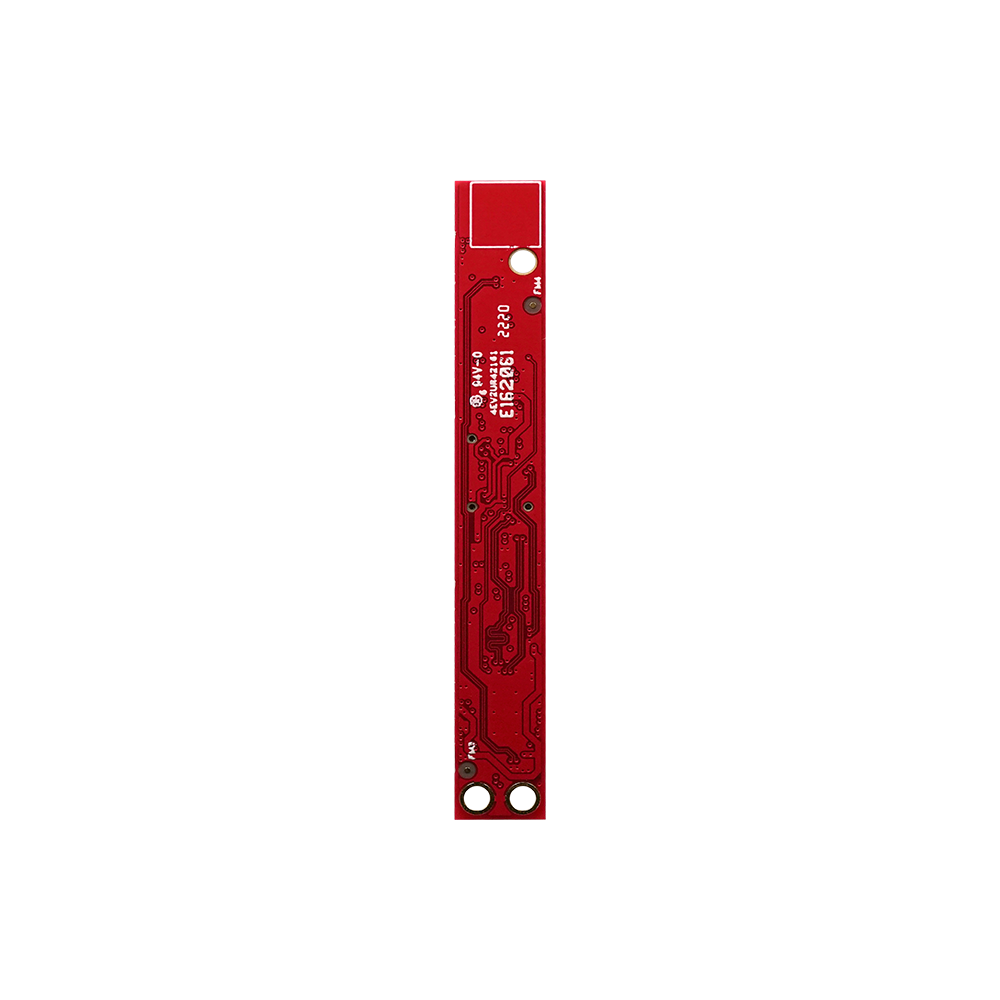

USB 2.0 2MP Fixed Focus Camera Module
EV2U-RMR1-UMCB
Features
- USB 2.0 interface, max resolution 2MP @30fps
- Lens Field of View (D / H / V) : 77° / 69° / 42°
- Equipped with Integrated Image Signal Processor (ISP)
- Compliant to USB 2.0 and USB Video Class
- Complies with CE / FCC Class A
- OS Support : Windows, Linux, Android, macOS (UVC)
BORN FOR SUPERIOR PERFORMANCE
Innodisk's USB 2.0 Camera Module offers exceptional imaging capabilities in a compact design, ideal for panel PCs and medical PCs. Its small size ensures seamless integration into space-constrained environments.
TAILORED TO YOUR SPECIFIC NEEDS
PCBA CUSTOMIZATION
Offering PCBA (Printed Circuit Board Assembly) customization services to ensure your camera module meets your specific requirements.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
All-in-one PC
Enhance functionality and streamline integration for modern all-in-one PC solutions.
PANEL PC
Provide reliable imaging support for industrial and commercial panel PC applications.
QR CODE SCAN
Deliver precise and fast QR code scanning for various identification needs.
POS MACHINE
Ensure efficient and accurate imaging for point-of-sale systems.
SPECIFICATIONS
| Model Name | EV2U-RMR1-UMCB |
|---|---|
| Module Type | USB 2.0 2MP Fixed Focus Camera Module |
| Resolution (Max.) | 2MP |
| Frame Rate (Max. Resolution) | 30fps |
| Output I/F | USB 2.0 |
| Sensor | OmniVision OV2740 |
| Shutter | Rolling |
| Video Format | YUV422, MJPEG |
| Power Consumption | Approximate 1W (MJPEG @Max. Resolution) |
| Operating Temperature | -20°C ~ 70°C |
| Sensor Size | 1/6” |
| Pixel Size | 1.4µm |
| Chroma Type | Color |
| Lens Type | Fixed Focus (M5) |
| Dimensions (W x L x H/mm) | 60 x 8 x 3.85 |
| Lens FOV (D / H / V) | 77.3° / 69.8° / 42.7° |
| OS Support | Windows / Linux / Android / macOS |
| Housing | Board Level |
| Features | DMIC |
| Warranty | 3 Years |
| Note | For detailed resolution and frame rate combined application, please refer to product datasheet. |
ORDER INFORMATION
| P/N | Description |
| EV2U-RMR1-UMCB-C1 | USB 2.0 2MP Fixed Focus Camera Module (USB Cable Included) Dimension : 60 x 8 |
| EV2U-RMR1-UMCB-C2 | USB 2.0 2MP Fixed Focus Camera Module with DMIC (USB Cable Included) Dimension : 60 x 8 |
| 7W2000000160 | USB 2.0 cable 1 meter, 5 pins, pitch 1mm |
