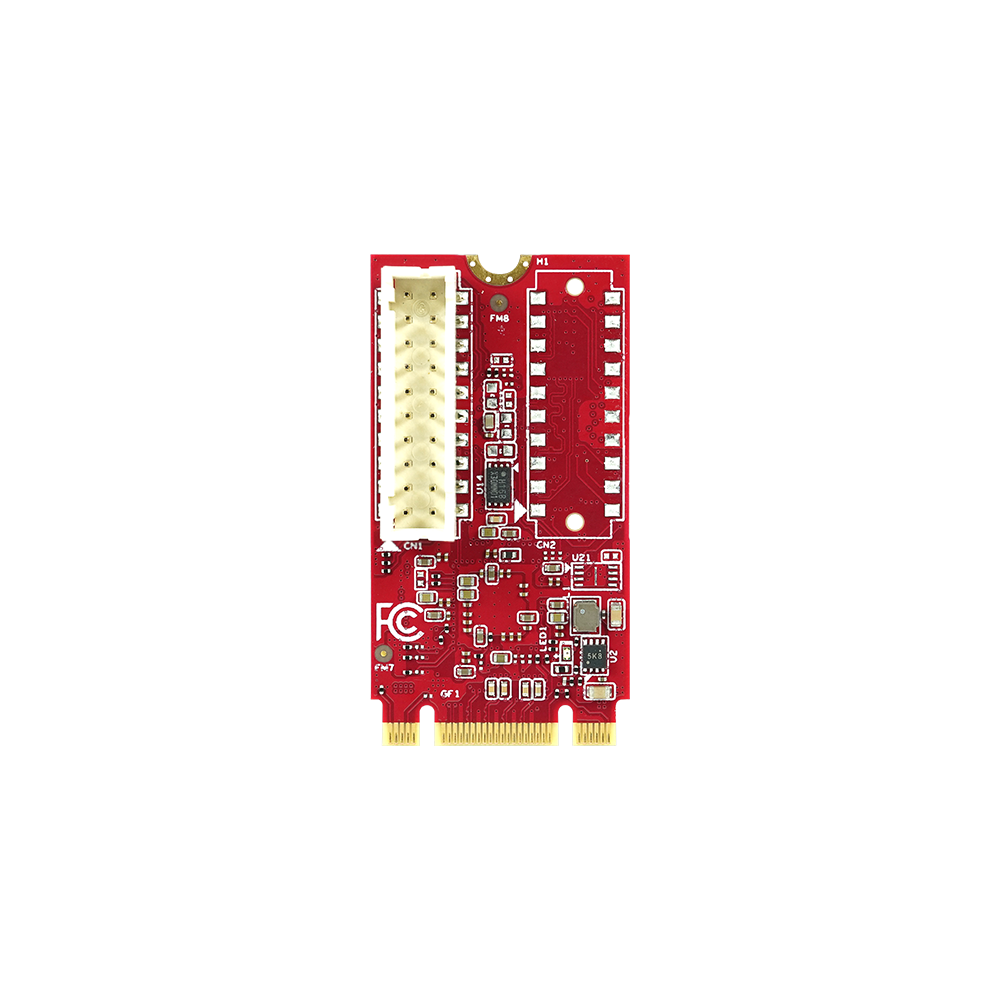

EGPL-G102

제품 특징
  • Single isolated GbE LAN port
  • Complies with EN61000-4-5 2kV surge protection
  • Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2kV HiPOT protection
  • Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
  • Flexible daughter board with cable to fit into different system
  • Industrial temperature -40 ºC to 85 ºC
  • 30μ” golden finger, 3-year warranty
  • Industrial design, manufactured in Innodisk Taiwan
주요 기술:
애플리케이션:
규격 주문 정보 관련 리소스 문의에 추가

규격:

Module NameEGPL-G102
Module TypeM.2 to single isolated GbE LAN module
FunctionLAN
Form FactorM.2 2242-B-M
Input I/FPCI Express 2.1 x 1
Output I/FSingle GbE LAN
Output connectorRJ45 x 1
Power Consumption2.22W (3.3V x 675mA)
Dimensions (W x L x H/mm)Main board: 22 x 42 x 9.15
Daughter board: 50 x 28 x 19.37
TemperatureOperation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C
Storage: -55°C ~ +95°C
EnvironmentVibration: 5G @7~2000Hz
Shock: 50G @ 0.5ms
NotesPlease download driver from MyInnodisk website.
Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64 bit), 10(32/64bit)
Linux: kernel 2.4 series, 2.6.x and 3.x version.

주문 정보:

P/N Description
EGPL-G102-C1 (Terminal mounting hole, Standard Temp.)
EGPL-G102-W1 (Terminal mounting hole , Wide Temp.)
