mPCIe to Dual Isolated RS-422 and RS-485 Module
EMP2-X4S2
Provides
- 4800bps to 3Mbps serial data rate
Features
- PCI Express base spec Rev. 2.0 compliant
- Compatible with 16C550 and 256-byte FIFOs
- Supports port-to-computer isolation
- Termination resistor by dip switch setting
- Complies with 2.5kV HiPOT protection, EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Operating temperature from -40°C to 85°C

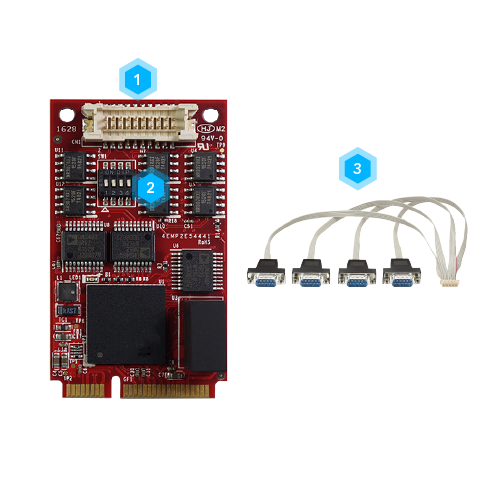

PRODUCT DETAILS AT A GLANCE

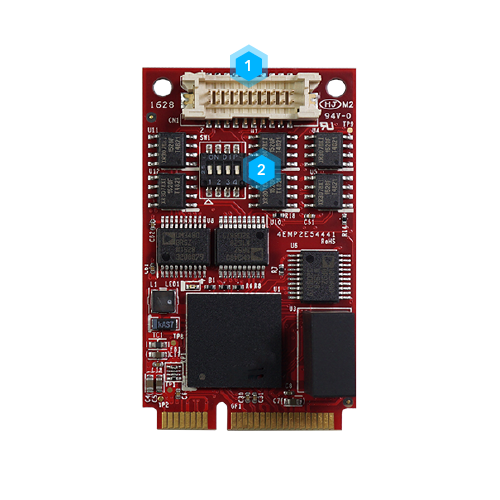

- 1Connector Port 1, 2, 3, 4
- 2DIP Switch for Termination Resistor

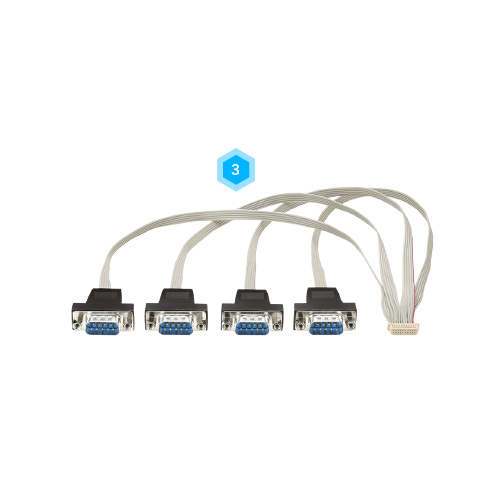

- 325cm DB9 Cable
The Innodisk EMP2-X4S2 is a specialized mPCIe expansion module designed for demanding industrial applications. The module features two isolated serial communication ports supporting both RS-422 and RS-485 protocols, enabling reliable high-speed data transmission. Built to be extra durable, it incorporates robust port-to-computer isolation and meets stringent safety standards, including IEC 60950-1:2005 + A1: 2009 + A2:2013 with 2.5kV HiPOT protection. These safety features make the EMP2-X4S2 perfect for use in tough industrial environments where dependable operation and clean signal transmission are essential.
RELIABLE DATA TRANSMISSION
Delivers serial data speeds from 4800 bps up to 3 Mbps, with built-in 256-byte FIFOs to ensure smooth, uninterrupted data flow in mission-critical applications.
BUILT FOR HARSH ENVIRONMENTS
Complies with IEC 60950-1:2005 + A1: 2009 + A2:2013 2.5kV HiPOT and EN61000-4-2 standards, featuring protection and operating reliably in temperatures ranging from -40°C to 85°C.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
SMART AUTOMATION
Optimizes machine-to-machine communication and streamlines factory automation processes.
TRANSPORTATION
Ensures reliable data transmission for vehicle monitoring and fleet management systems.
HEALTHCARE
Supports secure and efficient communication for medical devices in critical environments.
SMART CITY
Enhances connectivity and functionality for public safety systems and urban infrastructure management
SPECIFICATIONS
| Model Name | EMP2-X4S2 |
|---|---|
| Module Type | mPCIe to Dual Isolated RS-422 & RS-485 Module |
| Form Factor | mPCIe |
| Function | Serial |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | RS-232, RS-485 |
| Output Port | 4 |
| Output Connector | DB-9 |
| Max. Power Consumption | 0.58W (3.3V x 175mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 12.55 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32 bit), 7 (32 / 64 bit), 8 / 8.1 (32 / 64 bit), 10, WES7, CE7.0 Linux : Kernel 2.6.x and above. |
| Warranty | 3 Years |
| Notes | Innodisk can provide Linux source for modification. |
ORDER INFORMATION
| P/N | Description |
| EMP2-X4S2-W1 | mPCIe to Dual Isolated RS-422 & RS-485 Module / Wide Temperature |
