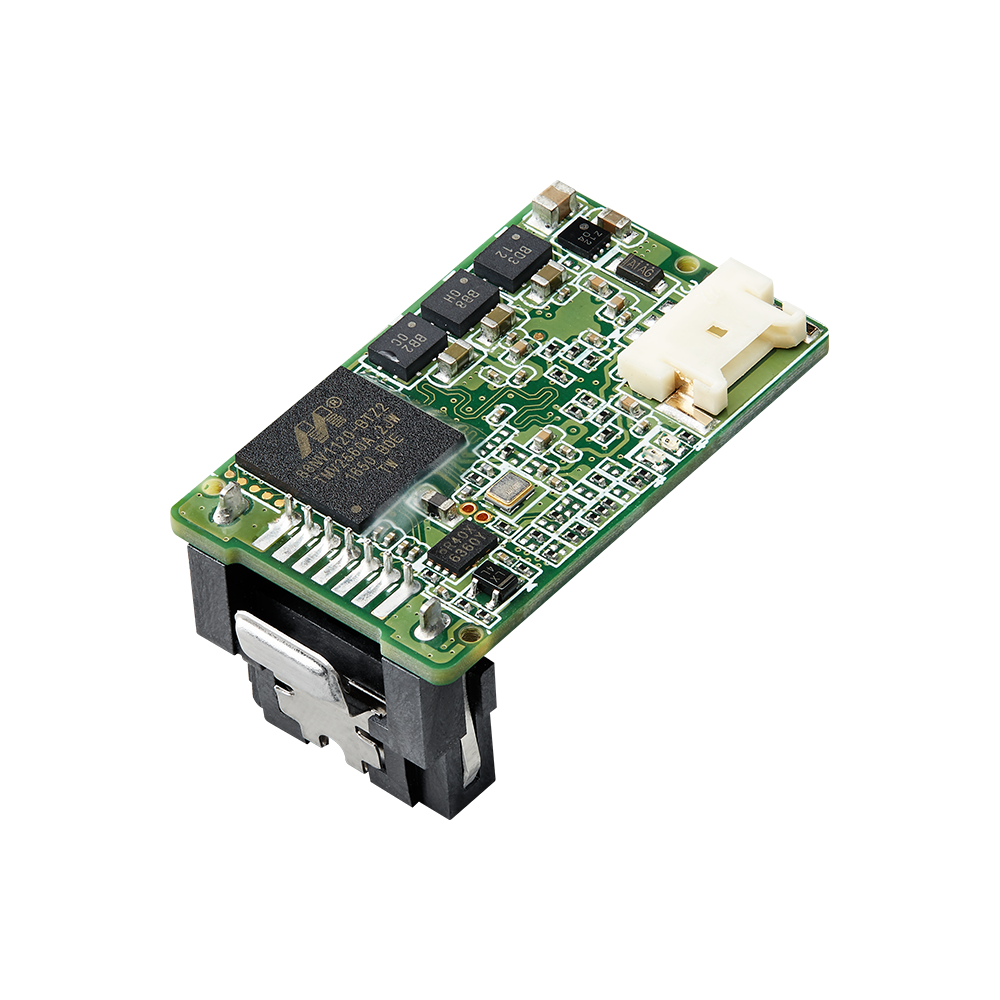

SATADOM-SH 3SE4

Product Features
  • SATA III solution for industrial field
  • Exclusive L³ architecture
  • DRAM-less, 100% data integrity
  • High IOPS to reduce boot up timing
  • Designed with hardware LDPC ECC engine
  • Support Pin7/Pin 8 power supply
Featured Technologies:
Application:
Overview Specs Order Information Related Resource +ADD TO INQUIRY

Overview:

Innodisk SATADOM-SH 3SE4 is characterized by L³ architecture with Marvell NAND controller and SLC NAND Flash. Innodisk’s exclusive L³ architecture is L² architecture multiplied LDPC (Low Density Parity Check). L² (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide excellent performance and prolong lifespan with exceptional reliability.

Innodisk SATADOM-SH 3SE4 is designed for industrial field, and supports several standard features, including TRIM, NCQ, and S.M.A.R.T. In addition, Innodisk’s exclusive industrial-oriented firmware provides a flexible customization service, making it perfect for a variety of industrial applications.

The innovative Pin8 uses the SATA connector itself as a power supply to drive the device without external cables. It could be connected directly to the SATA on-board socket on customer’s system without additional power cable. Besides, the booting time for operation and the power consumption is less than hard disk drive (HDD), and can work under harsh environment compile with ATA protocol, no additional drives are required, and the SSD can be configured as a boot device or data storage device.

Specifications:

Model NameSATADOM-SH 3SE4
InterfaceSATA III 6.0 Gb/s
Flash TypeSLC
TypeHorizontal
Capacity8GB~32GB
Sequential R/W (MB/sec, max.)520/260
Max. Power Consumption1.58W (5V x 315mA )
Max. Channels2
Thermal SensorY
Pin 8 PowerY
Pin 7 PowerY
S.M.A.R.T.Y
ATA SecurityY
Dimension (WxLxH/mm)31.59 x 18 x 15.2
Vibration20G@7~2000Hz
Shock[email protected]
MTBF>3 million hours
Storage Temperature-55°C ~ +95°C
Operation TemperatureStandard Grade: 0°C ~ +70°C;
Industrial Grade: -40°C ~ +85°C

Order Information:

Operation Temp. 8GB 16GB 32GB
Standard Grade (0°C ~ +70°C) DESSH-08GM41SCADB* DESSH-16GM41SCADB* DESSH-32GM41SCADB*
Industrial Grade (-40°C ~ +85°C) DESSH-08GM41SWADB* DESSH-16GM41SWADB* DESSH-32GM41SWADB*

*=A-> Pin 8+ power cable
*=B-> Pin 8+ Pin 7
