LAN
M.2 2280 to Four GbE LAN Module
EGPL-G401
Powered by
- Intel i350 controller
Features
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 500V HiPOT protection
- Compact 1 x 4 RJ45 board, supports PCIe low-profile bracket
- Micro coaxial cable for flexible cable route and better signal quality
- Optional terminal mounting hole or bracket for daughter board
- 30µ” golden finger, 3-year warranty
- Industrial design, manufactured in Innodisk Taiwan

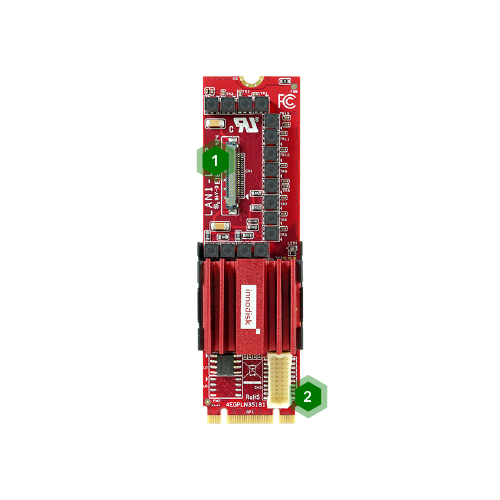

PRODUCT DETAILS AT A GLANCE
- 1LAN Cable Connector
- 2LED Signal Connector
The EGPL-G401 features the Intel i350 controller, supporting four GbE LAN ports with a compact 1 x 4 RJ45 board and PCIe low-profile bracket compatibility. Designed for flexible routing and enhanced signal quality, it utilizes micro coaxial cables and offers optional terminal mounting holes or brackets for daughterboard installation. It complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 500V HiPOT protection standards and operates with industrial-grade durability. Backed by a 3-year warranty, the EGPL-G401 is engineered and manufactured in Innodisk Taiwan for robust performance in demanding environments.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EGPL-G401 |
|---|---|
| Module Type | M.2 2280 to Four GbE LAN Module |
| Form Factor | M.2 2280 B+M Key |
| Function | LAN |
| Input I/F | PCI Express 2.1 x2 |
| Output I/F | GbE LAN |
| Output Port | 4 |
| Output Connector | RJ45 |
| Max. Power Consumption | 3.8W (3.3V, 1151mA) |
| Dimension (W x L x H/mm) | Main board: 22 x 80 x 15.3 Daughter board: 41.9 x 64.27 x 21 |
| Temperature | Operation : 0°C ~ 55°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32bit), 7 / 8 / 8.1 / 10 (32 / 64bit), and above version Linux : Kernel 2.4 series, 2.6.x, 3.x version and above |
| Warranty | 3 Years |
| Notes | Please download driver from Intel official website. |
ORDER INFORMATION
P/N | Description |
EGPL-G401-C1 | M.2 2280 to Four GbE LAN Module, Mounting Hole |
EGPL-G401-C2 | M.2 2280 to Four GbE LAN Module, PCIe Low-profile Bracket |
| EGPL-G401-C3 | M.2 2280 to Four GbE LAN Module, PCIe Standard Bracket |
