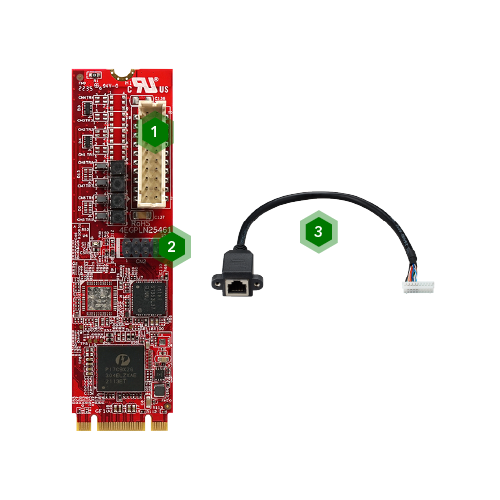

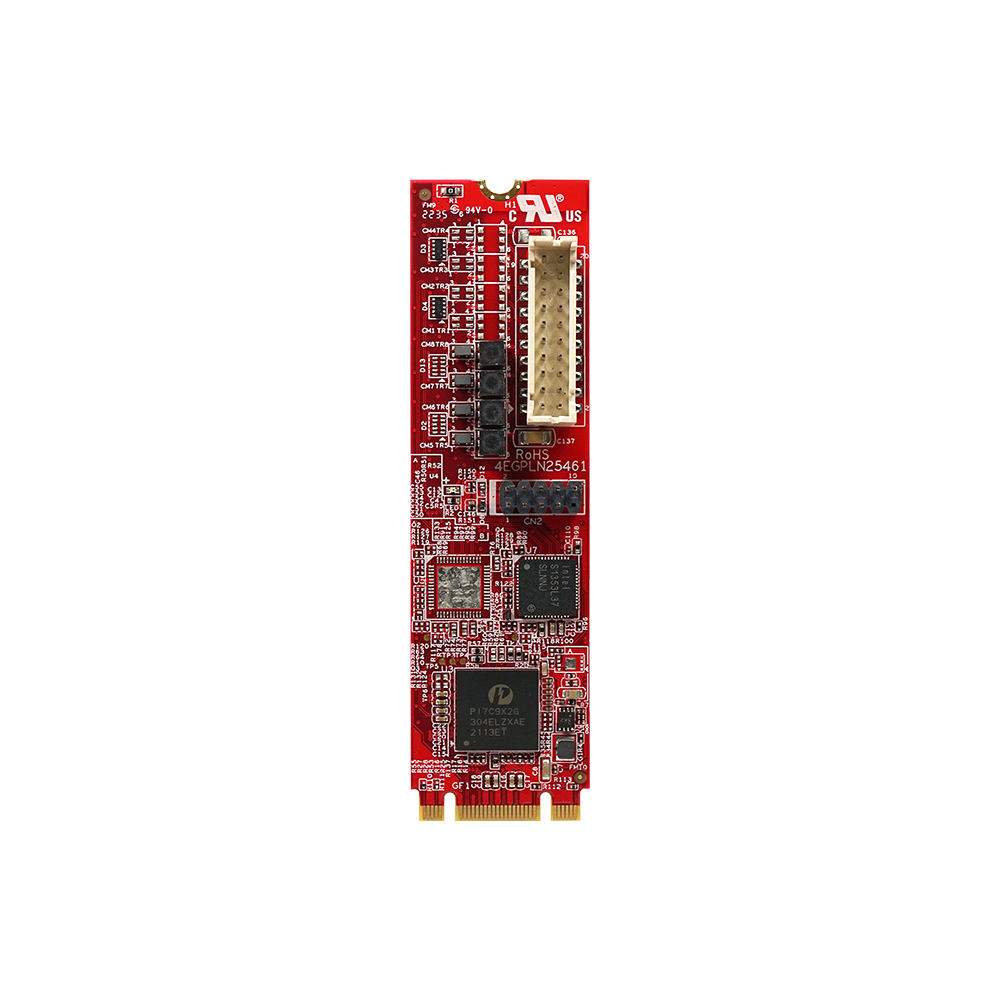

EGPL-21N1

Product Features

Single 2.5GbE LAN ports
Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Transformer on PCB for flexible cable design
External LED indicator pin for speed 10/100/1000
Optional Industrial Temperature (-40°C to +85°C) support
30μ” golden finger, 3-year warranty
Industrial design, manufactured in innodisk Taiwan

Featured Technologies:

Application:

Specs Order Information Related Resource +ADD TO INQUIRY

Specifications:

Module Name	EGPL-21N1
Module Type	M.2 to Single 2.5GbE LAN Module
Form Factor	M.2 2280
Function	2.5GbE LAN
Input I/F	PCI Express 2.1 x 2
Output I/F	Single 2.5GbE LAN
Output connector	RJ45 x 1
Power Consumption	MAX: 1.937W (3.3V, 587mA)
Dimensions (W x L x H/mm)	22 x 80 x 9
Temperature	Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from Intel official website. Windows: 10 (64bit), Linux (igc): kernel 5.x version

Order Information:

P/N	Description
EGPL-21N1-C1	Standard Temp.
EGPL-21N1-W1	Wide Temp.
