Serial
mPCIe to Dual Isolated RS-232 Module
EMP2-X2S1
Features
- PCI-Express specification Rev. 2.0 compliant
- 4800 to 921.6Kbps serial data rate. 256-byte FIFOs
- Full RS232 functions with DB9 connector
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Support port-to-computer isolation, complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT protection
- Industrial temperature (-40ºC to 85ºC) operation
- 30μ” golden finger, 3 years warranty

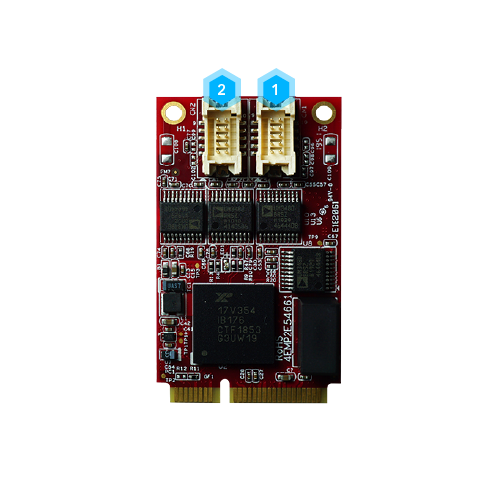

PRODUCT DETAILS AT A GLANCE
- 1Connector Port 1
- 2Connector Port 2
The Innodisk EMP2-X2S1 is an mPCIe to two isolated RS-232 module that provides a reliable and robust solution for expanding serial connectivity in embedded applications. This module is compliant with the PCI Express 2.0 specification and supports data rates of up to 921.6 Kbps. Each RS-232 port is isolated to protect against ground loops and other electrical noise, making the EMP2-X2S1 ideal for use in harsh industrial environments.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
HEALTHCARE
We integrate AI into healthcare with advanced solutions, meeting strict medical demands.
SPECIFICATIONS
| Model Name | EMP2-X2S1 |
|---|---|
| Module Type | mPCIe to Dual Isolated RS-232 Module |
| Form Factor | mPCIe |
| Function | Serial |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | RS-232 |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 0.58W (3.3V x 175mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 12.9 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32 bit), 7 (32 / 64 bit), 8 / 8.1 (32 / 64 bit), 10, and above version, WES7, CE7.0 Linux : Kernel 2.6.x and above |
| Warranty | 3 Years |
| Notes | Innodisk can provide Linux source for modification. |
ORDER INFORMATION
| P/N | Description |
| EMP2-X2S1-W1 | mPCIe to Dual Isolated RS-232 Module / Wide Temperature |
