Serial
mPCIe to Dual RS232 Module
EMP2-X203
Features
- Mini PCI-Express specification Rev. 2.0 compliant
- 4800 to 921.6Kbps serial data rate. 16550 compatible. 256-byte FIFOs
- Industrial temperature (-40ºC to 85ºC) operation
- Flexible design with DB-9 connectors and cable
- ESD up to 15KV (Electrostatic Discharge) protection circuit to prevent system damage
- Supports CTS / RTS hardware flow control
- 30μ” golden finger, 3 years warranty
- Industrial design, manufactured in Innodisk Taiwan

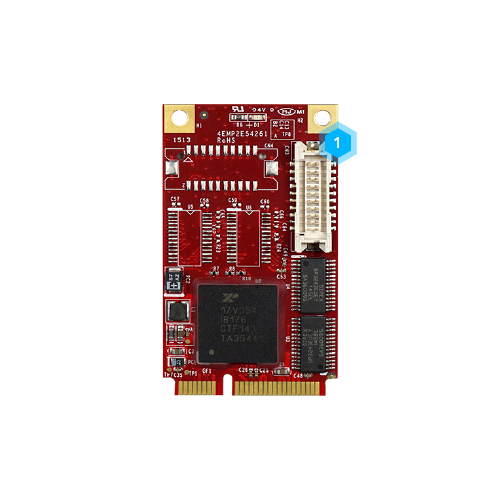

PRODUCT DETAILS AT A GLANCE
- 1Connector Port 1, 2
BORN FOR SUPERIOR PERFORMANCE
The EMP2-X203 is a Mini PCIe 2.0 module supporting serial data rates up to 921.6 Kbps with 16550 compatibility and 256-byte FIFOs. It includes DB-9 connectors, 15kV ESD protection, and CTS / RTS flow control. Designed for -40°C to 85°C operation, it features a 30μ" golden finger and a 3-year warranty. Manufactured by Innodisk Taiwan.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EMP2-X203 |
|---|---|
| Module Type | mPCIe to Dual RS-232 Module |
| Form Factor | mPCIe |
| Function | Serial |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | RS-232 |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 0.45W (3.3V x 135mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 6.7 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32 bit), 7 (32 / 64 bit), 8 / 8.1 (32 / 64 bit), 10, and above version, WES7, CE7.0 Linux : Kernel 2.6.x and above |
| Warranty | 3 Years |
| Notes | Innodisk can provide Linux source for modification. |
ORDER INFORMATION
| P/N | Description |
| EMP2-X203-W1 | mPCIe to Dual RS-232 Module / Wide Temperature |
