mPCIe to Dual RS422 / 485 Module
EMP2-X202
Features
- Mini PCIe 2.0 compliant. RS-422 / 485 module card configurable by switch. Supports 485HD (Half Duplex) and 485FD (Full Duplex)
- 4800 to 3Mbps serial data rate. 16C550 compatible. 256-byte FIFOs
- Industrial temperature (-40ºC to 85ºC) operation
- Flexible design with DB-9 connectors and cable
- Termination Resistor by jumper setting
- ESD up to 15KV (Electrostatic Discharge) protection circuit to prevent system damage

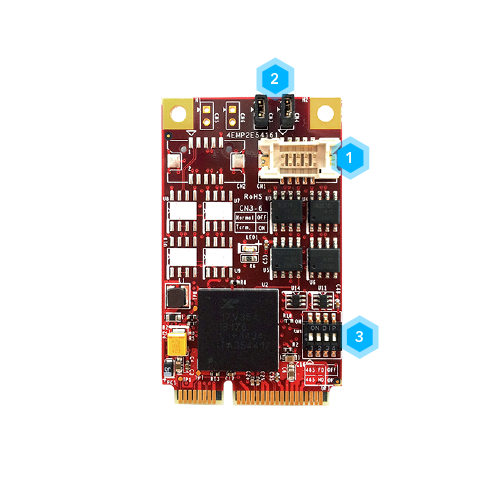

PRODUCT DETAILS AT A GLANCE
- 1Connector Port 1, 2
- 2Jumpers for Termination Resistor Port 1, 2
- 3RS-422 / 485 Switch
BORN FOR SUPERIOR PERFORMANCE
The EMP2-X202 is a Mini PCIe 2.0 RS-422 / 485 module supporting 485HD and 485FD modes. It offers 4800 bps to 3 Mbps data rates, 15kV ESD protection, and operates in -40°C to 85°C. Features include DB-9 connectors, jumper-configurable resistors, and a 30μ" golden finger with a 3-year warranty. Designed by Innodisk Taiwan.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Improves efficiency in automated systems with long-lasting performance.
SPECIFICATIONS
| Model Name | EMP2-X202 |
|---|---|
| Module Type | mPCIe to Dual RS422 / 485 Module |
| Form Factor | mPCIe |
| Function | Serial |
| Input I/F | PCI Express 2.0 x1 |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 0.33W (3.3V x 100mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 8.25 |
| Temperature | Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32 bit), 7 (32 / 64 bit), 8 / 8.1 (32 / 64 bit), 10, and above version, WES7, CE7.0 Linux : Kernel 2.6.x and above |
| Warranty | 3 Years |
| Notes | Please download driver from MyInnodisk website. |
ORDER INFORMATION
| P/N | Description |
| EMP2-X202-W1 | mPCIe to Dual x RS-422 / 485 Module / Wide Temperature |
